Page 45

EVS Device Installation

LS10062-001-SK-E

4-23

4.5.8

Backup Battery for EVS-50W

The following steps explain how to connect the batteries (refer to Figure 4-24):

1. Connect the black wire of the battery harness to the (-) side of the battery #2.

2. Connect the jumper wire provided form the positive (+) side of battery #2 to the

negative side of battery #1.

3. Connect the red wire from the battery harness to the positive (+) side of battery

#1.

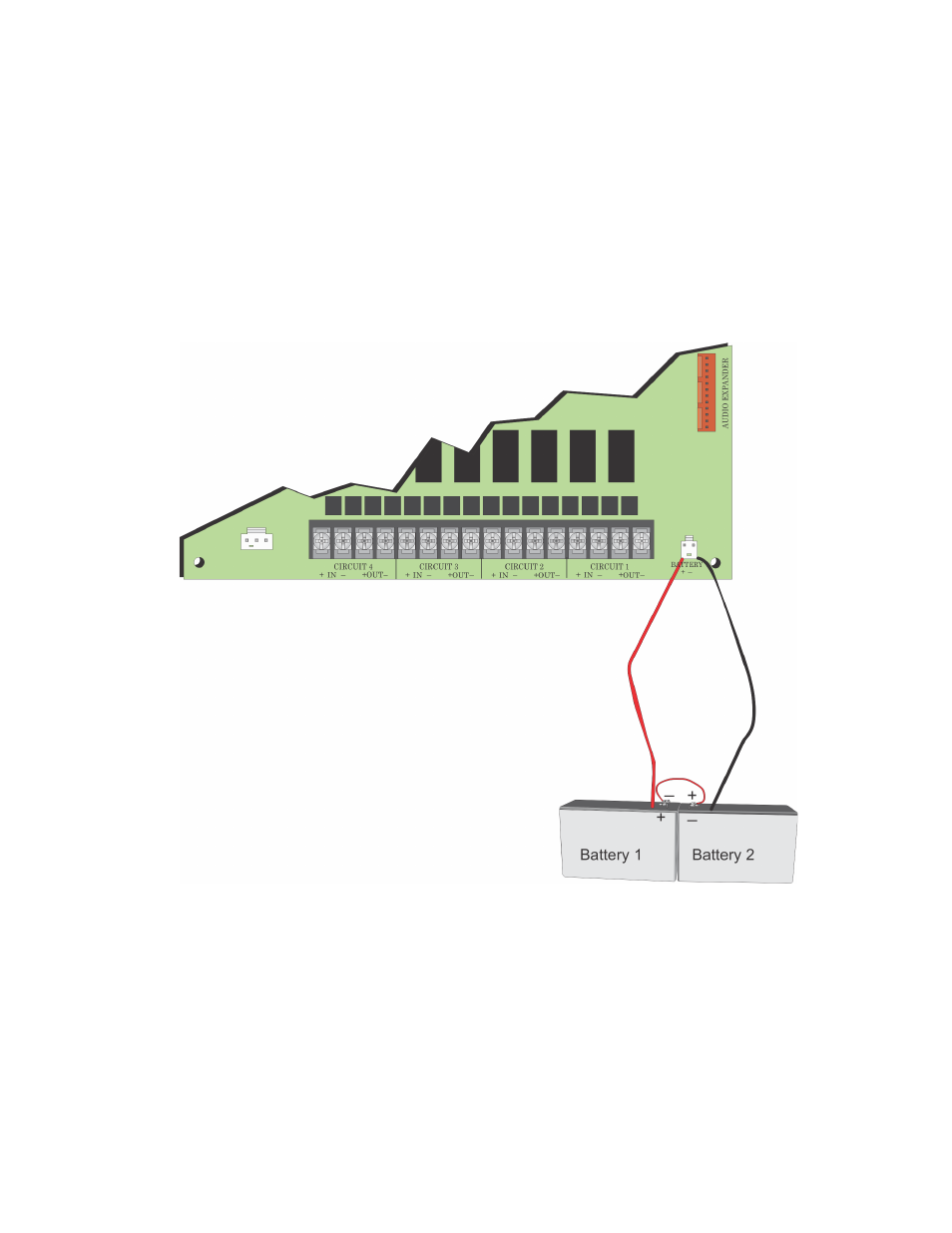

Figure 4-24 Battery Connections to the EVS-50W
