Section 4
Add-on Fire Communicator Application
The 5104 can be used to communicate the status of a larger or pre-existing (referred to as Host panel
in this manual) fire control system that does not have a digital communicator. To configure the 5104 as
an add-on communicator wire it as shown in Figure 4-1.

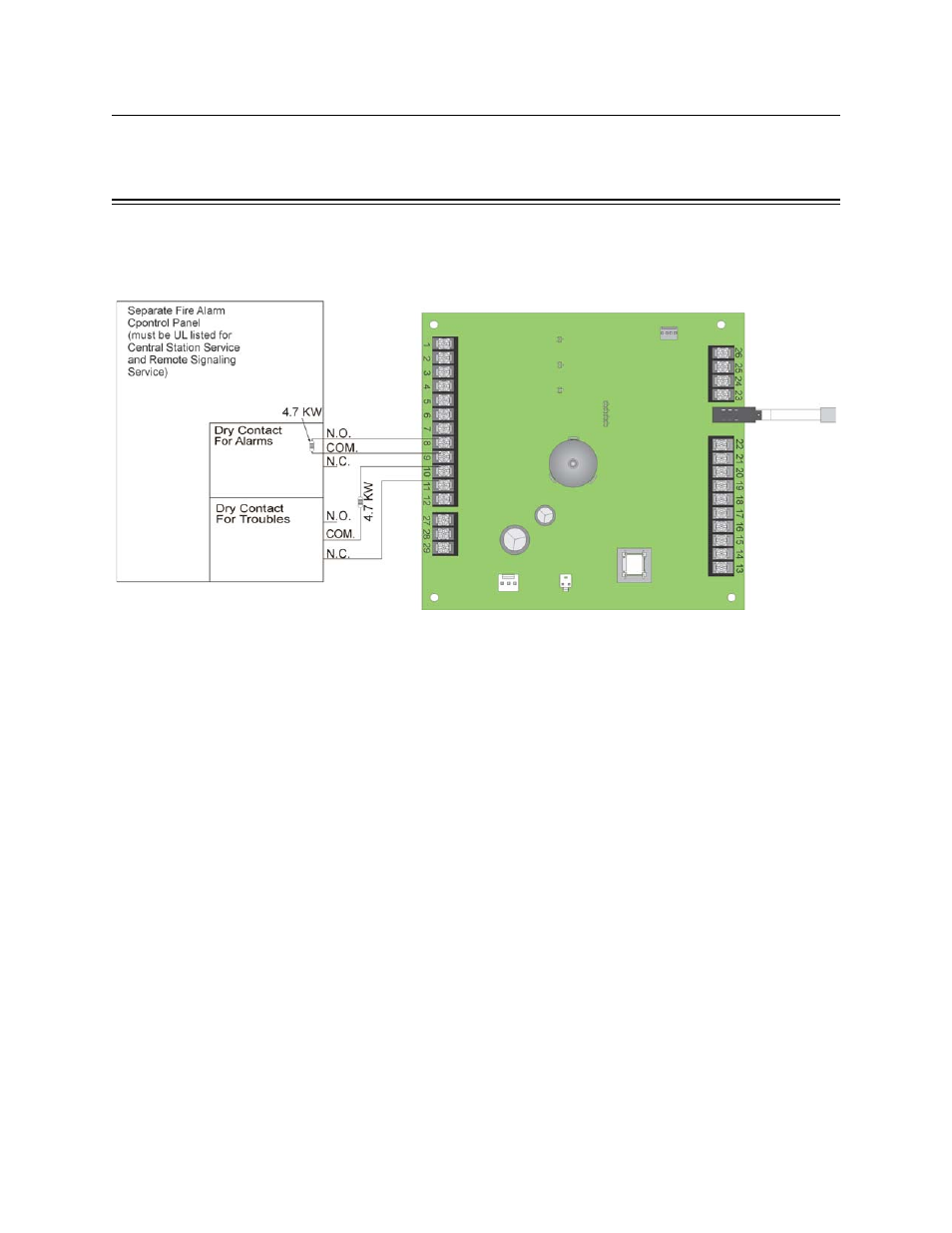

Figure 4-1 5104 Add-on Communicator Configuration Using 5104 Transformer for Power
Note: If power is supplied by the 5104 transformer, the host control panel must not send the 5104 a loss
of AC signal.
If power is supplied by the 5104 transformer, do not select the Add-on Dialer option in program-
ming.
Configure the zone inputs, phone lines and annunciator as shown in Section 3 of this manual.
