3.10.3 Four-Wire Smoke Detector Connection

4-wire smoke detectors must use a power supervision module. Connect four-wire smoke detectors as shown in
Figure 3-8.

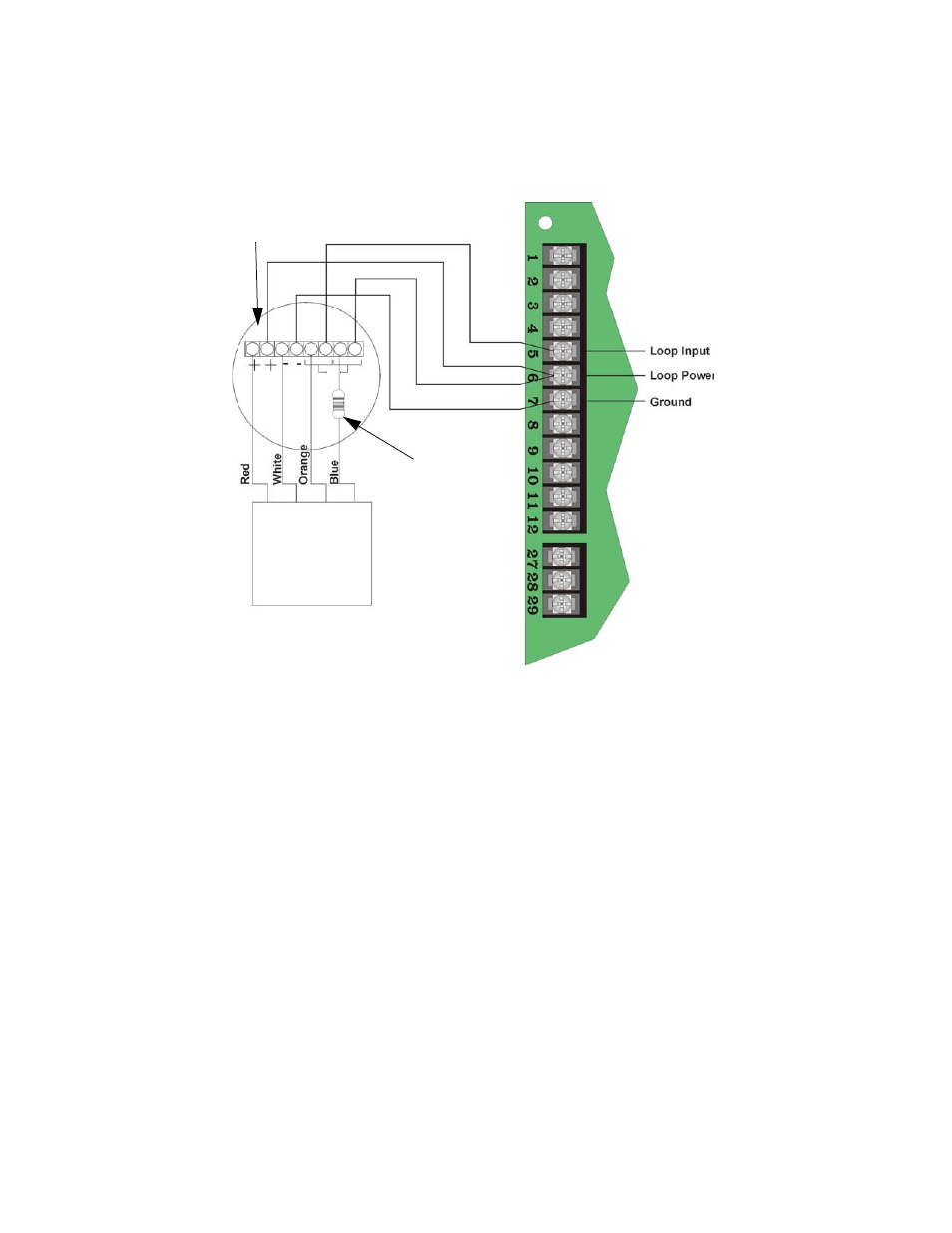

Figure 3-8 4-wire Smoke Detector Connections

Model 160150

Supervision

Module

Model 7628
EOL Resistor

ESL 449CT
