Model 5104B Installation Manual 151053-L8
3-14
3.11 Supplemental Notification Appliance Installation
The Supplemental notification circuit supplies a DC output that can be used to power a DC audible device during
an alarm condition. Pressing the reset / silence switch will silence the output. Refer to section 6.2.7, Step 14, to
program the notification circuit’s supervision properties.
3.11.1 Non-Supervised Notification Appliance Wiring

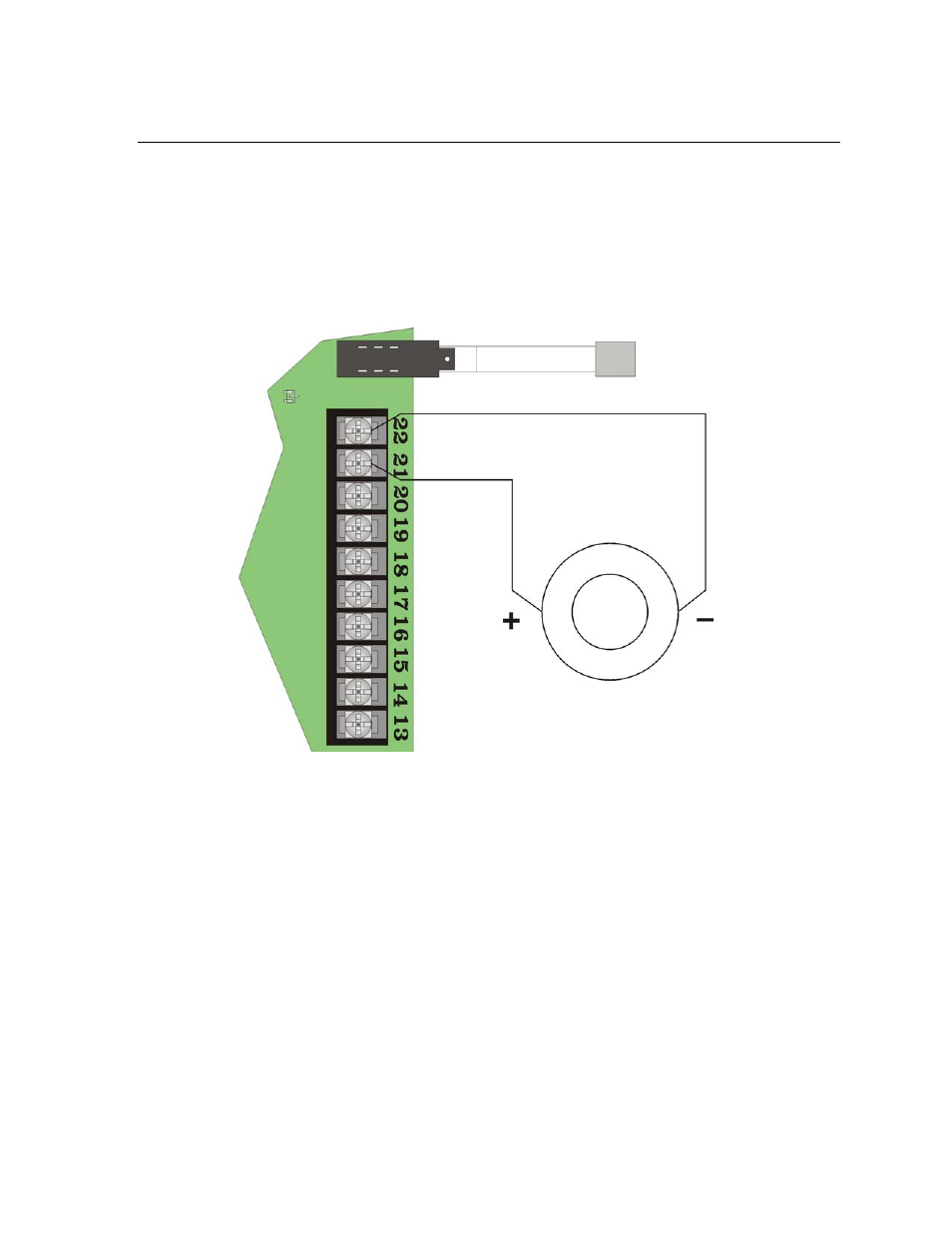

Figure 3-9 illustrates how to wire a non-supervised notification device to the control panel.
Figure 3-9 Non-Supervised Alarm Bell Wiring
Note: Polarities shown in Figure 3-9 illustrate the polarity in an alarm condition. Under normal conditions the
polarity of terminals 21 and 22 are reversed.
Note: Per NFPA 72 Requirements the means of silencing a Supervisory Signal or Alarm must be located within
a locked cabinet. To comply, DO NOT install the reset/silence switch extruder or remove the switch knock-
out.
Wheelock
Model MB-G10-12-R
12 VDC Bell
