4 panel description, Panel description -2 – SilentKnight 5104 Digital Alarm Communicator Transmitter 6 Zone User Manual
Page 11
Installation
151053-L8
3-3
3.4
Panel Description
This section describes the 5104 board components, including terminal strips, LEDs, Switches and cable
connectors. See Figure 3-2.

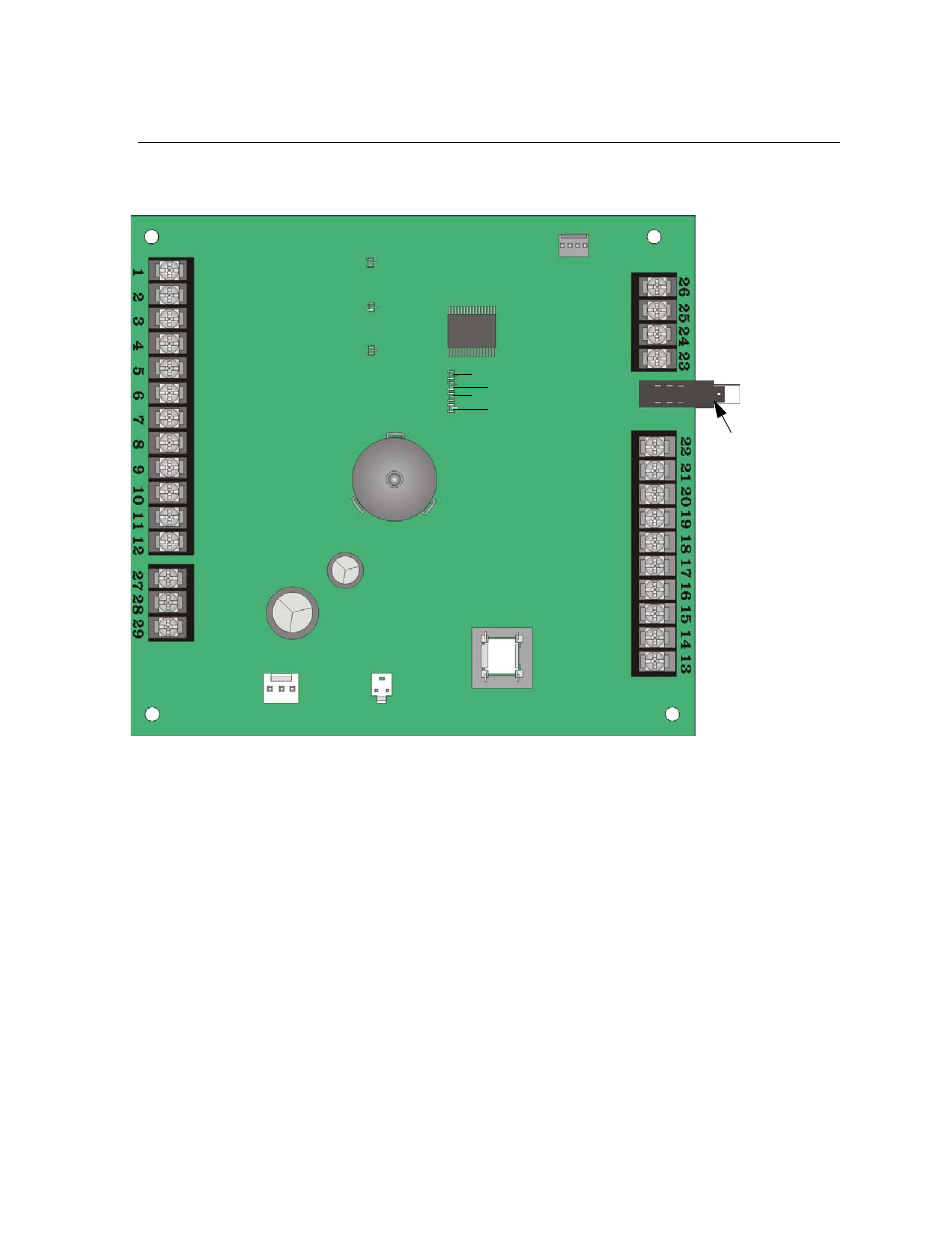

Figure 3-2 5104 Circuit Board
Terminal
Block 1
Terminal
Block 3
Terminal
Block 2
P1
P2
L3
L4
L5
L7
L6
Reset/
Silence
Switch
Terminal
Block 4
P3
L1
L2
