Form I-UDB, P/N 202658 R14, Page 29
1) Call for Heat - The thermostat calls for heat by energizing the “W” terminal. The
control checks to see that the limit switch is closed and the pressure switch is open. If
the limit switch is open, the control responds as defined in the “Abnormal Heat Cycle,
Limit Switch Operation”. If the pressure switch is closed, the control will do four flashes
on the green LED and wait indefinitely for the pressure switch to open. If the pressure
switch is open, the control proceeds to prepurge.
2) Prepurge - The control energizes the venter motor and waits for the pressure
switch to close. If the pressure switch does not close within 30 seconds of the venter
motor energizing, the control will do two flashes on the green LED. The control will
leave the venter motor energized indefinitely as long as the call for heat remains and
the pressure switch is open.
When the pressure switch is proven closed, the control begins the prepurge time. If
flame is present any time while in prepurge, the prepurge time is restarted. If flame
is present long enough to cause lockout, the control responds as defined in “Fault
Modes, Undesired Flame”.
The control runs the venter motor for a 20 second prepurge time, then proceeds to the
ignition trial period.
3) Ignition Trial Period - The control energizes the spark and main gas valve. The
venter remains energized. If flame is sensed during the first 16 seconds, the spark is
de-energized and the control proceeds to heat fan/blower on delay. If flame has not
been sensed during the first 16 seconds, the control de-energizes the spark output
and keeps the gas valve energized for an additional one second flame proving period.
If flame is not present after the flame proving period, the control de-energizes the gas
valve and proceeds with ignition re-tries as specified in “Abnormal Heat Cycle, Ignition
Retry”. If flame is present, the control proceeds to the fan/blower on delay.
4) Fan/Blower On Delay - The control waits for 30 seconds from the time the gas
valve opened and then energizes the fan/blower motor. The gas valve and venter
motor remain energized. The control proceeds to steady heat mode.
This heater is equipped with a direct spark integrated control module (circuit board).
The module monitors the safety devices and controls the operation of the blower and
venter motors and the gas valve between heat cycles.
8.3 Ignition System
Control Status - Green LED Codes
Steady ON ....... Normal Operation, No call for heat
Fast Flash ........ Normal Operation, Call for heat
1 Flash ............. System Lockout, Failed to detect or
sustain flame
2 Flashes ......... Pressure Switch Did Not Close within
30 Seconds of Venter motor
3 Flashes ......... High Limit or Flame Rollout Switch
Open
4 Flashes ......... Pressure switch is closed before venter
motor is energized
Steady OFF ..... Blown Fuse, No Power, or Defective
Board
Flame Status - Yellow LED Codes
Steady ON ....... Flame is sensed
Slow Flash ....... Weak flame (current below 1.0
microamps ±50%)
Fast Flash ........ Undesired Flame (valve open and no
call for heat)

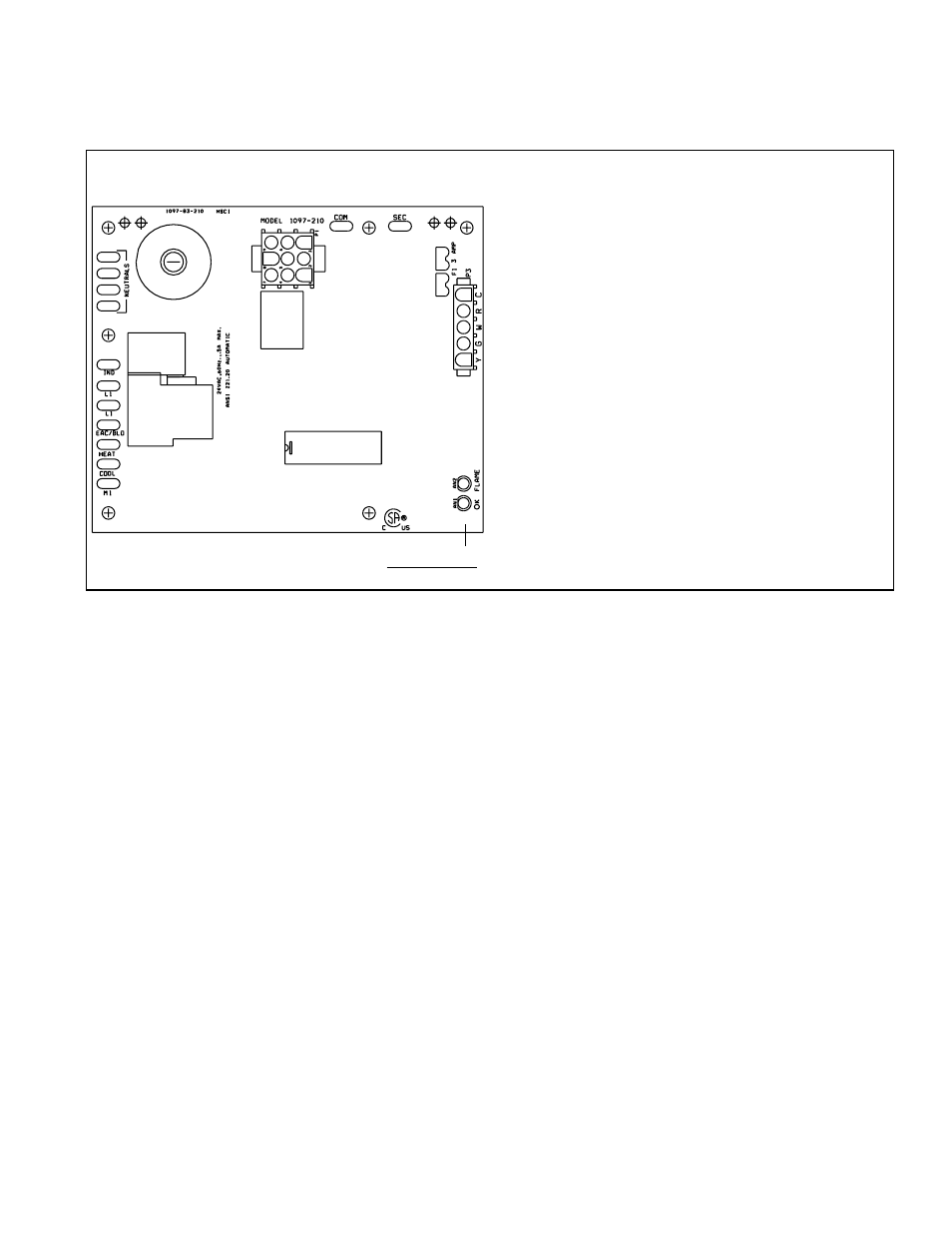

FIGURE 20 – DSI Integrated Control Module (circuit board)
Spark
Transformer
Control
Plug
Fuse
Thermostat
Connections
Status
Lights
x
LED Lights
LED lights are visible through a viewport on Model UDBS. Remove door panel to view LED lights on
Model UDBP.
Normal Heat
Cycle Operating
Sequence
LED lights are visible
through viewport on
Model UDBS. Remove
door panel to view LED
lights on Model UDBP.
