Interlogix NS3500-28T-4S User Manual User Manual
Page 86

86

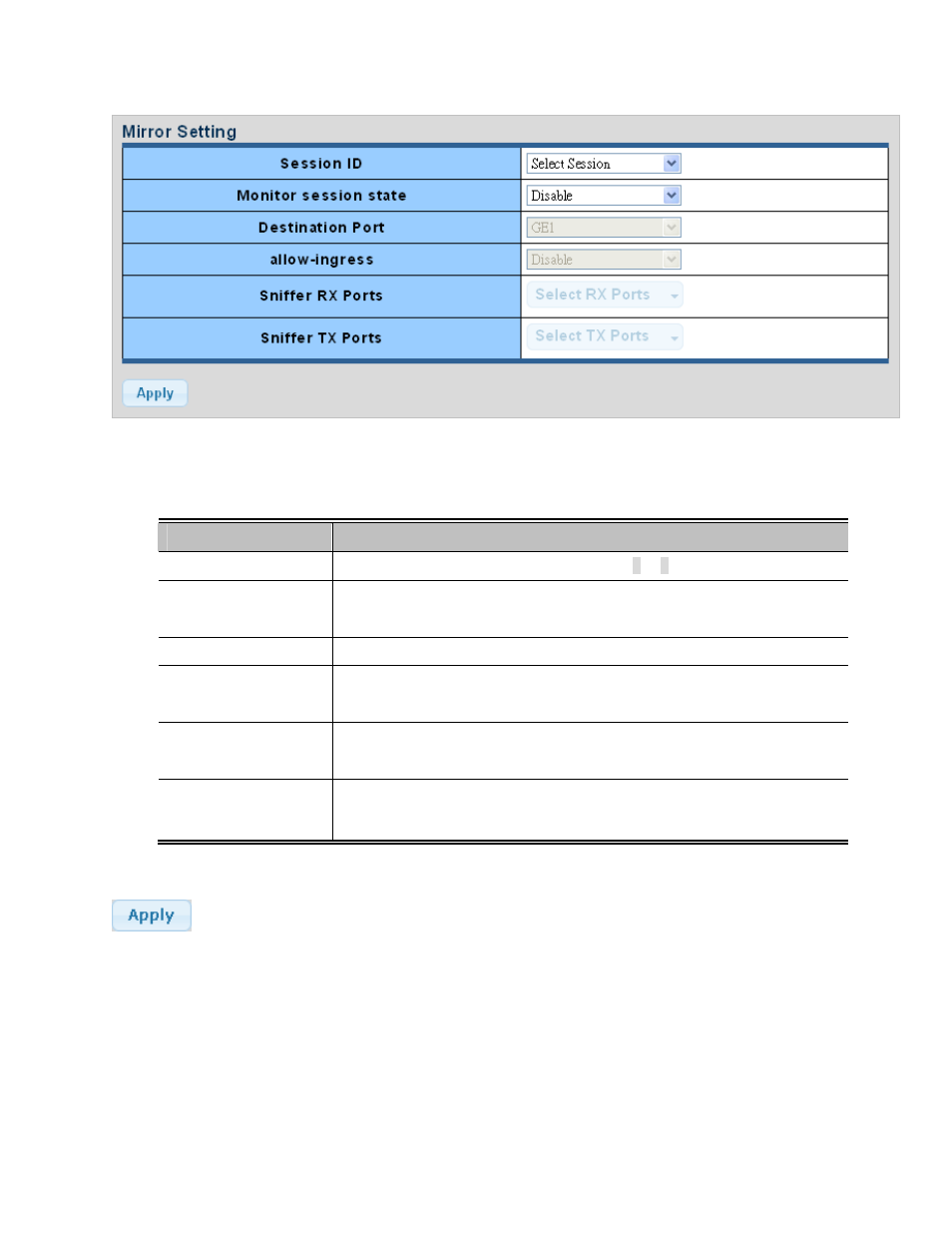

Figure 4-3-9
Port Mirroring Settings Page Screenshot
The page includes the following fields:
Object
Description
Session ID
Set the port mirror session ID. Possible ID are: 1 to 4.
Monitor Session
State
Enable or disable the port mirroring function.
Destination Port
Select the port to mirror destination port.
Allow-ingress
Frames from ports that have either source (rx) or destination (tx) mirroring
enabled are mirrored to this port.
Sniffer TX Ports
Frames transmitted from these ports are mirrored to the mirroring port. Frames
received are not mirrored.
Sniffer RX Ports
Frames received at these ports are mirrored to the mirroring port. Frames
transmitted are not mirrored.
Buttons
: Click to apply changes.
