MED Network Policy
Displays if the network policies packets were transmitted or overloaded.
MED Extended Power
via MDI
Displays if the extended power via MDI packets were transmitted or
overloaded.
802.3 TLVs
Displays if the 802.3 TLVs were transmitted or overloaded.
Optional TLVs
If the LLDP MED extended power via MDI packets were sent, or if they were
overloaded.
MED Inventory
Displays if the mandatory group of TLVs was transmitted or overloaded.
802.1 TLVs
Displays if the 802.1 TLVs were transmitted or overloaded.
4.12.9 LLDP Statistics
Use the LLDP Device Statistics screen to general statistics for LLDP-capable devices attached to the switch, and for
LLDP protocol messages transmitted or received on all local interfaces. The LLDP Global and Port Statistics screens
in
Figure 4-12-17
&
Figure 4-12-18
appear.

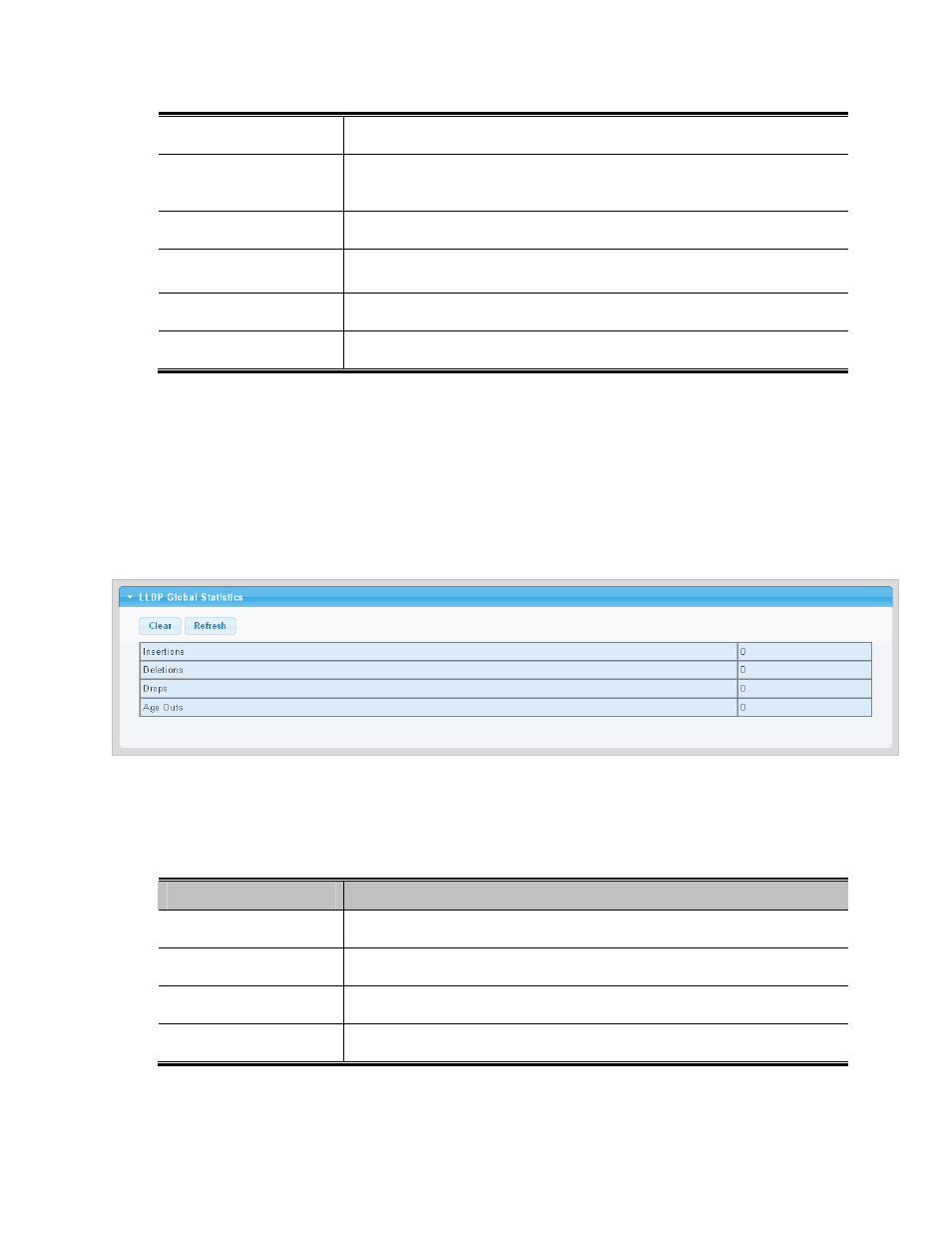

Figure 4-12-17
LLDP Global Statistics Page Screenshot
The page includes the following fields:
Object
Description
Insertions
Shows the number of new entries added since switch reboot.
Deletions
Shows the number of new entries deleted since switch reboot.
Drops
Shows the number of LLDP frames dropped due to that the entry table was full.
Age Outs
Shows the number of entries deleted due to Time-To-Live expiring.
Buttons
