Interlogix NS3500-28T-4S User Manual User Manual
Page 78

78

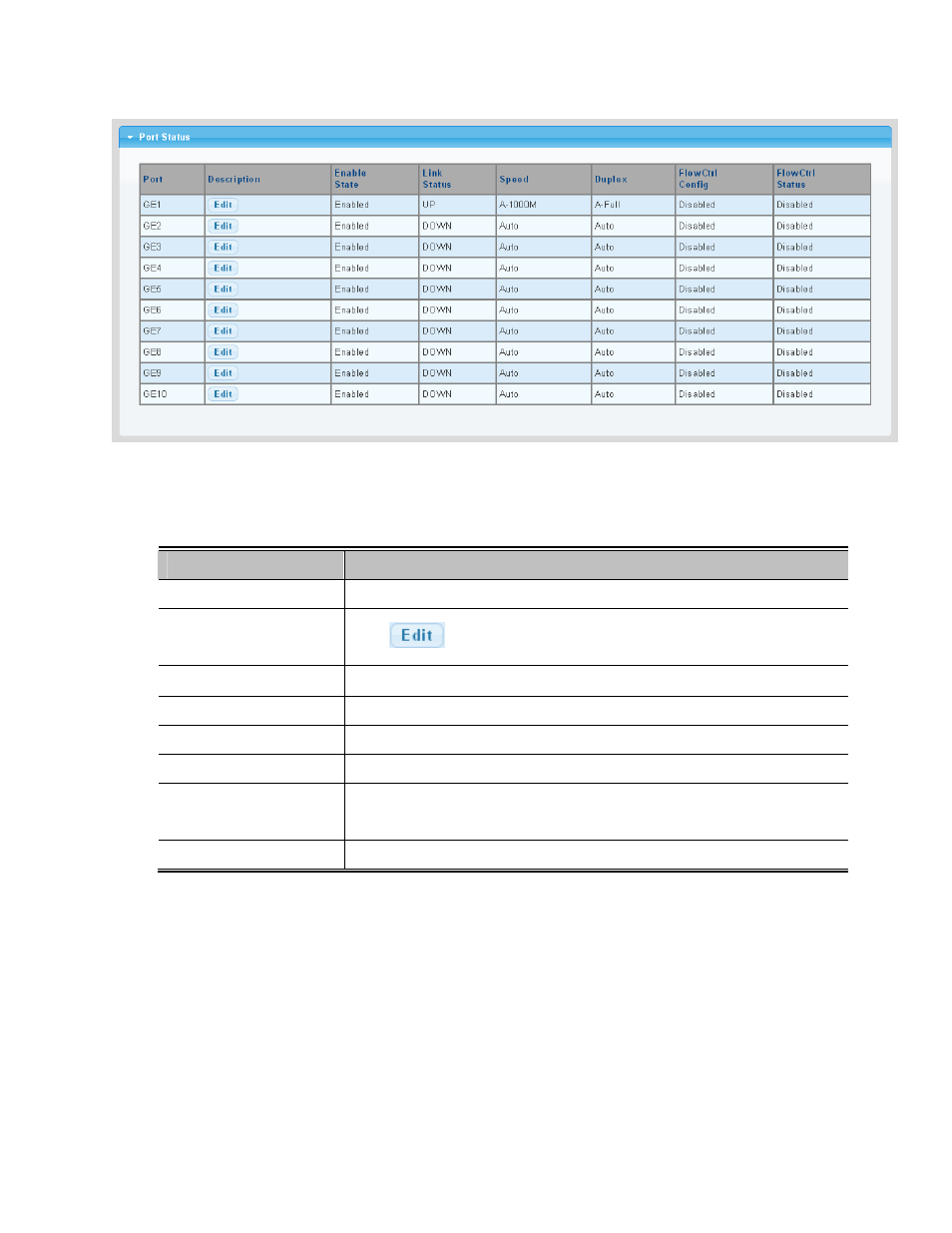

Figure 4-3-2
Port Status Page Screenshot
The page includes the following fields:
Object
Description
Port
This is the logical port number for this row.
Description
Click
to indicate the port name.
Enable State
Display the current port state.
Link Status
Display the current link status.
Speed
Display the current speed status of the port.
Duplex
Display the current duplex status of the port.
Flow Control
Configuration
Display the current flow control configuration of the port.
Flow Control Status
Display the current flow control status of the port.
