IC Realtime 4/8 All Channel 720P Mini 1U HD-AVS DVR - Manual (Page 91)

82

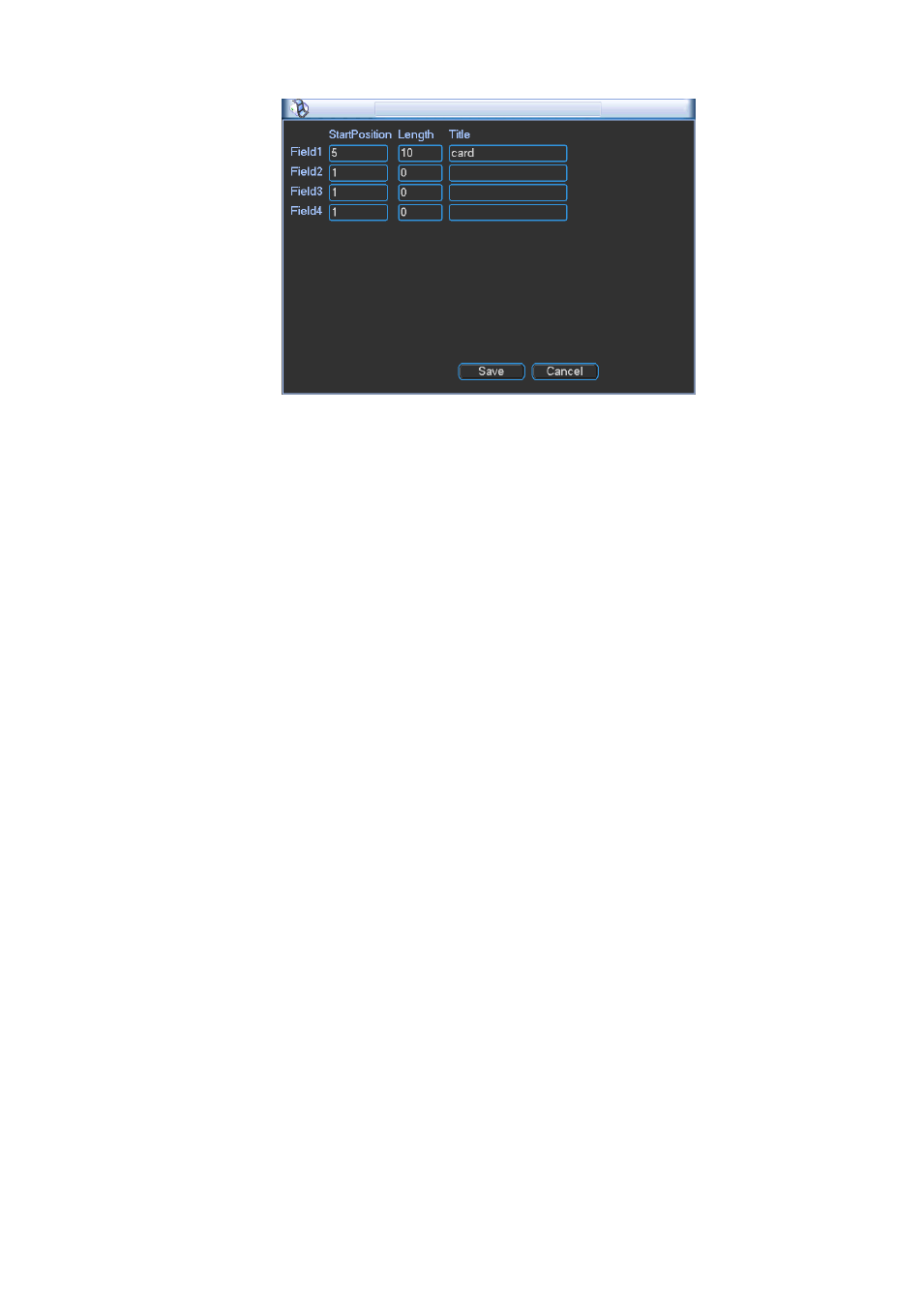

Figure 5-64
5.5.7 Config Backup
The configuration file backup interface is shown as below. See Figure 5-65.
This function allows you to import/export system configuration. You can use this function when there are
several devices need the same setup.
 Export: Please connect the peripheral device first and then go to the following interface. Click
Export button, you can see there is a corresponding “Config_Time” folder. Double click the folder,
you can view some backup files.
 Import: Here you can import the configuration files from the peripheral device to current device. You
need to select a folder first. You can see a dialogue box asking you to select a folder if you are
selecting a file. System pops up a dialogue box if there is no configuration file under current folder.
After successfully import, system needs to reboot to activate new setup.
 Format: Click Format button, system pops up a dialogue box for you to confirm current operation.
System begins format process after you click the OK button.
Note:
 System can not open config backup interface again if there is backup operation in the process.
 System refreshes device when you go to the config backup every time and set current directory as
the root directory of the peripheral device.
 If you go to the configuration backup interface first and then insert the peripheral device, please
click Refresh button to see the newly added device.
