73

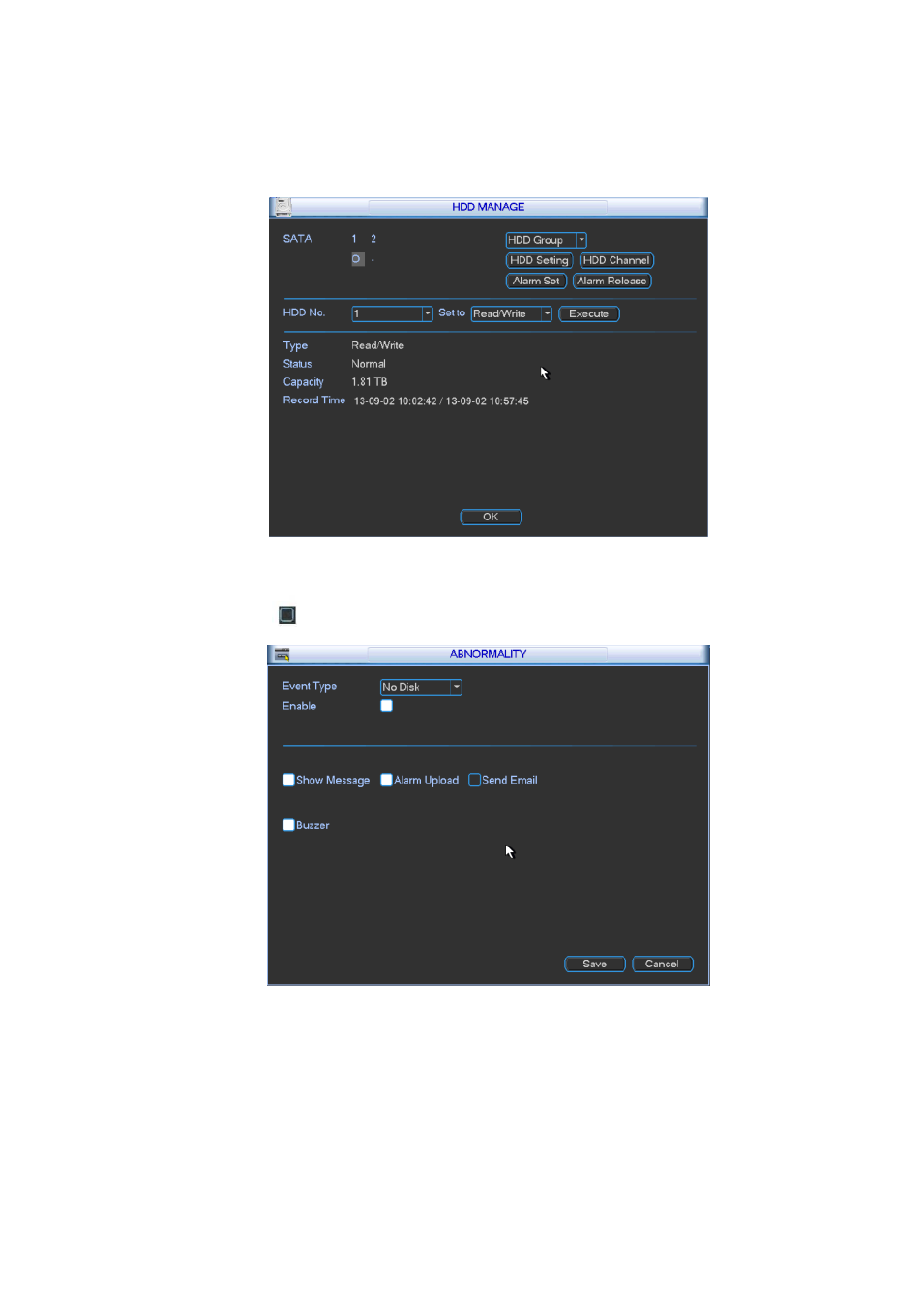

 Alarm set: Click alarm set button, the interface is shown as below. See Figure 5-49. (This interface
is just like the abnormality setup). Please refer to chapter 5.5.2 for detailed information.
 HDD operation: You can select HDD mode from the dropdown list such as read-only or you can
erase all data in the HDD. Please note system needs to reboot to get all the modification activated.
Figure 5-48
Please highlight icon to select the corresponding function.
Figure 5-49
For the HDD group setup operation, please note:
 Each channel
’s records can be stored into the specified HDD Group.
 Each HDD Group is corresponding to several hard disks, while one hard disk is only included in
one HDD Group.
 Each channel is only corresponding with one HDD Group, while one HDD Group can store
records from several channels.
