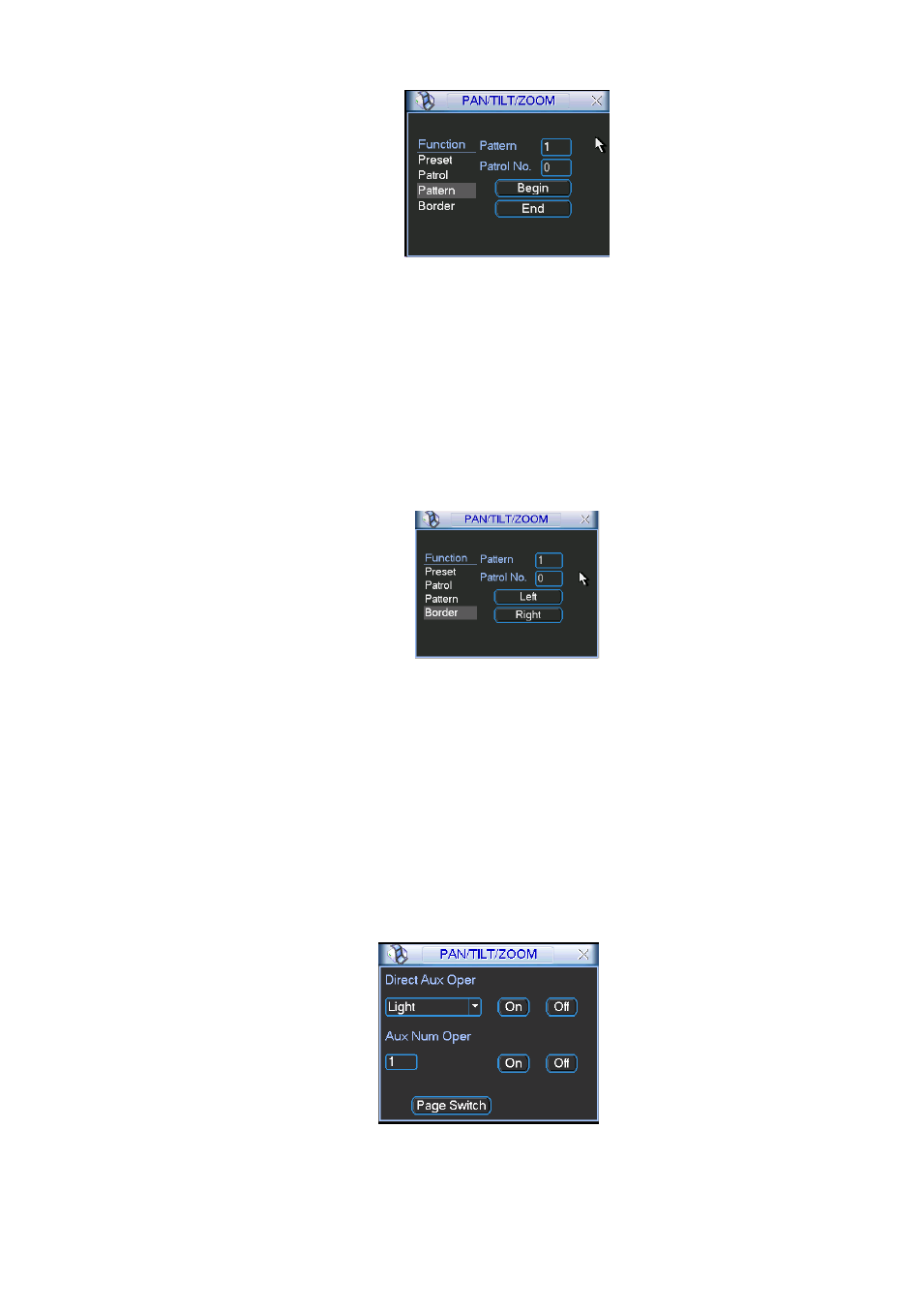

Figure 4-43
4.9.6 Activate Pattern Function
In
X346H346H 346H
Figure 4-39, input mode value in the No. blank, and click pattern button.
4.9.7 Auto Scan Setup
In
X347H347H 347H
Figure 4-38, click border button. The interface is shown as in
X348H348H348H
Figure 4-43.
Please go to
X349H349H349H X349H3 49H349H
Figure 4-35, use direction arrows to select camera left limit
Then please go to
X350H350H350H
Figure 4-43
X
and click left limit button
Repeat the above procedures to set right limit.
Figure 4-44
4.9.8 Activate Auto Scan
In Figure 4-40 , click “Auto Scan” button, the system begins auto scan. Correspondingly, the auto scan
button becomes Stop button. Click stop button to terminate scan operation.
4.10 Flip
In Figure 4-40, click page switch button, you can see an interface is shown as below. See Figure 4-45.
Here you can set auxiliary function. The aux value has relation ship with the Aux button of the decoder.
Click page switch button again, system goes back to Figure 4-36.
Figure 4-45
