Here we take the ATM/POS protocol to continue.
There are two types: with or without the protocol according to client ’s requirements.
With the protocol
For ATM/POS with the protocol, you just need to set the source IP, destination IP (sometimes you need
to input corresponding port number).

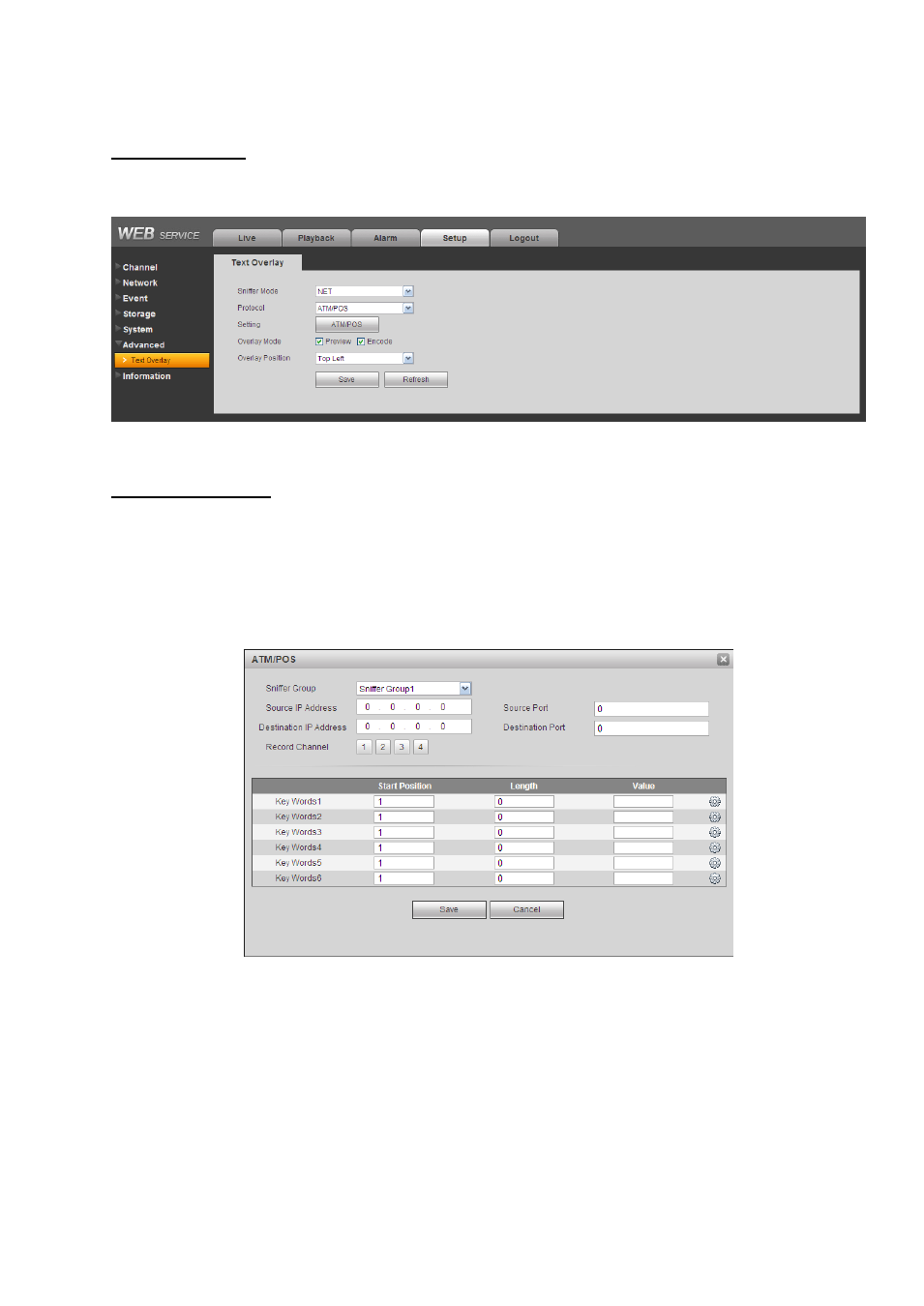

Figure 7-85
Without the protocol
For the ATM/POS without the protocol, the interface is shown as in Figure 7-86.
Source IP refers to host IP address that sends out information (usually it is the device host.)
Destination IP refers to other systems that receive information.
Usually you do not need to set source port and target port.
There are total four groups IP. The record channel applies to one group (optional) only.
Six frame ID groups verification can guarantee information validity and legal.
Figure 7-86
Click Data button you can set offset value, length, title according to your communication protocol and
data package. .
7.8.7 Information
7.8.7.1 Version
The version interface is shown as in Figure 7-87.
Here you can view system hardware features, software version, release date and etc. Please note the
following information is for reference only.
