Page 106: 4 real-time monitor

Text mode
Original mode

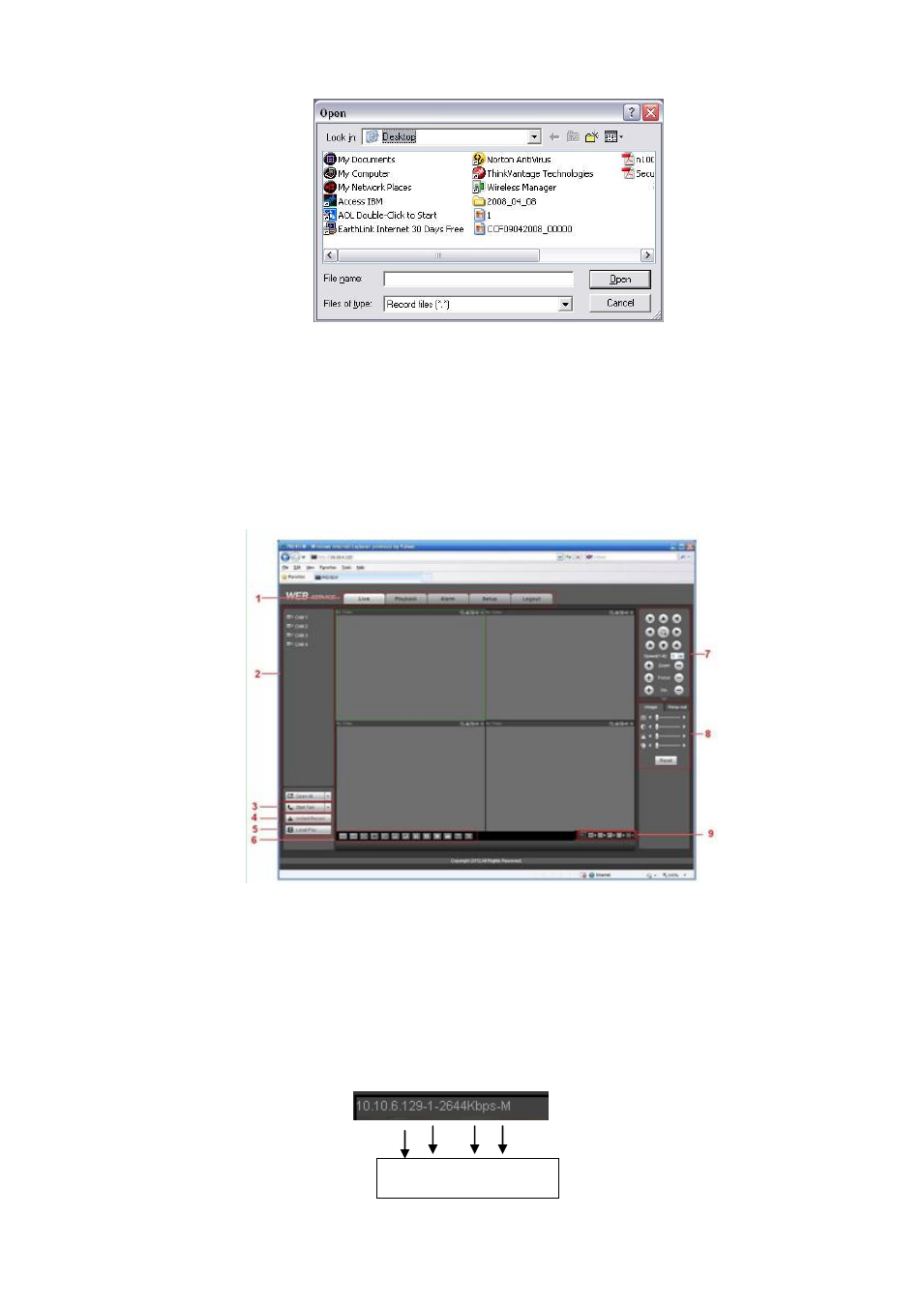

Figure 7-8

 Section 6: From the left to the right ,you can see video quality/fluency/ full screen/1-window/4-

window/6-window/8-window/9-window/13-window/16-window/20-window/25-window/36-window..

You can set video fluency and real-time feature priority.

 Section 7: PTZ operation panel. Please refer to chapter 7.5 for detailed information.
 Section 8: Image setup. Please refer to chapter 7.6 for detailed information.
 Section 9: Zero-channel encoding mode option.

Figure 7-9

7.4 Real-time Monitor

In section 2, left click the channel name you want to view, you can see the corresponding video in

current window.

On the top left corner, you can view device IP(10.10.6.129), channel number(1), network monitor bit

stream(2466Kbps) and stream type (M=main stream. S=Sub stream). See Figure 7-10.

1 2 3 4
