19
 In live viewing mode, click record button in the front panel or record button in the remote control.

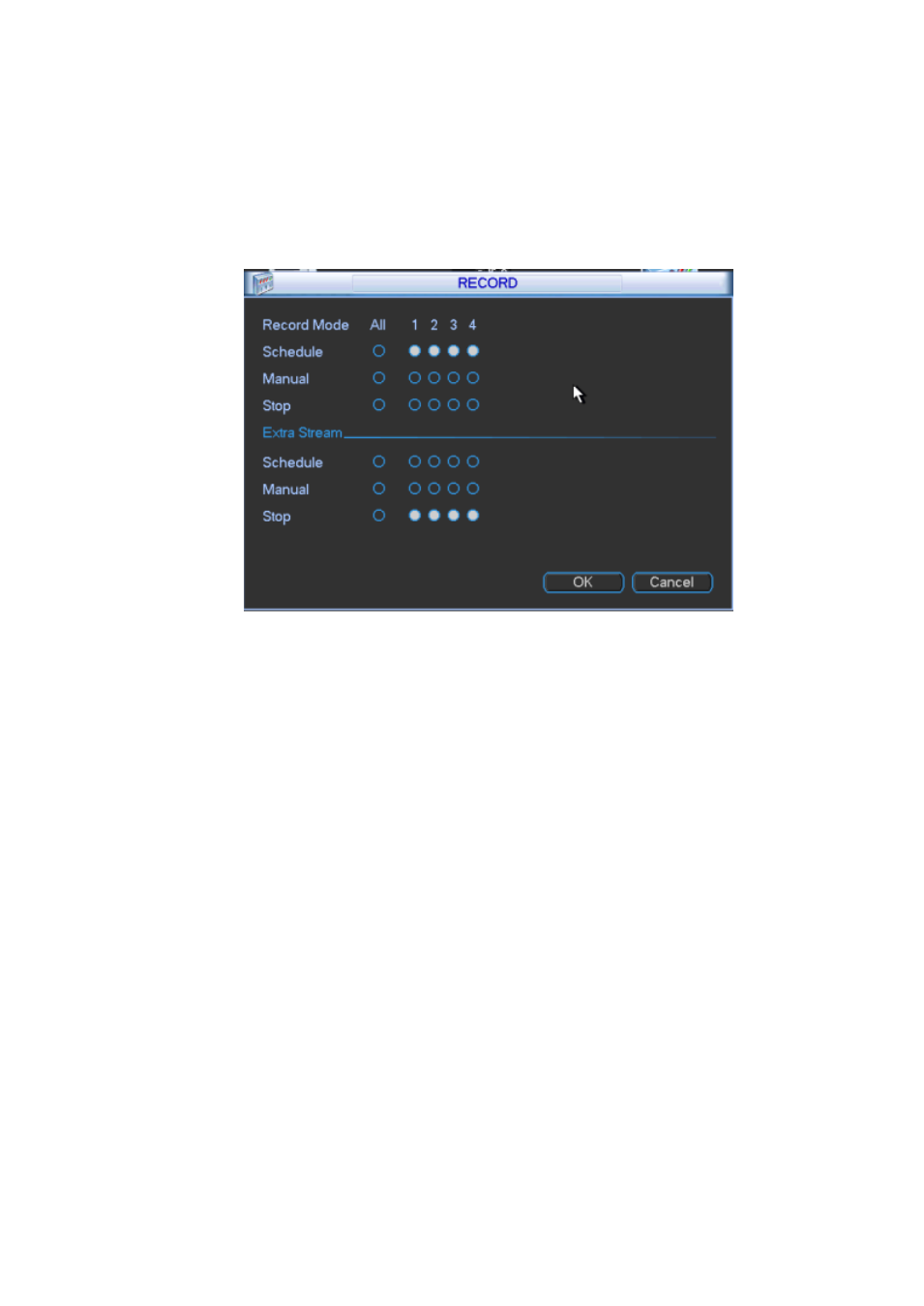

Manual record menu is shown as in Figure 4-7.
There are two modes: main stream and extra stream. There are three statuses:
schedule/manual/stop. Please highlight icon“○” to select corresponding channel.
 Manual: The highest priority. After manual setup, all selected channels will begin ordinary recording.
 Schedule: Channel records as you have set in recording setup (Main Menu->Setting->Schedule)
 Stop: All channels stop recording.
Figure 4-7
4.4 Search & Playback
Click search button in the main menu, search interface is shown as below. See Figure 4-8.
Usually there are three file types:
 R: Regular recording file.
 A: External alarm recording file.
 M: Motion detection recording file.
