49

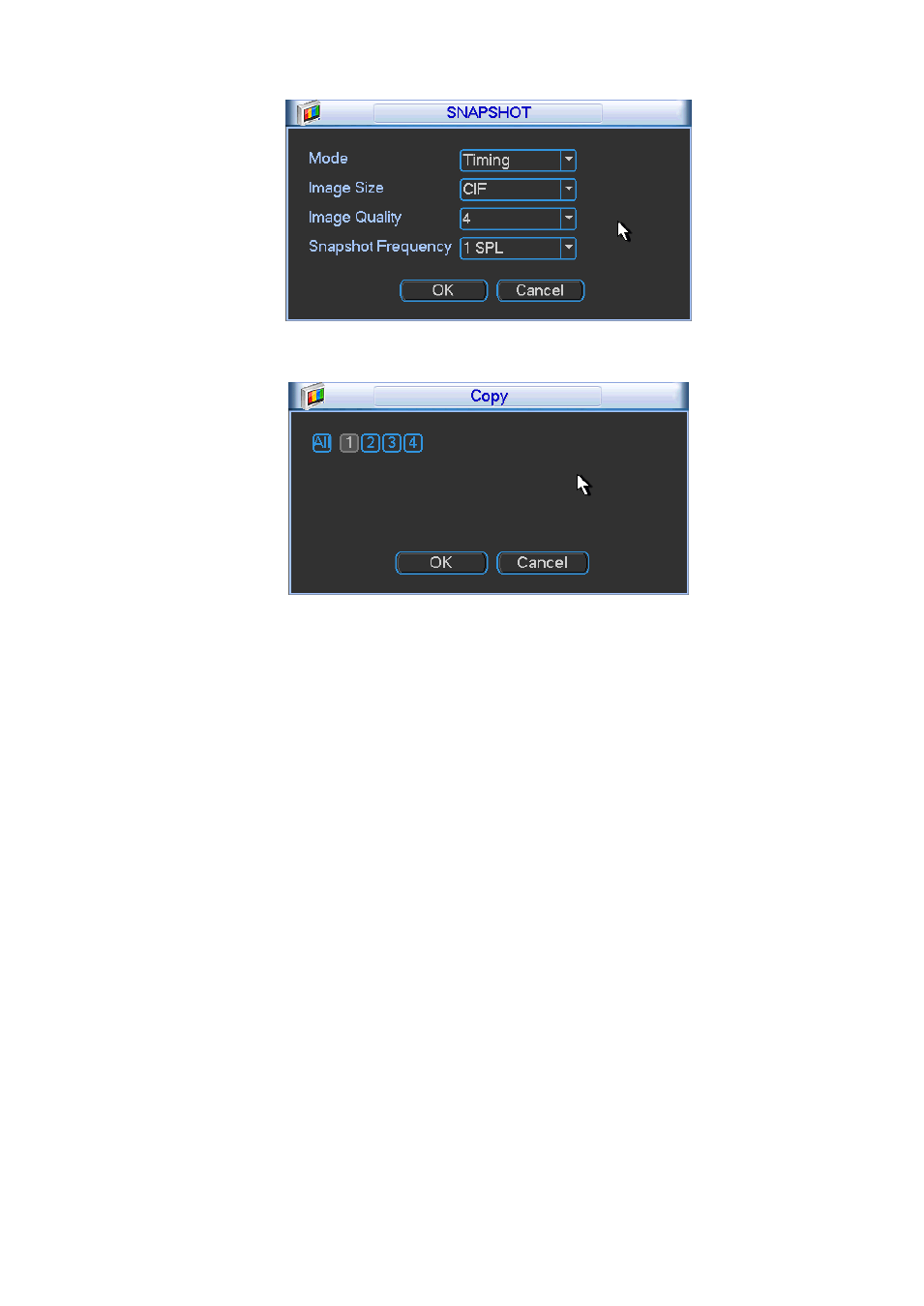

Figure 5-10
Figure 5-11
5.3.3 Schedule
Please refer to chapter 4.5 schedule.
5.3.4 Network
Here is for you to input network information.
The network interface is shown as in Figure 5-12.
 IP Version: There are two options: IPv4 and IPv6. Right now, system supports these two IP address
format and you can access via them.
 MAC address: The host in the LAN can get a unique MAC address. It is for you to access in the LAN. It
is read-only.
 IP address: Here you can use up/down button ( 
) or input the corresponding number to input IP
address. Then you can set the corresponding subnet mask the default gateway.
 Subnet prefix: The input value ranges from 0 to 128. It is to mark a specified network MAC address.
Usually it includes an organization of multiple-level.
 Default gateway: Here you can input the default gateway. Please note system needs to check the
validity of all IPv6 addresses. The IP address and the default gateway shall be in the same IP
section. That is to say, the specified length of the subnet prefix shall have the same string.
 DHCP: It is to auto search IP. When enable DHCP function, you can not modify IP/Subnet mask
/Gateway. These values are from DHCP function. If you have not enabled DHCP function,
IP/Subnet mask/Gateway display as zero. You need to disable DHCP function to view current IP
information. Besides, when PPPoE is operating, you can not modify IP/Subnet mask /Gateway.
