59
connection is valid all the time. If the alive time is 0, then the 3G network connection is valid all
the time.
 Dial: Here you can enable or disable 3G network connection/disconnection manually.
 3G wireless network: Here is to display wireless network status, SIM card status, dial status. If the
3G connection is OK, then you can see the device IP address the wireless network automatically
allocates.
 3G flow control: It is to show the 3G flow you used. See Figure 5-24.

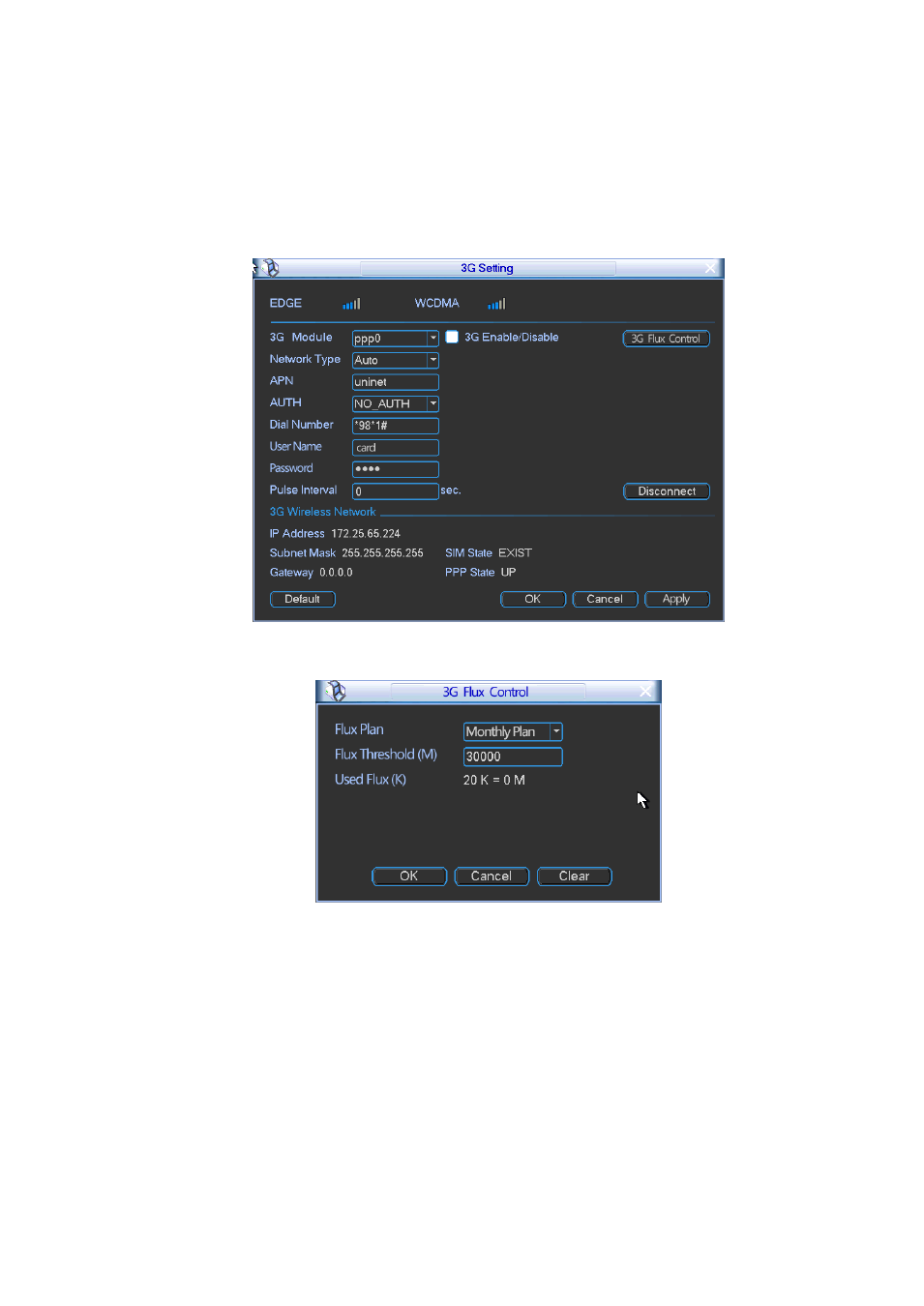

Figure 5-23
Figure 5-24
5.3.4.9 WIFI
You can view the WIFI connection status in the Network Setting interface. See Figure 5-25.
You can view current connection status and IP address if there is a connection.
