121

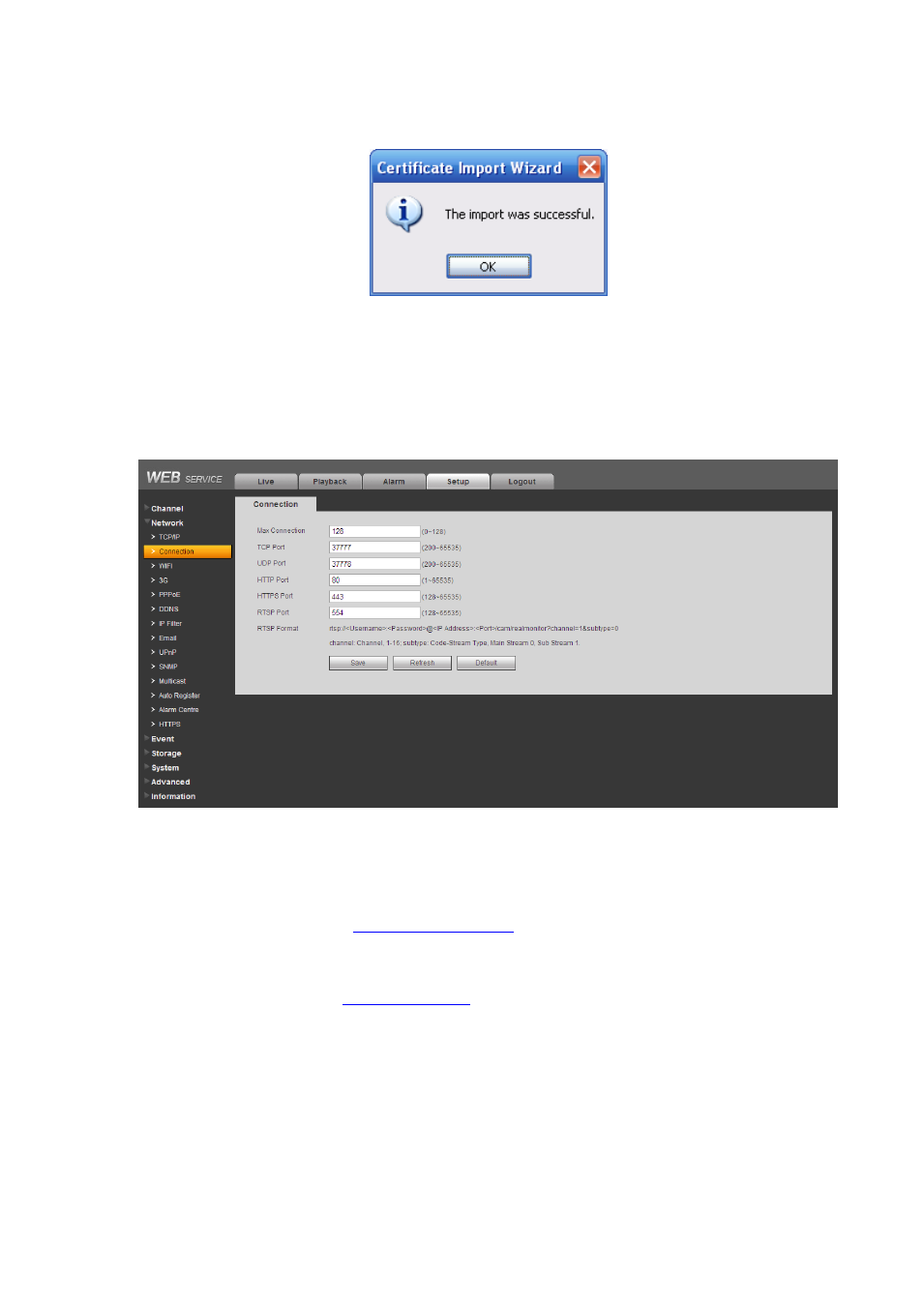

Click Yes button, system pops up the following dialogue box, you can see the certificate download is
complete. See Figure 7-45.
Figure 7-45
7.8.2.14.3 View and set HTTPS port
From Setup->Network->Connection, you can see the following interface. See Figure 7-46.
You can see HTTPS default value is 443.
Figure 7-46
7.8.2.14.4 HTTPS Login
Open the browser and then input https://xx.xx.xx.xx:port .
xx.xx.xx.xx: is your device IP or domain mane.
Port is your HTTPS port. If you are using default HTTPS value 443, you do not need to add port
information here. You can input https://xx.xx.xx.xx to access.
Now you can see the login interface if your setup is right.
7.8.3 Event
7.8.3.1 Video detect
7.8.3.1.1 Motion Detect
The motion detect interface is shown as in Figure 7-47.
