48
 Snapshot frequency: It is for you to set timing (schedule) snapshot interval. The value ranges from
1-7 picture(s) per second.
 Copy：After you complete the setup, you can click Copy button to copy current setup to other
channel(s). You can see an interface is shown as in Figure 5-11. You can see current channel
number is grey. Please check the number to select the channel or you can check the box ALL.
Please click the OK button in Figure 5-11 and Figure 5-8 respectively to complete the setup. Please
note, once you check the All box, you set same encode setup for all channels. Audio/video enable
box, overlay button and the copy button is shield.
Please highlight icon to select the corresponding function.

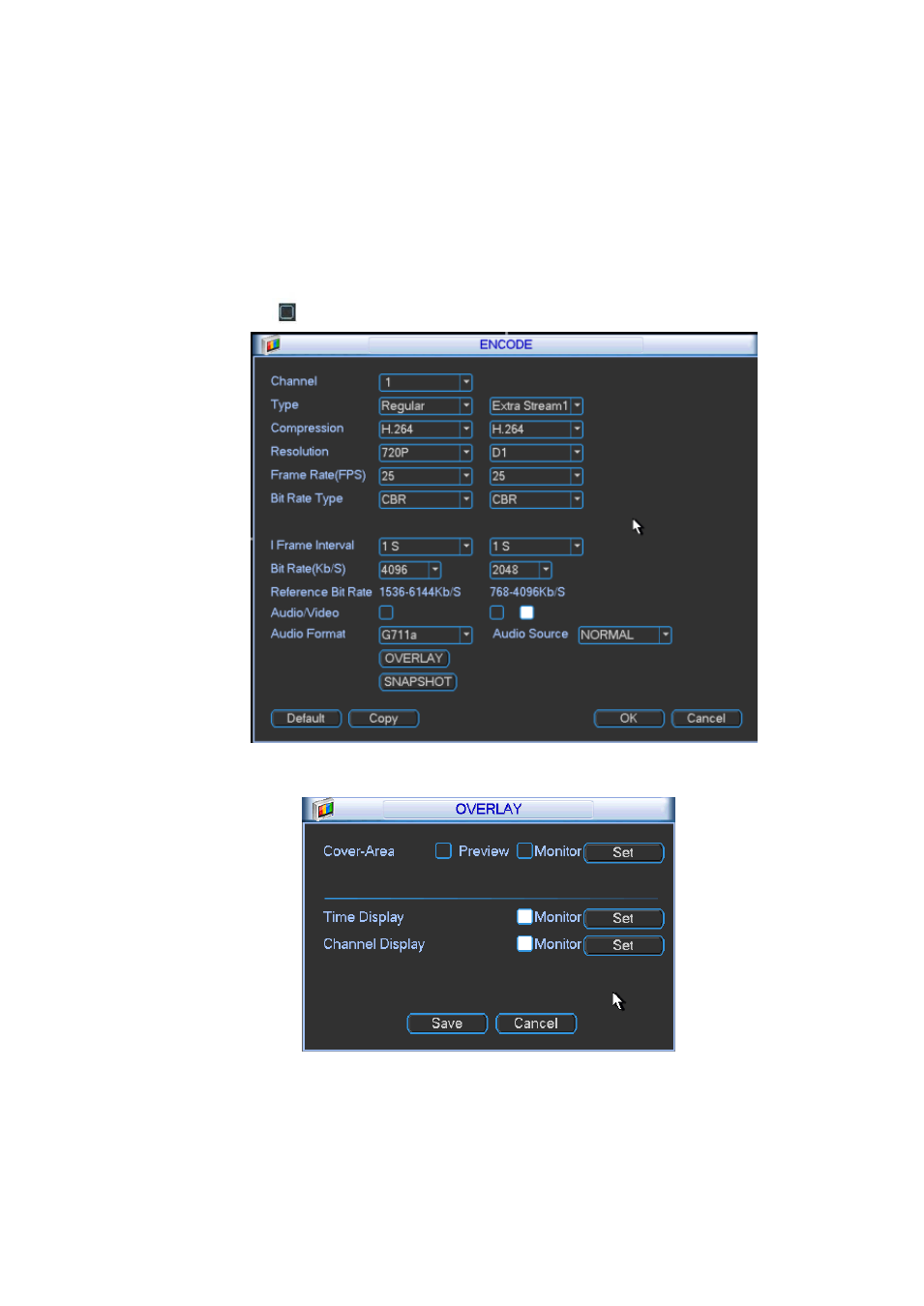

Figure 5-8
Figure 5-9
