100
7.7 WAN Login

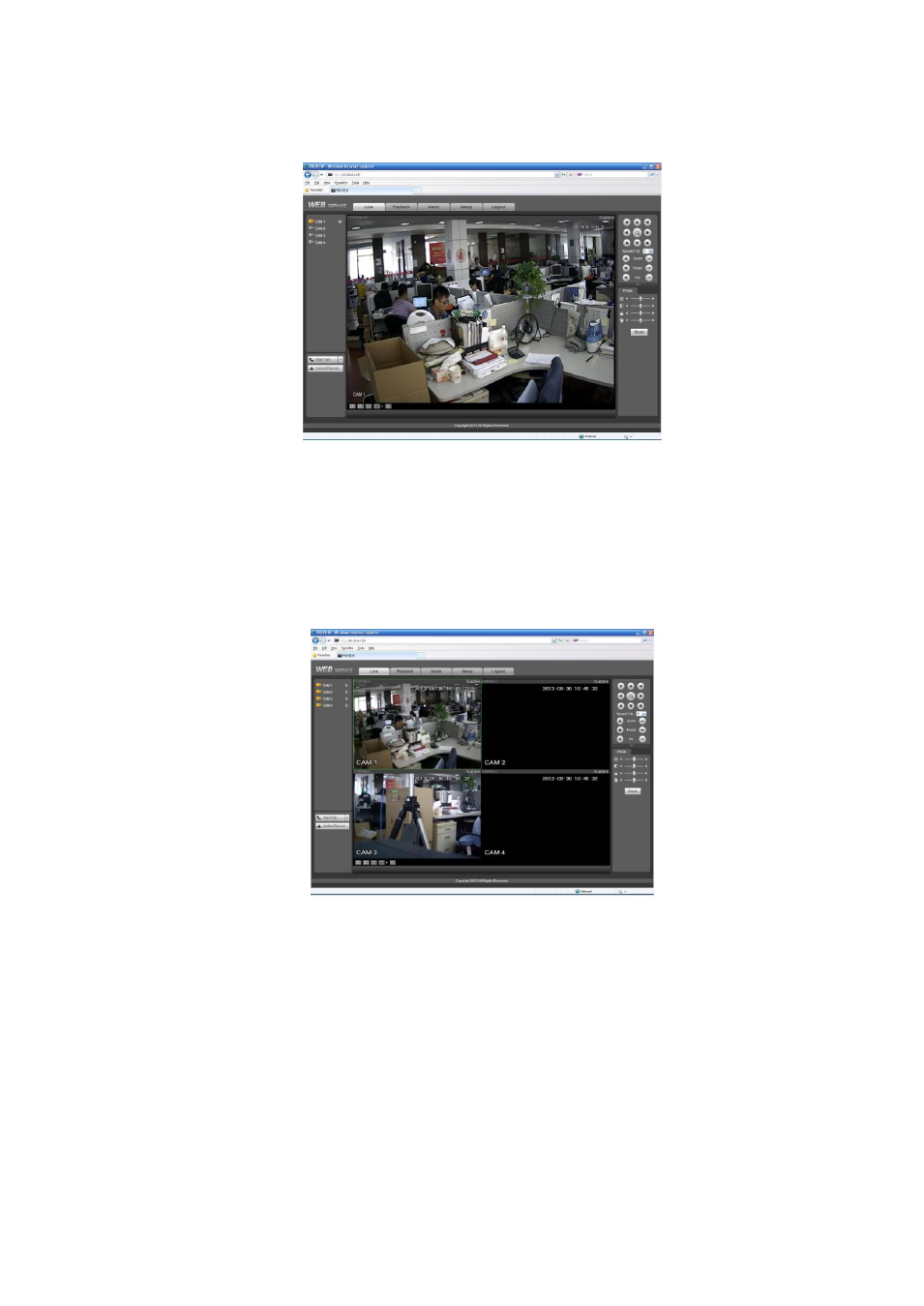

In WAN mode, after you logged in, the interface is shown as below. See Figure 7-14.
Figure 7-14
Please refer to the following contents for LAN and WAN login difference.
1) In the WAN mode, system opens the main stream of the first channel to monitor by default. The
open/close button on the left pane is null.
2) You can select different channel and different monitor mode at the bottom of the interface. See Figure
7-15.
Figure 7-15
Important
The window display mode and the channel number are by default. For example, for the 16-
channel, the max window split mode is 16.
3) Multiple-channel monitor, system adopts extra stream to monitor by default. Double click one channel,
system switches to single channel and system uses main stream to monitor. You can view there are two
icons at the left top corner of the channel number for you reference. M stands for main stream. S stands
for sub stream (extra stream).
4) If you login via the WAN mode, system does not support alarm activation to open the video function in
the Alarm setup interface.
