75
When you are setting the configurations of the channels setting, please select relevant channels first
(such as channel 1 to 2), and then select the HDD Group NO. Please click the Save button to save
current setup.
Important
 Once you change the HDD Group settings, system will pack the records and then reboot!
Tips
There is an easy way for you to test whether the records from the corresponding channel is saved in the
specified HDD. You can remove the HDD and then check the channel can record or not. You can see
the channel does not record and you can not search the previous record now.

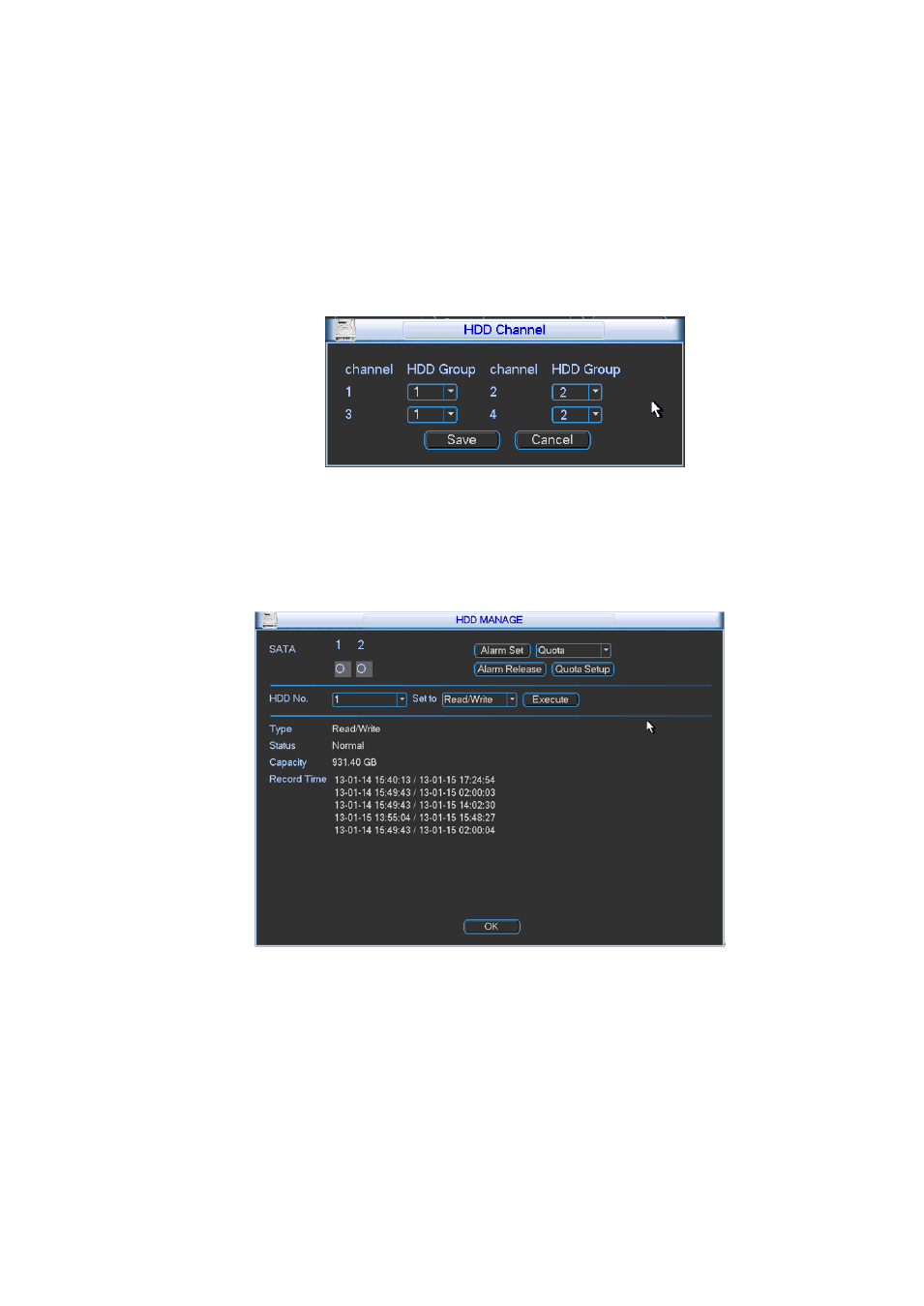

Figure 5-51
Channel Quota
Please note only the product of the quota setup icon supports this function.
Here you can set channel storage capacity. See Figure 5-52.
Figure 5-52
Click Quota Setup button, you can go to Figure 5-53. Here you can set the each channel storage
capacity in each HDD.
