OPTIONAL MEMOPY BOARD
I kUUBLtSHUO 11NG AND REGULAR MAINTENANCE

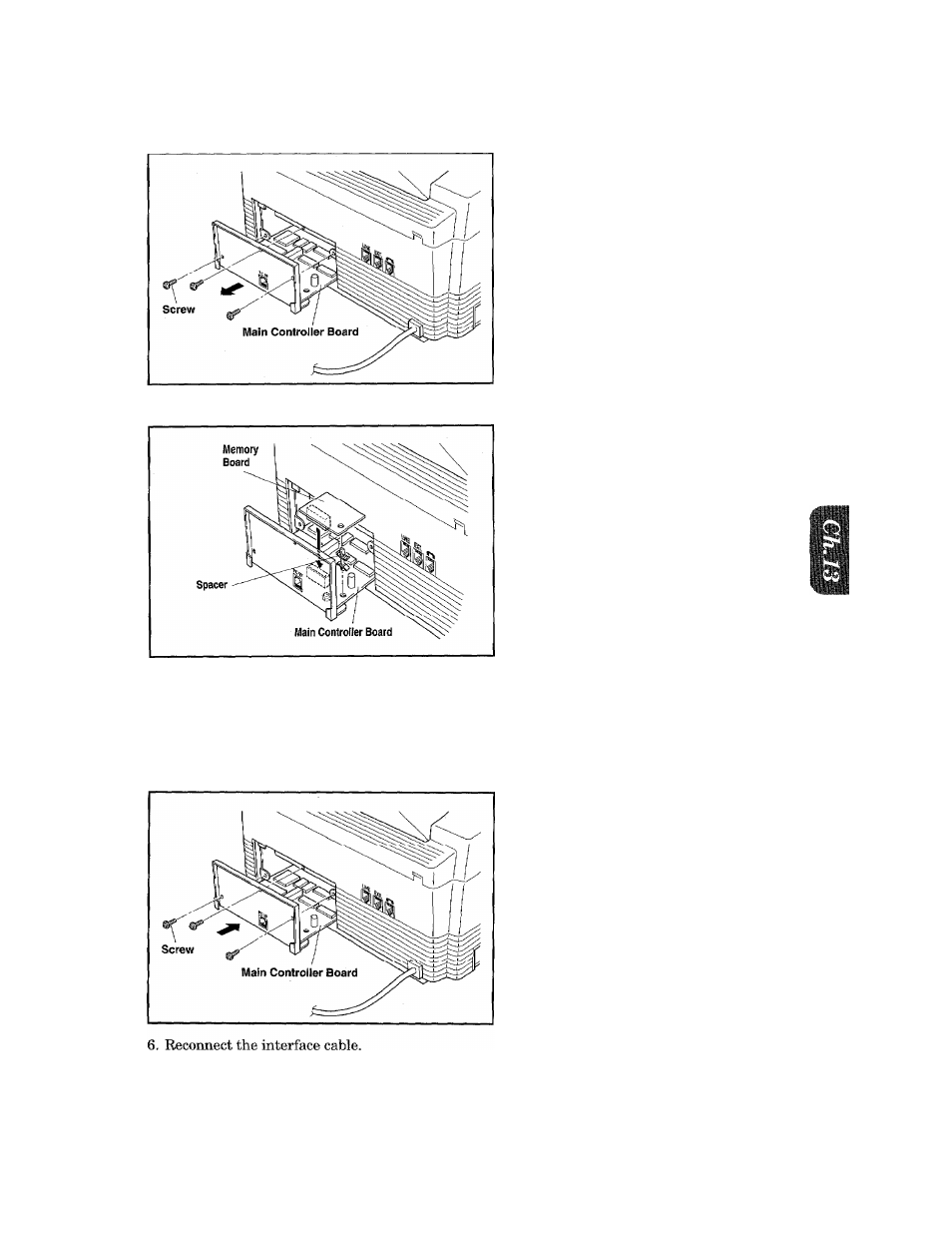

2. Unscrew the three screws securing
the main controller board plate and
pull out the board.
WARNING
Do not touch the surface of the main
controller board.
3. To install the memory board onto the
main controller board, use the
attached spacer and plug it into the
lower right connectors of the main
controller boards
WARNING-----------------------------------------------------------------------------------
Hold the edge of the memory board. Do not touch the surface of the board.
Make sure the memory board is securely seated in the main controller board.
4. Reinstall the main controller board
in the machine by slidingit into guide
rails.
5. Secure the main controller board with
the three screws.
7. Plug the power cord into the AC outlet.
