Quick setup guide

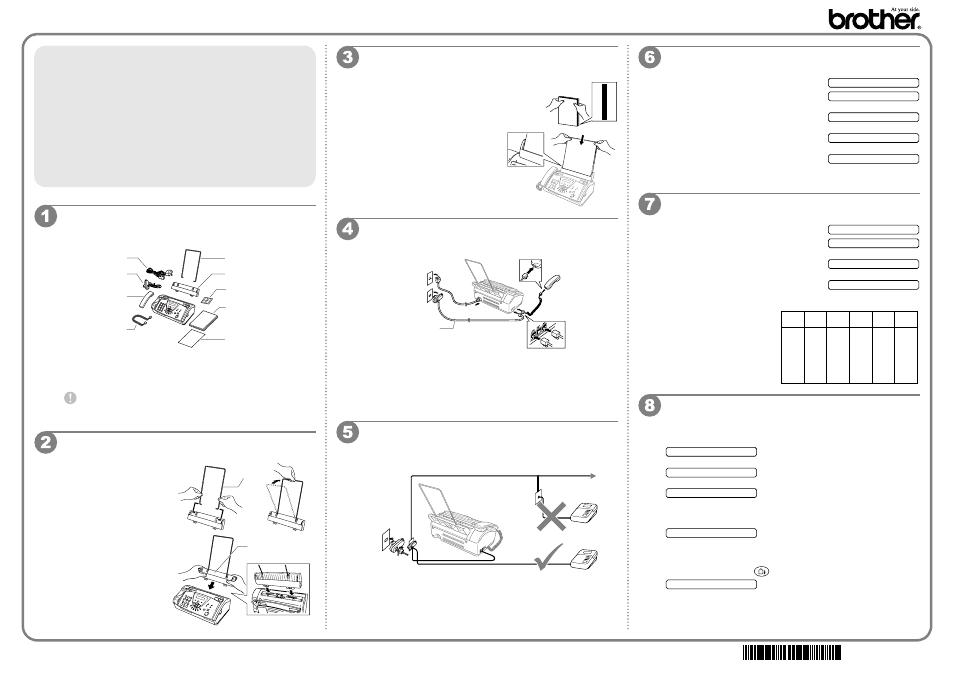

background image

Make sure you have the items shown below.

To help you get your fax machine working from the outset, we have
included a free starter ribbon (print cartridge) giving you up to 30 pages
of print.

1.

Attach the paper wire
extension.

2.

Attach the paper tray.
Make sure the wide pins
on the paper tray are
inserted firmly into the
pockets on the top edge
of your machine.

Place up to 30 (64 g/m

2

- 90 g/m

2

)

sheets of paper in the paper tray.
Gently insert paper.

The side to be printed on must be face
down.

Acceptable Paper

1.

Connect the handset.

2.

Connect the power cord to the machine.

3.

Plug the power cord into an electrical socket.

4.

Connect the telephone line cord to the machine in the socket marked
LINE.

For more details, see Chapter 1, “Connecting an External Telephone
Answering Device (TAD)” in the User’s Guide.

1.

Press

Menu/Set, 1, 1.

2.

Enter the last two digits of the year, and
then press

Menu/Set.

3.

Enter two digits for the month, and then
press

Menu/Set.

4.

Enter two digits for the day, and then
press

Menu/Set.

5.

Enter the time in 24-hour format, and
then press

Menu/Set.

6.

Press

Stop/Exit.

1.

Press

Menu/Set, 1, 3.

2.

Enter your fax number (up to 20 digits),
and then press

Menu/Set.

3.

Enter your telephone number (up to 20
digits), and then press

Menu/Set.

4.

Enter your name (up to 20 characters)
using the dial pad and the chart, and
then press

Menu/Set.

To enter a space press

twice.

5.

Press

Stop/Exit.

Choose the mode that best suits your needs by pressing

Receive Mode

repeatedly until the screen displays the setting you want to use.

For use with a dedicated fax line. Every call
is answered as a fax.
For receiving fax and voice calls on one line.

(FAX-T104 only) For use with an external
answering device. The TAD answers every
call and stores voice messages. Fax
messages are printed.

For receiving fax and voice calls on one line.
You control the phone line and must answer
every call yourself.

Once an Outgoing message has been recorded, you can choose the
mode below by pressing

until it lights. (FAX-T106 only)

A built-in answering machine answers every
call and stores voice and fax messages. For
details, see Chapter 9 of the User’s Guide.

For more details, see Chapter 5, “Choosing the Receive Mode” in the
User’s Guide.

Quick Setup Guide

FAX-T104, FAX-T106

THANK YOU!

... FOR PURCHASING YOUR BROTHER MACHINE.
WE ARE SURE YOU WILL BE IMPRESSED WITH THE CONVENIENT WAY
THAT YOUR NEW MACHINE HANDLES YOUR FAXING NEEDS!

To get started quickly, follow these simple instructions in numerical
order.
For greater detail and a full explanation of other useful features, consult your
User’s Guide.

Packing List

Keep the packing materials for possible future transport. If you do
not pack the machine properly, it could damage your fax and may
void your warranty.

Attach the paper wire extension and paper tray

Telephone Line Cord

Telephone Handset

Handset Curled Cord

Paper Wire Extension

Paper Tray

User’s Guide

Quick Setup Guide

One Touch Name Label

Power Cord

Paper Wire
Extension

Paper Tray

Load the Paper

Size:

A4

Weight:

64 to 90 g/m

2

Thickness: 0.08 to 0.12 mm

Connect the handset, power cord and telephone
line cord

If you are sharing one phone line with an
external telephone answering device, connect it
now as shown below.

Tap the stack of paper
so the edges are even.

(Example for
the U.K.)

Telephone Line Cord

TAD

(Example for
the U.K.)

TAD

Set Date and Time

Set Station ID

Select Receive Mode

1.DATE/TIME

ENTER YEAR:20--

ENTER MONTH:--

ENTER DAY:--

ENTER TIME:--:--

3.STATION ID

FAX:

TEL:

NAME:

Press

Key

once

twice

three
times

four

times

five

times

2
3
4
5
6
7
8
9

A
D
G

J

M
P

T

W

B
E
H
K
N
Q
U
X

C
F

I

L

O
R
V
Y

2
3
4
5
6
S
8
Z

A
D
G
J

M

7
T
9

FAX ONLY

FAX/TEL

TAD:ANSWER MACH.

MANUAL

TAD:MSG MGR

UK/IRE
LF3822001
Printed in Malaysia
