Page 12 HV-WP/HW-WP Series 6.Names

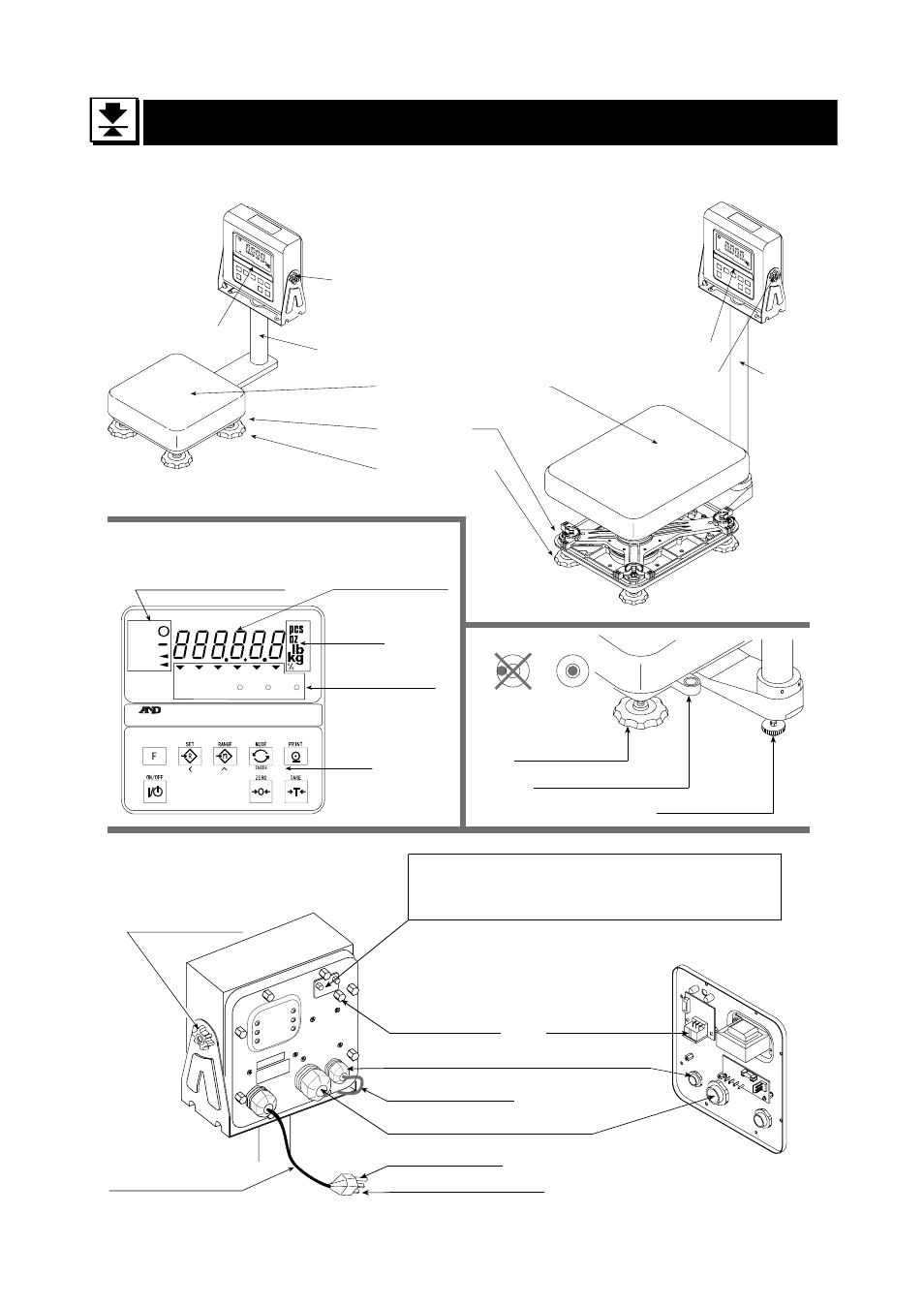

6. Names
Models
HV-15KV-WP
HW-10KV-WP Models
HV-60KV-WP
HV-200KV-WP
HW-60KV-WP
HW-100KV-WP
HW-200KV-WP
Rear of Indicator Unit
CAL switch is in a depth of 5cm.
Calibrating the scale to weigh correctly.
Use the proper OIML class calibration mass.
Main power cord
Load cell cable
Cable clamp for load cell cable
Earth terminal
Power line terminal
Earth terminal
PT READY M+ 15kg 6kg 3kg
STABLE
NET
ZERO
HI OK LO
Max 3/6/15kg d=1/2/5g
RS-232C
DIN connector
CAP.
Please Confirm that the local
voltage and receptacle type are
correct for your scale.
Knob for angle
adjustment
Cable clamp for option
Weighing condition
Inside of rear panel
Base Unit
Display Unit
Knob for
angle adjustment
Pole
Pan (Weighing Pan)
Leveling Foot
Bubble Spirit Level
Leveling Foot
Leveling Foot
Display
Units
Weighing data
Indicator of
function
Keys
OK NG
Display Unit
Pole
Knob for
angle adjustment
