* Only for the GP-M001/M010/M025
„ Piping
• Use the adapter for matching with the
diameter of the piping.
• When using a replacement adapter, attach
the O-Ring included with the Main Unit to the
groove of the G3/4 female screw part.
(Refer to the diagram below)
• Inquire to us when connecting the pipes directly using the GP-M
Series with a G3/4 female screw.
• The body may be rotated horizontally to 330°. When rotating,
hold the clasp in place with something such as a wrench.

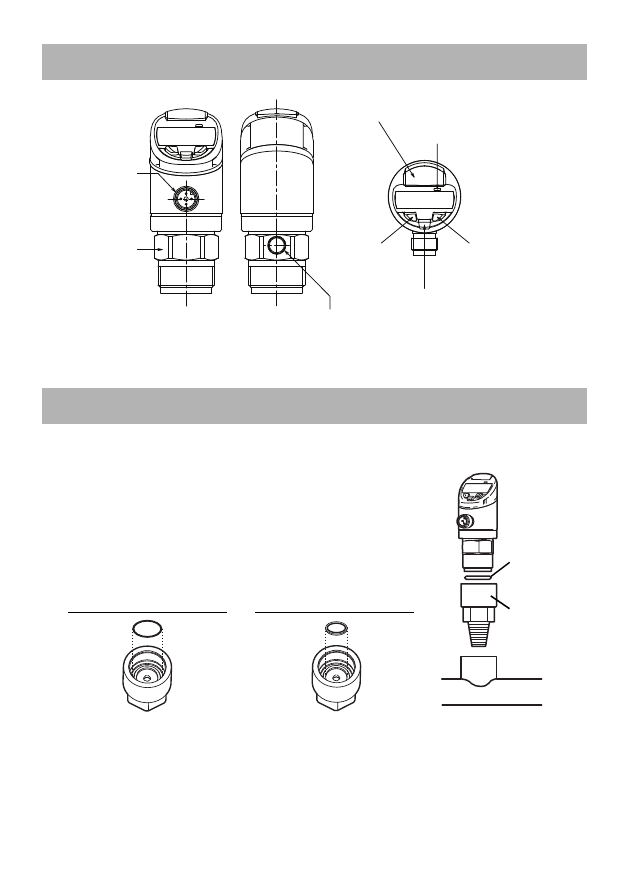

Name and Function of Each Part
Piping/Installation
GP-M001/M010/M025
Adapter
GP-M100/M250/M400
Adapter
1
Connector
for input
cable use
2
Clasp
3 Air hole
*
4 Operating light (output 1)
5 Operating light
(output 2)
8 MODE button
6
UP button
(U)
7 DOWN
button (V)
O-Ring
Adapter
