3-4 Message Communication
3-23
3
C
om
m
uni
ca
tin
g
w
ith FD
-M
H
Se
ries
- EtherNet/IP Compatible Network Unit DL-EP1 User’s Manual (FD-MH) -

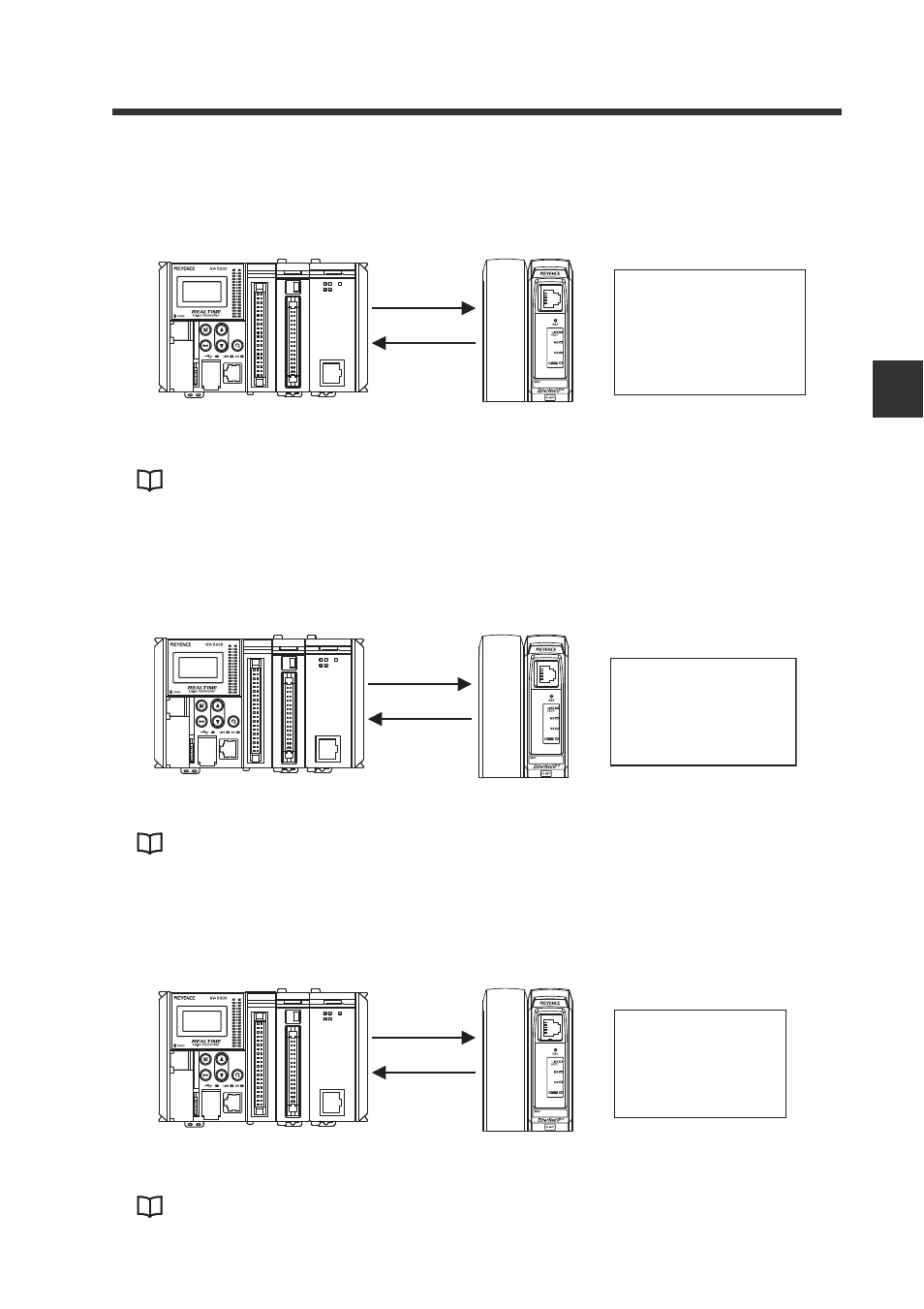

(2) Writing data to a sensor amplifier
Message communication writes parameters to the DL-EP1 and the sensor
amplifier connected to the DL-EP1.
"(2) Writing parameters to a sensor amplifier" (Page 3-44)
(3) Issuing operation commands to a sensor amplifier
Message communication issues operation commands such as integration reset to
the DL-EP1 and the sensor amplifier connected to the DL-EP1.
"(3) Issuing operation commands to a sensor amplifier" (Page 3-45)
(4) Locking sensor amplifier operations
Message communication locks operations by keys on the sensor amplifier
connected to the DL-EP1.
"(4) Locking sensor amplifier operations" (Page 3-47)
FD-MH
Command:
1000
Response
FD-MH
Integrated flow rate setting value 1: 1501000
DL-EP1 Scanner
FD-MH
Command
Response
Integration reset execution by FD-MH
DL-EP1 Scanner
FD-MH
Command
Response
Changes using the
sensor amplifier keys are locked.
DL-EP1 Scanner
