- EtherNet/IP Compatible Network Unit DL-EP1 User’s Manual (FD-MH) -
2-2 Installation and Connection to Sensor Amplifiers
2-4
2
C
onn
ec
tion
and
C
onf
ig
ur
at
ion

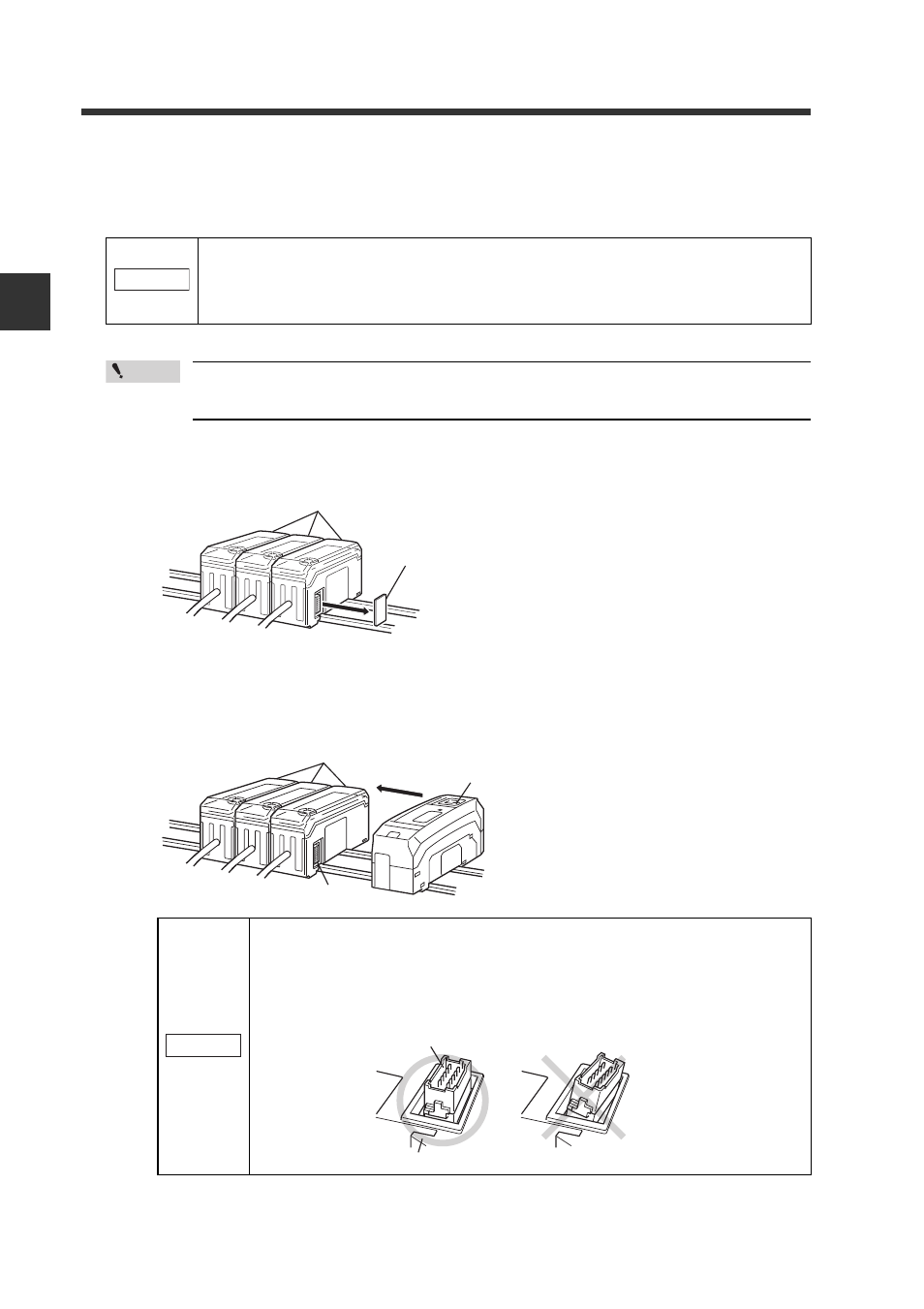

„ Connecting the DL-EP1 to sensor amplifiers
The EtherNet/IP Compatible Network Unit DL-EP1 must be connected to sensor
amplifiers before it can function.
For the instructions on connecting additional sensor amplifiers, refer to the
instruction manual of each sensor amplifier.
1
Remove the expansion protective cover from the sensor amplifier to be
connected.
2
Mount the EtherNet/IP Compatible Network Unit DL-EP1, on the DIN rail
and connect it to the sensor amplifier.
Insert the EtherNet I/P Compatible Network Unit DL-EP1 to the sensor amplifier
connector so as not to leave space between them.
Make sure that the sensor amplifiers are turned off before
connecting the EtherNet/IP Compatible Network Unit DL-EP1.
Connecting the DL-EP1 to the sensor amplifiers when they are
turned on may damage the DL-EP1.
Make sure that the sensor amplifier connector (for DIN rail mount
type) is not askew on the side face of the EtherNet/IP Compatible
Network Unit DL-EP1 according to the figure shown below.
Connecting the DL-EP1 to the sensor amplifier with the connector
being askew may damage the DL-EP1.
NOTICE
Point
Sensor amplifier
Expansion protective cover
Sensor amplifier
EtherNet/IP Compatible Network Unit
DL-EP1
Connector
NOTICE
Sensor amplifier connector
EtherNet/IP Compatible Network Unit DL-EP1
