3-2 DL-EP1 EtherNet/IP Communication Function
3-4
3
C
om
m
uni
ca
tin
g
w
ith FD
-M
H
Se
ries
sensor amplifier's output signals and comparator values and error status without
ladder programs.
Configurations such as RPI and data size for cyclic communication are set
on the scanner side.
In a network which has many connected devices, including EtherNet/IP
devices, a delay or packet loss could occur if a large load is constantly or
temporarily applied on the network. Verify the settings carefully before
operation.
Message communication
Message communication can be used for applications which do not require a
punctuality like cyclic communication.
In message communication, various parameters, including data which can be
exchanged with cyclic communication, can be read and written. Functions specific
to sensors such as the sensor amplifier preset function can also be executed.

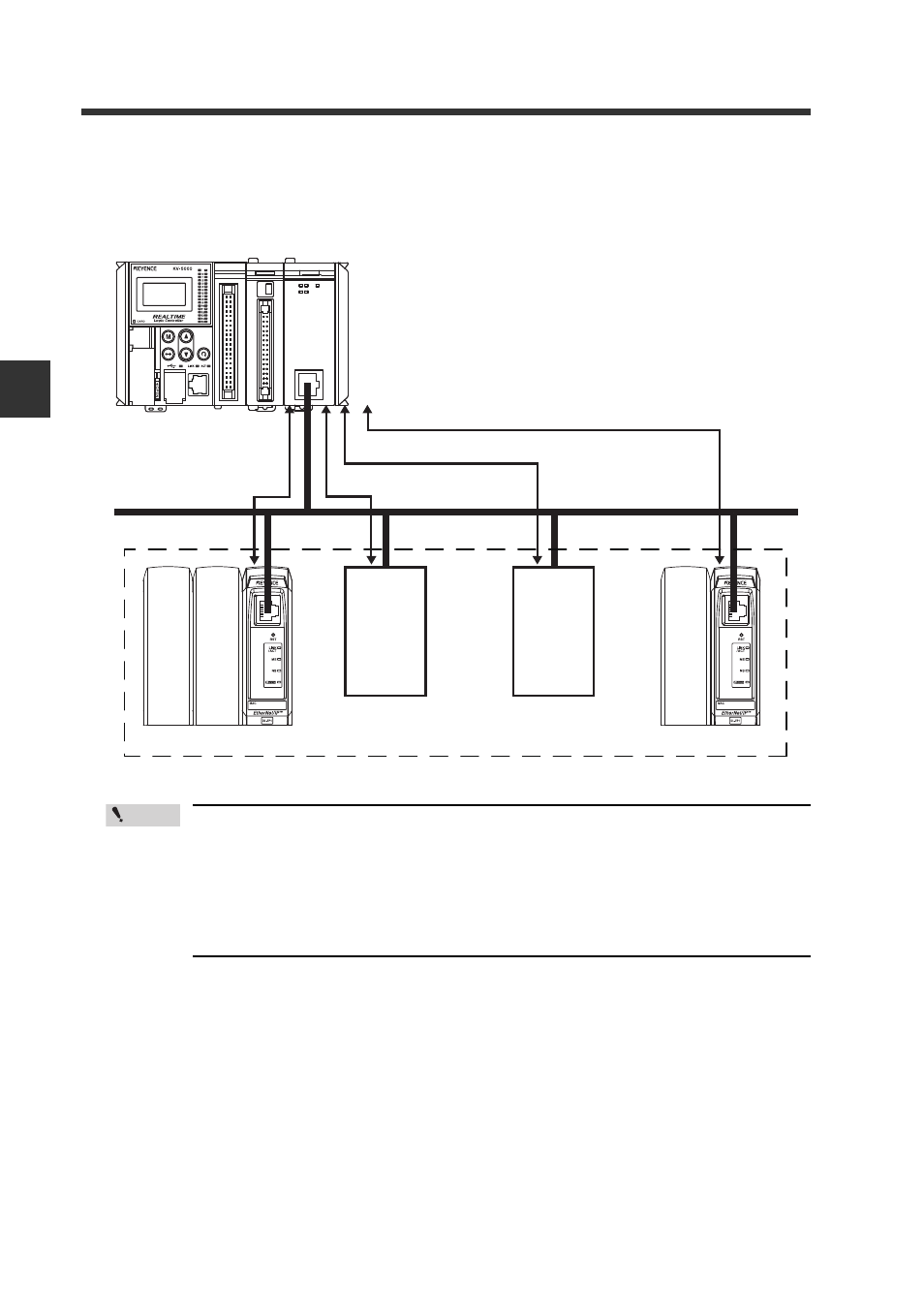

PLC
EtherNet/IP scanner
RPI=3 (ms)*
RPI=0.5 (ms)*
RPI=5 (ms)*
RPI=10 (ms)*
Various EtherNet/IP adaptors
Ethernet
* RPI (Requested Packet Interval) can be set
individually for each connection.
Point
