Cisco 3825 Mobile Wireless Edge Router Software Configuration Guide
OL-15667-03
Appendix B Configuration Examples
Overview
Ethernet over MPLS—VLAN and Port Mode Configuration
The following is an example of an Ethernet over Multiprotocol Label Switching (MPLS) configuration
in VLAN and Port mode (see
Figure B-2
Ethernet over MPLS—VLAN and Port Mode Configuration
The following represents both a VLAN and port mode in an Ethernet over MPLS configuration:
MWR_1
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname mwr-pe1
!
boot-start-marker
boot-end-marker
!
card type e1 0 1
card type e1 0 2
card type e1 1 0
card type e1 1 1
logging buffered 10000000
enable password lab
!
no aaa new-model
!
redundancy
mode y-cable
standalone
!
network-clock-participate slot 1
network-clock-participate wic 1
network-clock-participate wic 2
network-clock-participate aim 1
network-clock-select 1 E1 1/1/0
mmi polling-interval 60
no mmi auto-configure
no mmi pvc
mmi snmp-timeout 180
ip cef
!
!
!
!
no ip domain lookup
vlan ifdescr detail
multilink bundle-name authenticated
mpls label protocol ldp

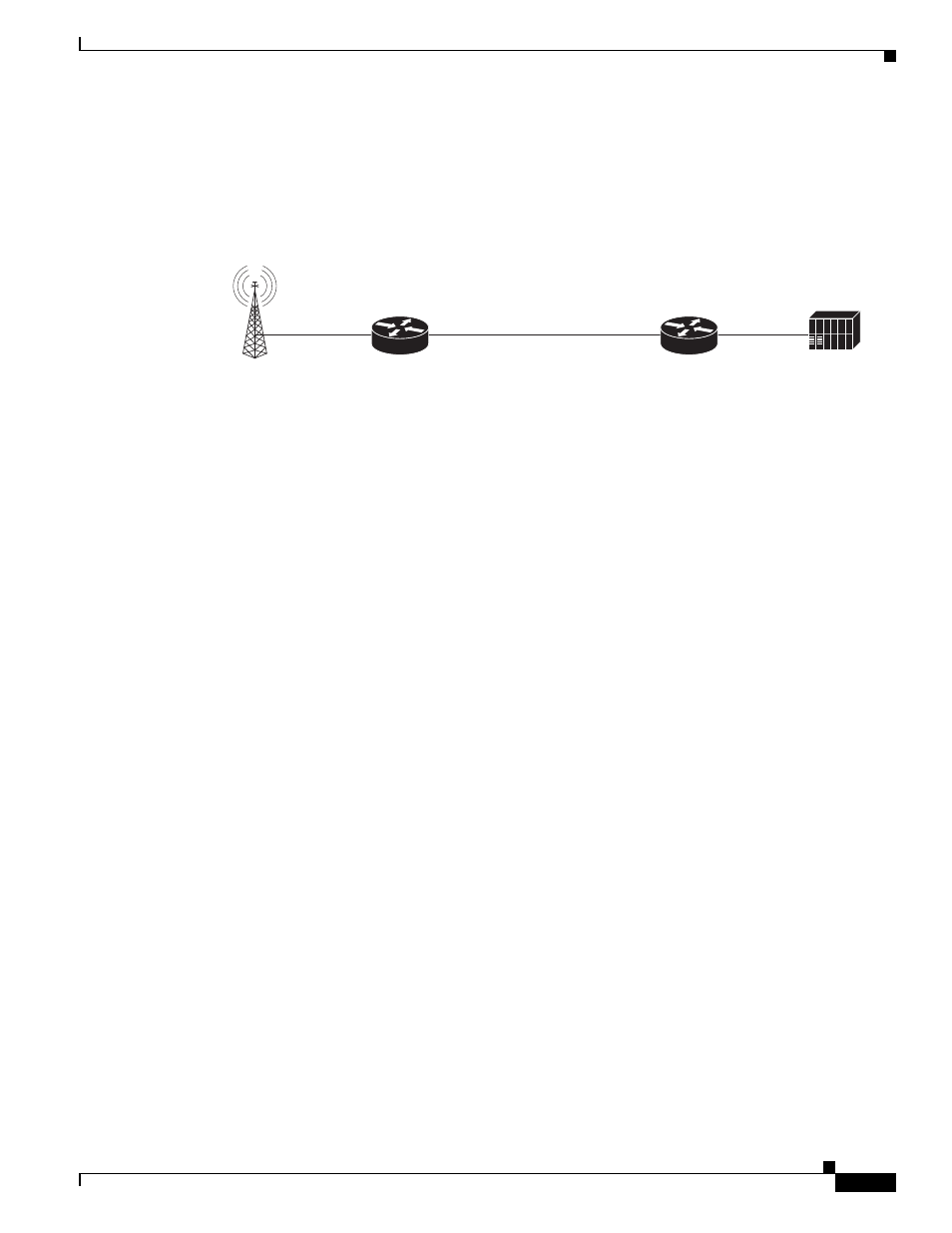

GE 0/0/1
MWR_1
BTS/Node B
BSC/RNC
MWR_2
Ethernet 0/0
Ethernet 0/0
9.9.9.6/24
GE 0/0/1
9.9.9.8/24
VLAN
VLAN
270637
