Parts and their functions

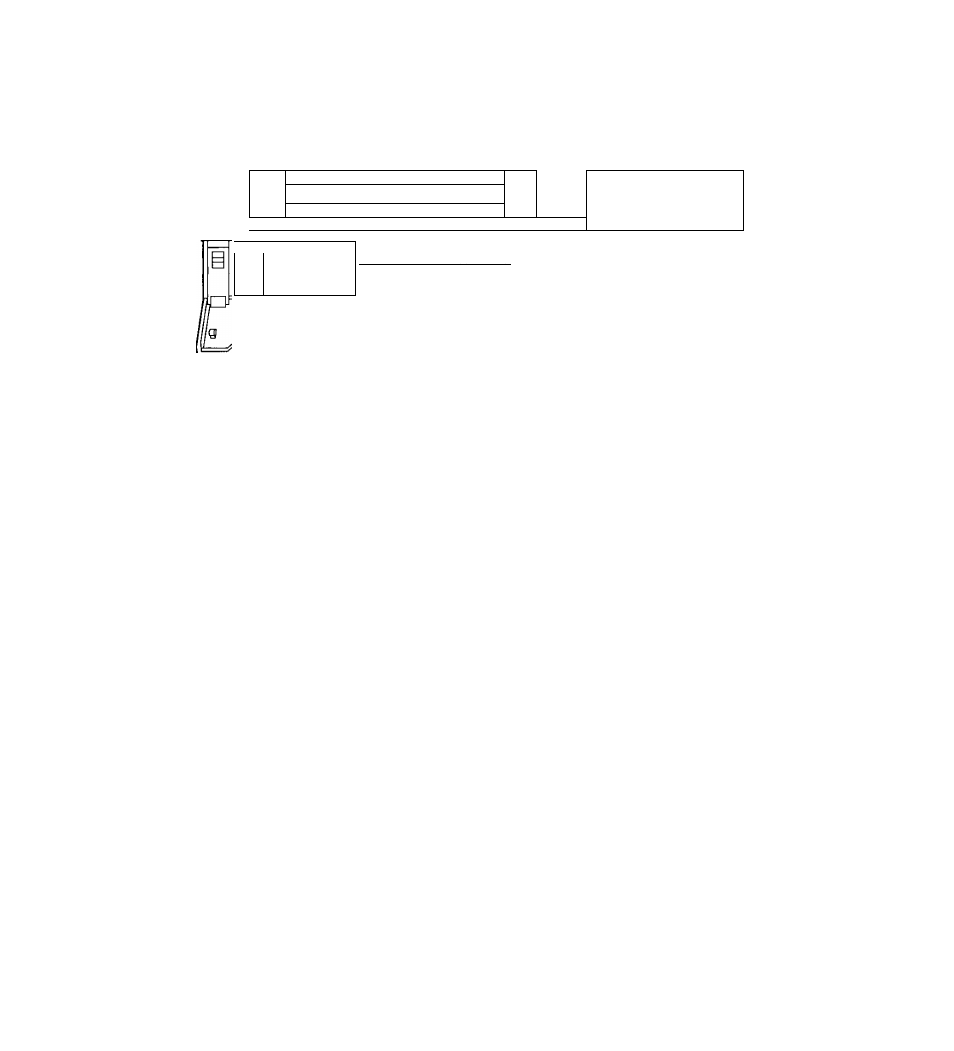

Front panel (sub panel)
ri--------------
1 USE S-VHS CASSETTE TAPE ONLY |
^___________________________________________ ;
tWLCKMB ^ + rutimwm
□
□ CD o
['jpnil 1
J ""O b ::: uu— —
fW PlAJ PUcr «T0»
[ -*■ I [ *• 1 I ■ 1 I ■■ 1
— P40C -4- f tflTT i
new 04 9 FT REVAVQ FWD MTft
[ »»-) { *iJ ■■!■)
i!) O O Ci O
(ZD IZD
- trr +
«T 9
CD b
IQ
é
0LOCK switch
Used to set the lock mode.
ALL : All normal operations are suspended, and
LOCK lights on the display tube.
OFF : Normal operations can be conducted.
REC: Normal operations are suspended after
recording has commenced, and LOCK lights
on the display tube.
(REC REVIEW button operations are
acknowledged.)
® REW/0 button
Press in the stop mode to rewind the tape.
When this button is pressed during playback or still-
picture playback, the tape is reviewed.
® (HVFP button
Press in the stop mode to fast forward the tape.
When this button is pressed during playback or still-
picture playback, the tape is cued.
0REV AVD button
Press during still-picture playback to advance the
tape frame by frame in the reverse direction.
When the PROGRAM switch is at the MENU
position, this button serves as the SHIFT (◄)
button to select the setting menu screen items.
When the PROGRAM switch is at the TIME ADJ
position, the button moves the screen display
position toward the left.
0FWD AVD button
Press during still-picture playback to advance the
tape frame by frame in the forward direction.
When the PROGRAM switch is at the MENU
position, this button serves as the SHIFT (►)
button to select the setting menu screen items.
When the PROGRAM switch is at the TIME ADJ
position, the button moves the screen display
position toward the right.
0CAMERA buttons
In the playback mode:
Press during playback to select the camera and
play back the pictures recorded by the selected
camera.
In any other mode:
When the buttons are pressed in any other
mode, the camera to be monitored can be
selected.
When the [ T ] button and [ A ] button are pressed
together,
the auto sequence mode is
established.
When they are pressed in the auto sequence
mode, the unit is switched to the manual
sequence mode.
