Connections

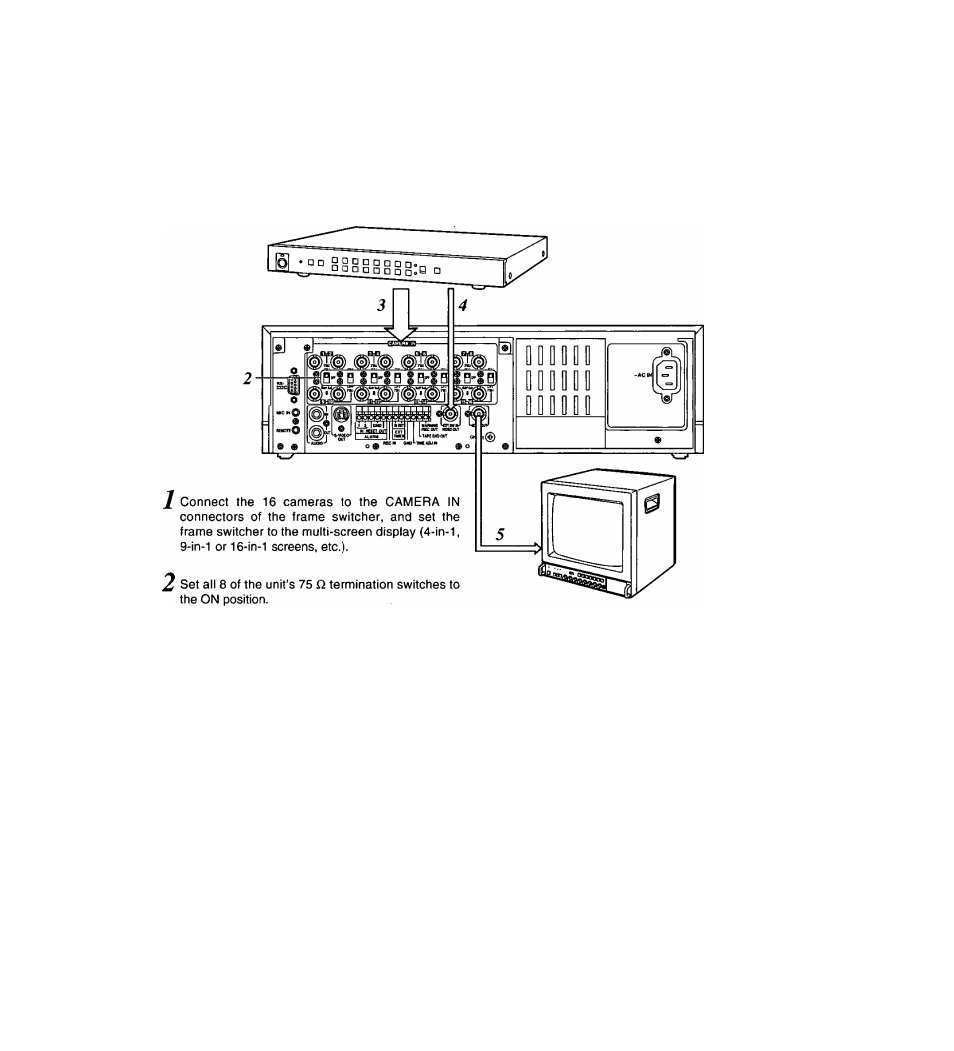

When using a frame switcher during recording to output more than one screen image on the TV monitor

....

Connect the 16 camera outputs of the frame
switcher to CAMERA IN connectors [T] through [i^
on the unit.

Connect the video output of the frame switcher to

the EXT SW INA/IDEO OUT connector on the unit.

Connect the TV monitor to the VIDEO OUT

connector on the unit.

Select EXT SW IN as the MODE item setting on

the setting menu shown on the P7 EXT

SWITCHER screen.

The multiple images set by the frame switcher can

be viewed on the TV monitor in all modes except

for the playback mode.
