Connections

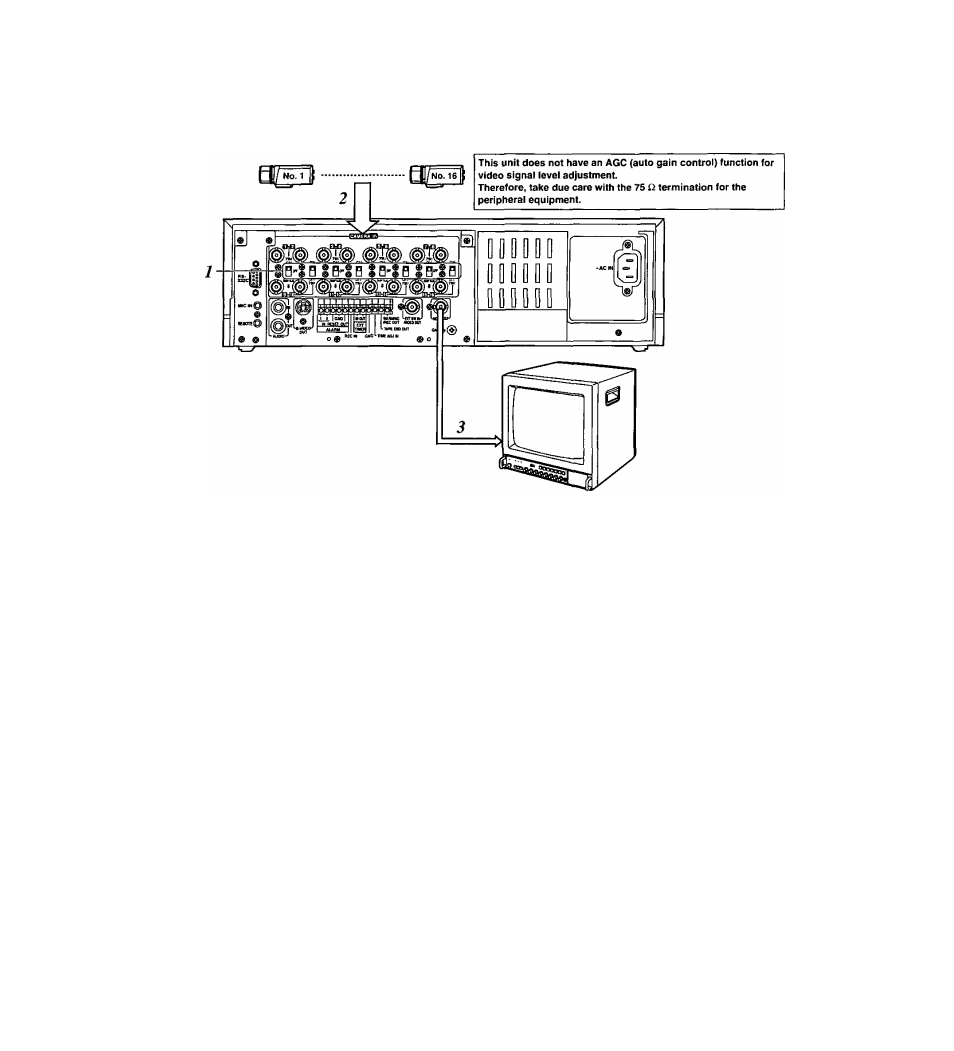

Example of connections to switch between 16 cameras for recording
2
Set all 8 of the 75
Q
termination switches to the
ON position.
2
Connect the 16 cameras to CAMERA IN
connectors [T] to [i6|.
3
Connect the TV monitor to the VIDEO OUT
connector.
• When connecting line-locked cameras, select ON
for the LL CAMERA item setting on the setting
menu shown on the P7 VIDEO OUT SEQUENCE
screen.
The images on the monitor will shake fractionally:
this is normal and not indicative of malfunctioning.
• This unit does not contain a compensation circuit.
Install a compensator when the total length of the
cables (coaxial 3C-2V) used to connect the
cameras exceeds 200 meters.
There is no need to install a compensator if the total
length is under 400 meters if coaxial cables (5C-2V)
with minimal transmission loss are used.
