Terminal connections

As shown below, firmly twist the end of the cord which

is to be connected to the terminal section.

Firmly twist or
solder here.

Solid wire : 0.4 to 1.2 mm diameter

Twisted wire : 0.3 to 1.25 mm

(The diameter of the strands must be

0.18 mm or more.)

When connecting or disconnecting the
cord, press this part down using a
regular screwdriver.

Failure to twist the end of the cord firmly can cause

short-circuiting.

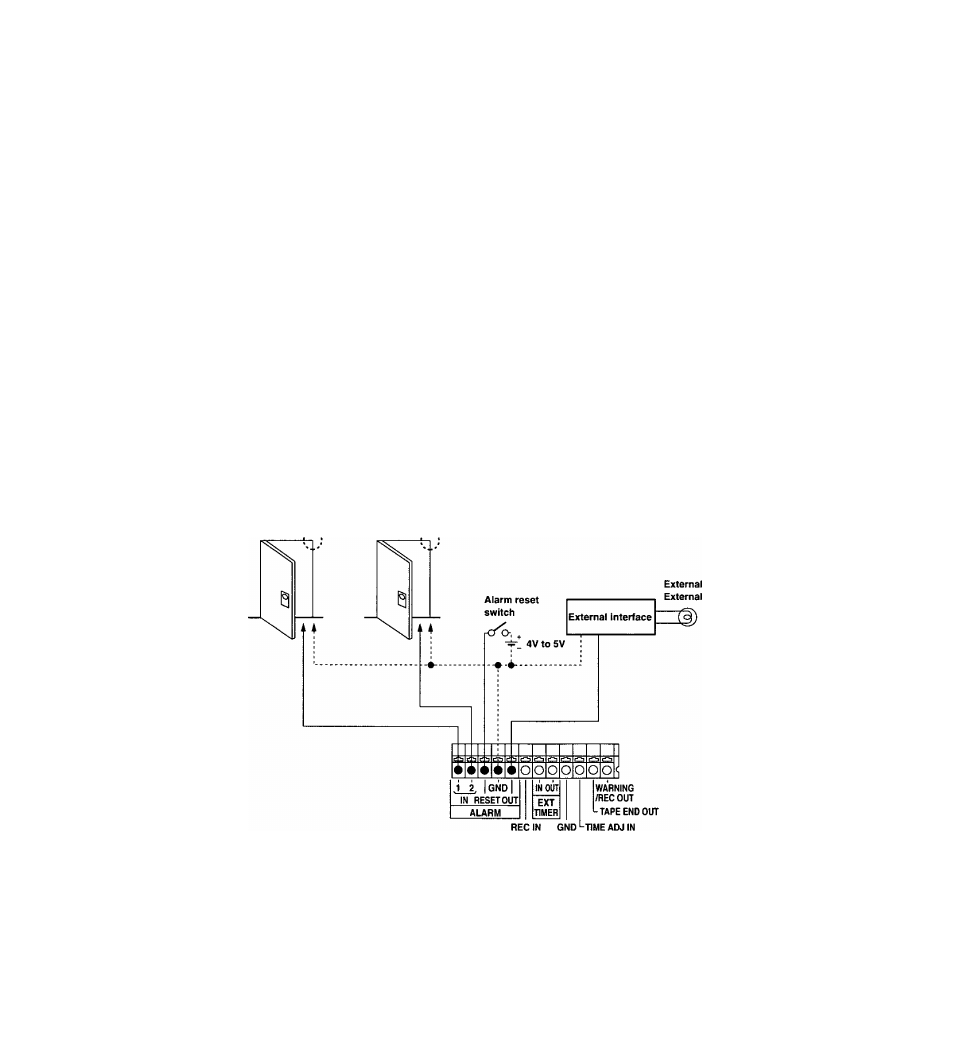

Alarm recording connections

Alarm switch 1

When an alarm signal is input to

ALARM INI, alarm recording or
sensor recording is performed.

V..

Alarm switch 2

When an alarm signal is input to
ALARM IN 2, alarm recording or
sensor recording is performed.

.../

• When alarm recording has been set for MODE on

the menu screen shown on P4 ALARM/SENSOR

REC, alarm recording is started when the alarm
switch is set to ON.

• Alarm recording is released when the alarm reset

switch is set to ON.
