OPERATING AND PROGRAMMING INSTRUCTIONS
8-49
3 – Function buttons
Seen from left to right the buttons give access to the following functions:
- I/O overview (5 below)
- recipe parameters (6 below) with current active recipe shown
- print chart (7 below)
- print report (8 below)
- copy graph to clipboard

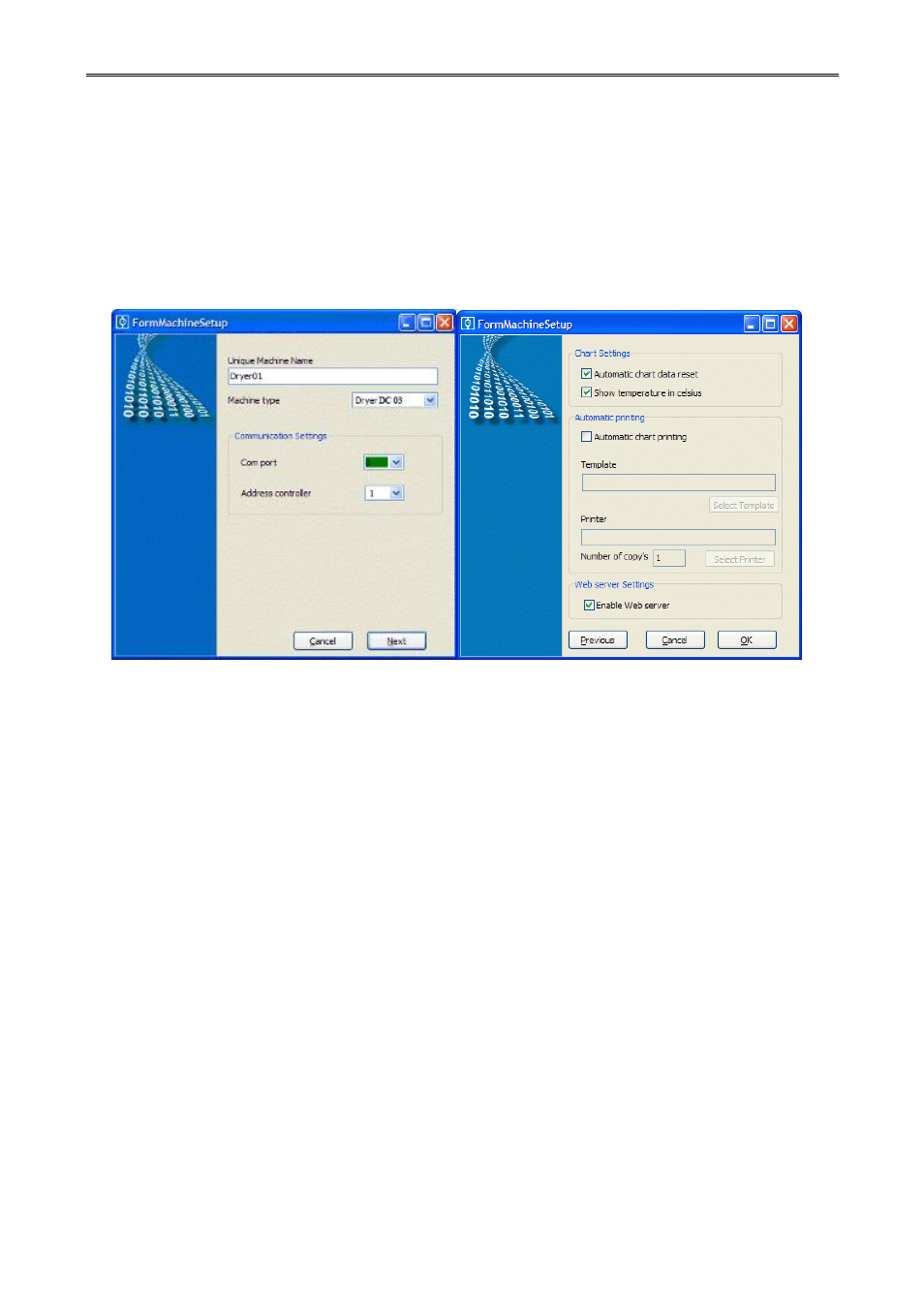

4 – Settings menu
The settings menu is accessed by right clicking on a controller in the machines list (1). Two
consecutive screens provide options for individually defining each machine (first screen), and
options for printing data or creating an online (real-time) page for the machine which can be viewed
in a web browser. The programme allows charts and reports to be automatically generated for each
machine cycle and sent to any printer attached to the computer by USB or UTP network.
