OPERATING AND PROGRAMMING INSTRUCTIONS
8-44
9.4) Install 2
nd
temperature sensor option
The 2
nd
temperature sensor expansion kit is supplied with the following parts:

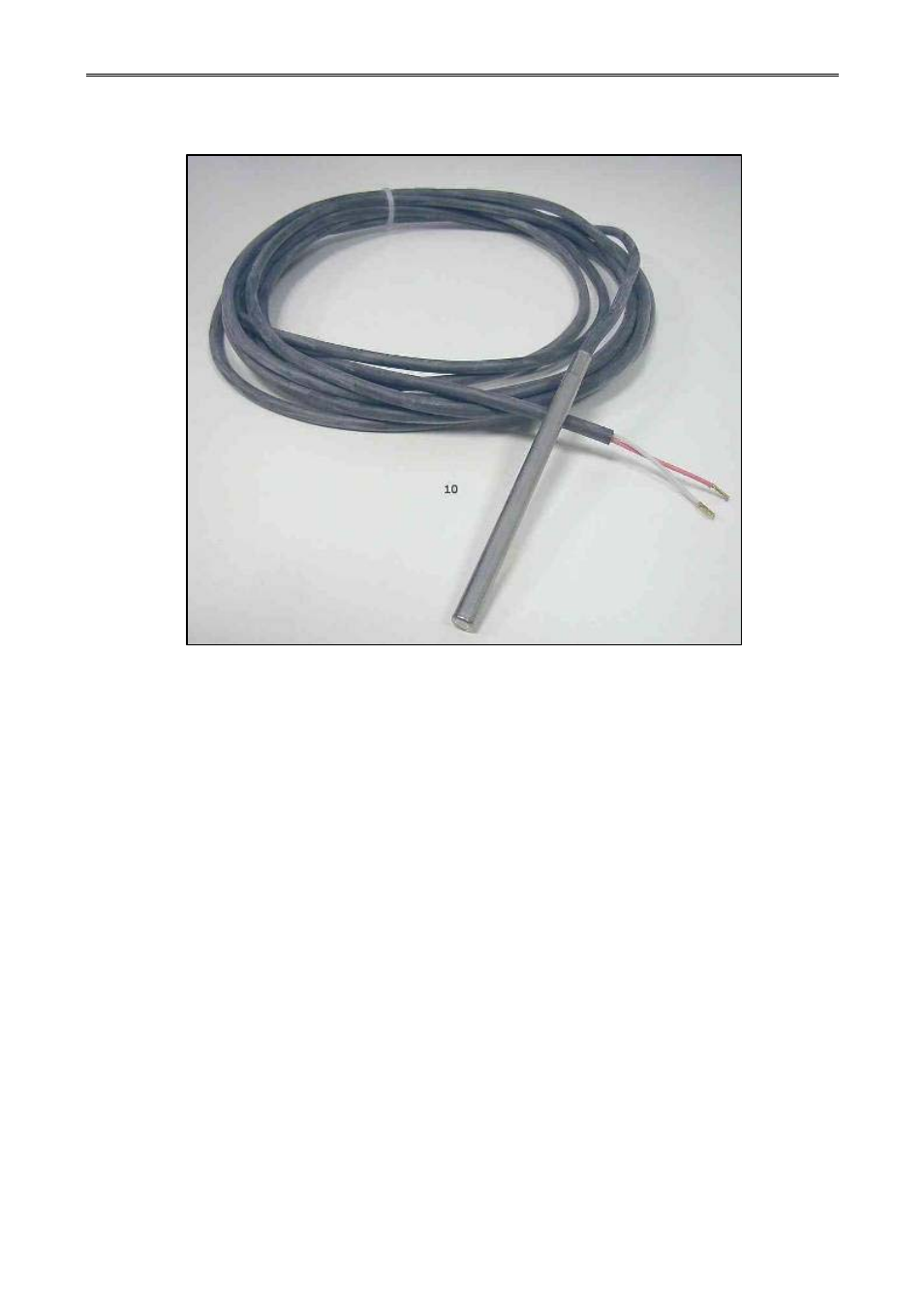

10. NTC (high temperature) sensor
Installation in a machine
1. Switch off the machine and disconnect the power.
2. Mount the 2
nd
temperature sensor in the hot air inlet of the machine
3. Connect the sensor on the back of the controller. Connector J11, pin 3 and 4
4. Reconnect the power and enable the 2
nd
temperature sensor in the controller. (chapter 6.8,
parameter 4)
5. Change the programs for which you wish to use automatic drying. (chapter 6.4.1, parameter
1)
