Page 376
374
Forbindelser og montering
Welch Allyn Videokolposkop

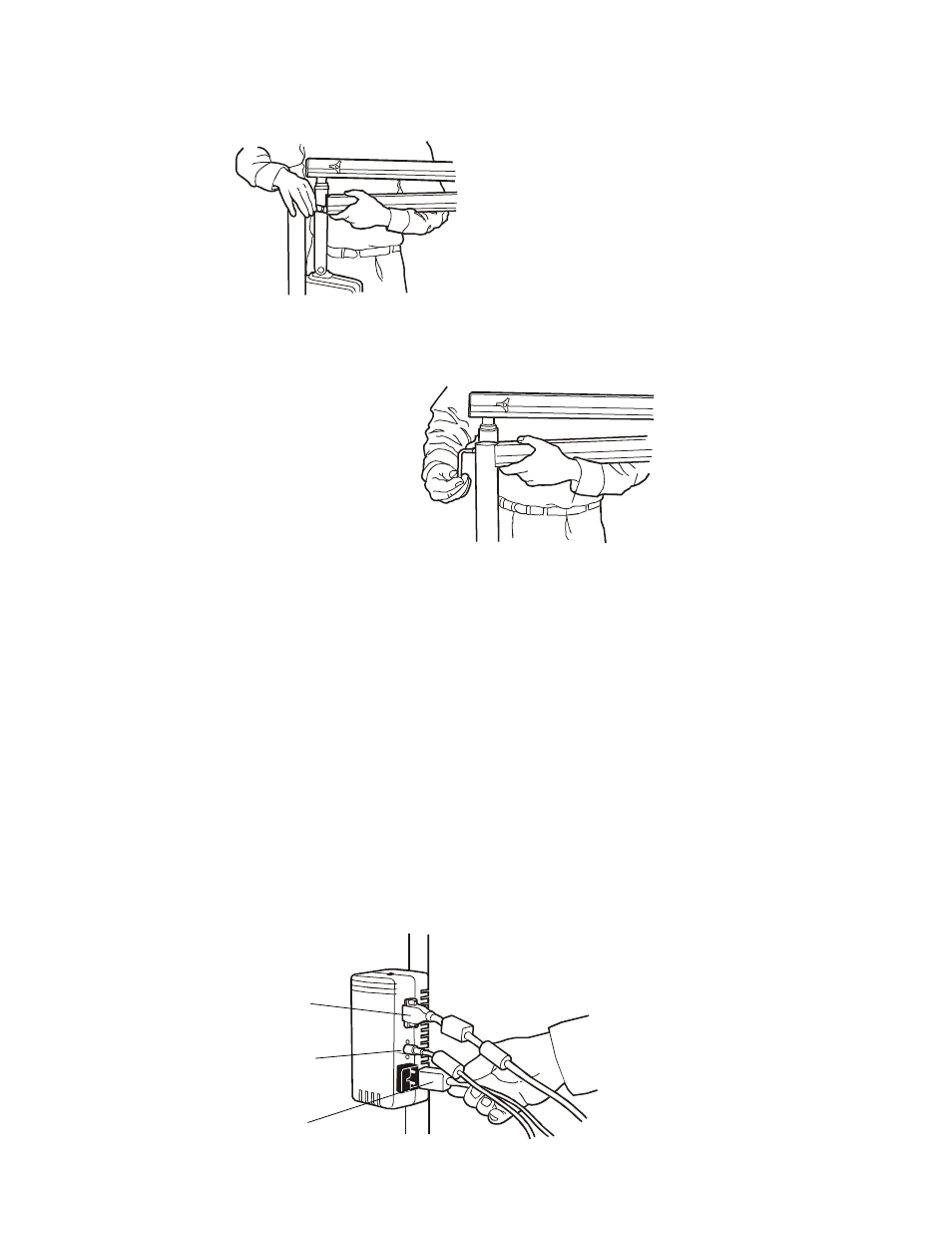

12. Stram bolten godt med den vedlagte sekskantnøgle. Sørg for ikke at klemme nogen
af de elektriske tråde mellem den lodrette stang og kolposkopsamlingens arm.
13. Der henvises til sektionen Opstilling af Videokolposkop i denne vejledning inden brug
af Videokolposkop.
Opstilling af Videokolposkop
1.
Forbind netledningen med stikkontakten i strømforsyningen på Videokolposkop
stativet.
2.
Sæt den anden ende af netledningen i en korrekt jordafledt 110-120 volt
vekselstrømskontakt (220-240 volt, 50 cyklus til internationalt).
3.
Forbind S-video-kablet med S-Video-udgangen på siden af strømforsyningen på
Videokolposkop stativet.
4.
Sæt den anden ende af S-video-kablet i Line A (linje A)-forbinder S-video (Y/C) på
bagsiden af monitoren.
5.
Sæt monitorens stik i en korrekt jordafledt 110-120 volt vekselstrømskontakt
(220–240 volt, 50 cyklus til internationalt).
RS232 udgang
S-video-udgang
Netledning
