Installera videokolpskopet – Welch Allyn Video Colposcope - User Manual User Manual
Page 244
242
Anslutningar och montering
Welch Allyn Videokolposkop

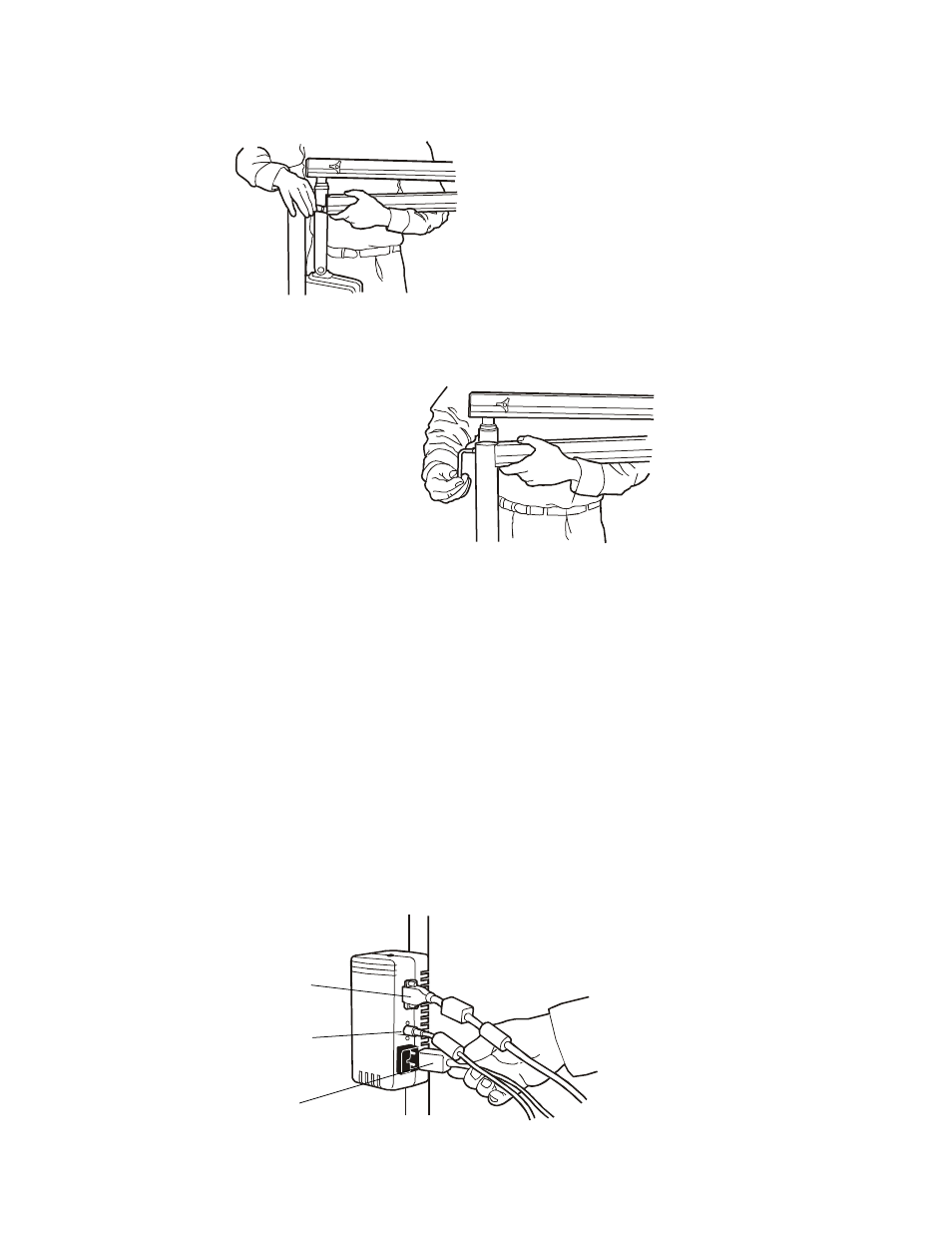

12. Fäst bulten ordentligt med insexnyckeln som medföljer. Se till att elkablarna mellan
den vertikala stången och armen på kolposkopmonteringen inte kläms åt.
13. Läs avsnittet “Installera detta Videokolposkop innan Videokolposkop tas i bruk.
Installera Videokolpskopet
1.
Anslut nätsladden till uttaget på nätaggregatet som finns på stången för
Videokolposkop.
2.
Anslut den andra änden av nätsladden till ett ordentligt jordat 110 – 120 volt vs eluttag
(220 – 240 volt, 50 Hz internationellt).
3.
Anslut s-videokabeln till s-videouttaget som är placerad på nätaggregatets sida på
stativet för Videokolposkop.
4.
Anslut den andra änden på s-videokabeln till Linje A-anslutningen för s-video (Y/C) på
bildskärmens baksida.
5.
Anslut bildskärmen till ett ordentligt jordat 110 – 120 volt vs eluttag (220 – 240 volt,
50 Hz internationellt).
RS232-utgång
S-videoutgång
Nätsladd
