Directions for Use Components 13

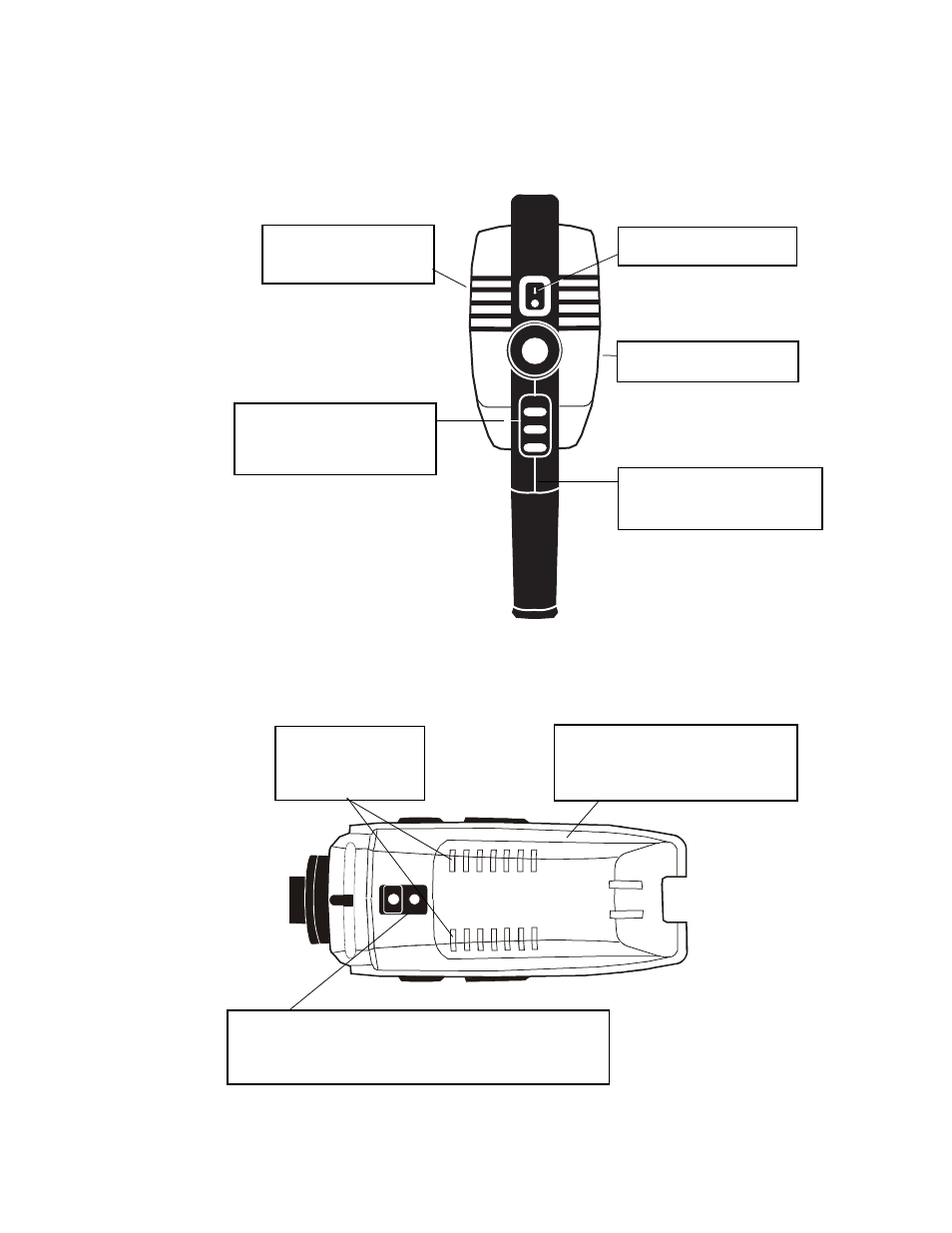

Back View
F
C
V
Attachment knob. Fastens
handle to Video Colposcope.
Video Colposcope handle. For
positioning the colposcope in the
proper up/down, left/right position.
Remote video function buttons.
Allows use of remote printing and
saving functions with appropriate
accessory device.
Ventilation slots. Allow air
to enter and leave unit,
cooling internal components. Power switch. Power control
for the Video Colposcope.
Bottom View
Lamp access door. Removes for lamp
replacement. (Note: If door is not properly
closed, interlock power switches will not
activate and the lamp will not start.)
Mounting piece. Allows the Video Colposcope to attach to the stand.
On the swing arm model, the mounting piece is located at the top of
the colposcope. On the vertical stand model, the mounting piece is
located at the bottom of the colposcope.
Ventilation slots.
Allow air to enter and
leave unit, cooling
internal components.
