2-24 Adit 3000 (Rel. 1.6) and MSR Card (Rel 2.0) GUI
Advanced
IP Address Distribution (DHCP)
Editing DHCP Server Settings
To edit the DHCP server setting for a device:
1. Select Advanced/ IP Address Distribution.
2. Select the interface to configure (Ethernet 1/Ethernet 2).

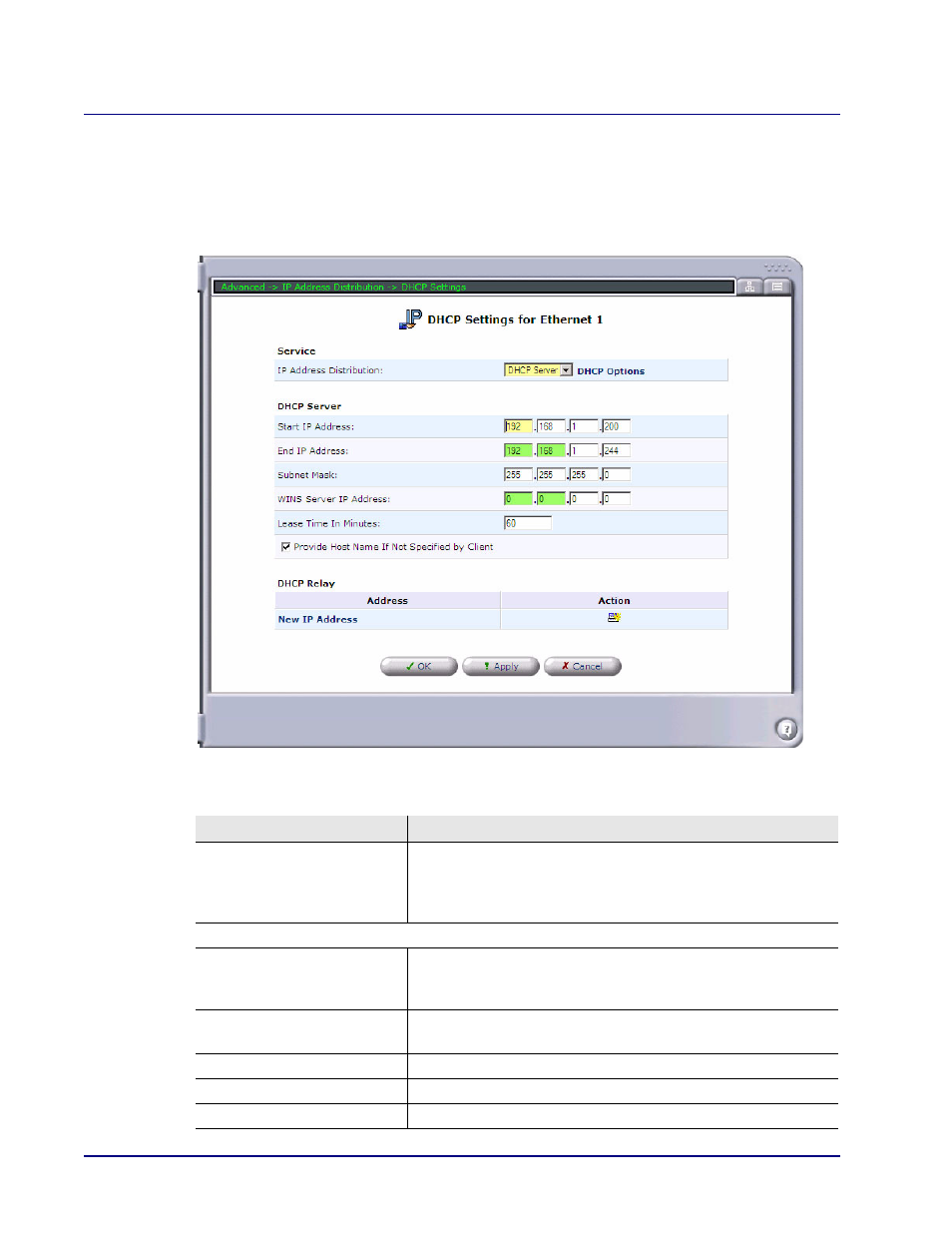

3. Edit the DHCP settings by completing the following fields:
Field Definition
IP Address Distribution Disabled - Disables DHCP.
DHCP Server - Assigns addresses to LAN clients.
DHCP Relay - Responsible for forwarding the requests and
responses negotiating between the DHCP clients and the server.
DHCP Server
Start IP Address
The IP address range defines the number of hosts that may be
connected to the network in this subnet. Start defines the first IP
address that may be assigned in this subnet.
End IP Address End IP address defines the last IP address in the subnet (see
above).
Subnet Mask A mask used to define the subnet an IP address belongs to.
WINS Server IP Address Enter the WINS server IP address.
Lease Time In Minutes The lease duration in minutes.
