8. Automatic - Bolt Direction Determination (Door Handing).

IMPORTANT: DO NOT SKIP THE FOLLOWING STEP.

LOCK WILL NOT BE ABLE TO OPERATE PROPERLY!

● In the

steps below, the SmartCode mechanism

automatically

determines the “door handing” and sets the proper direction for mo-

tor to rotate. The system will drive the bolt several times during this

process.

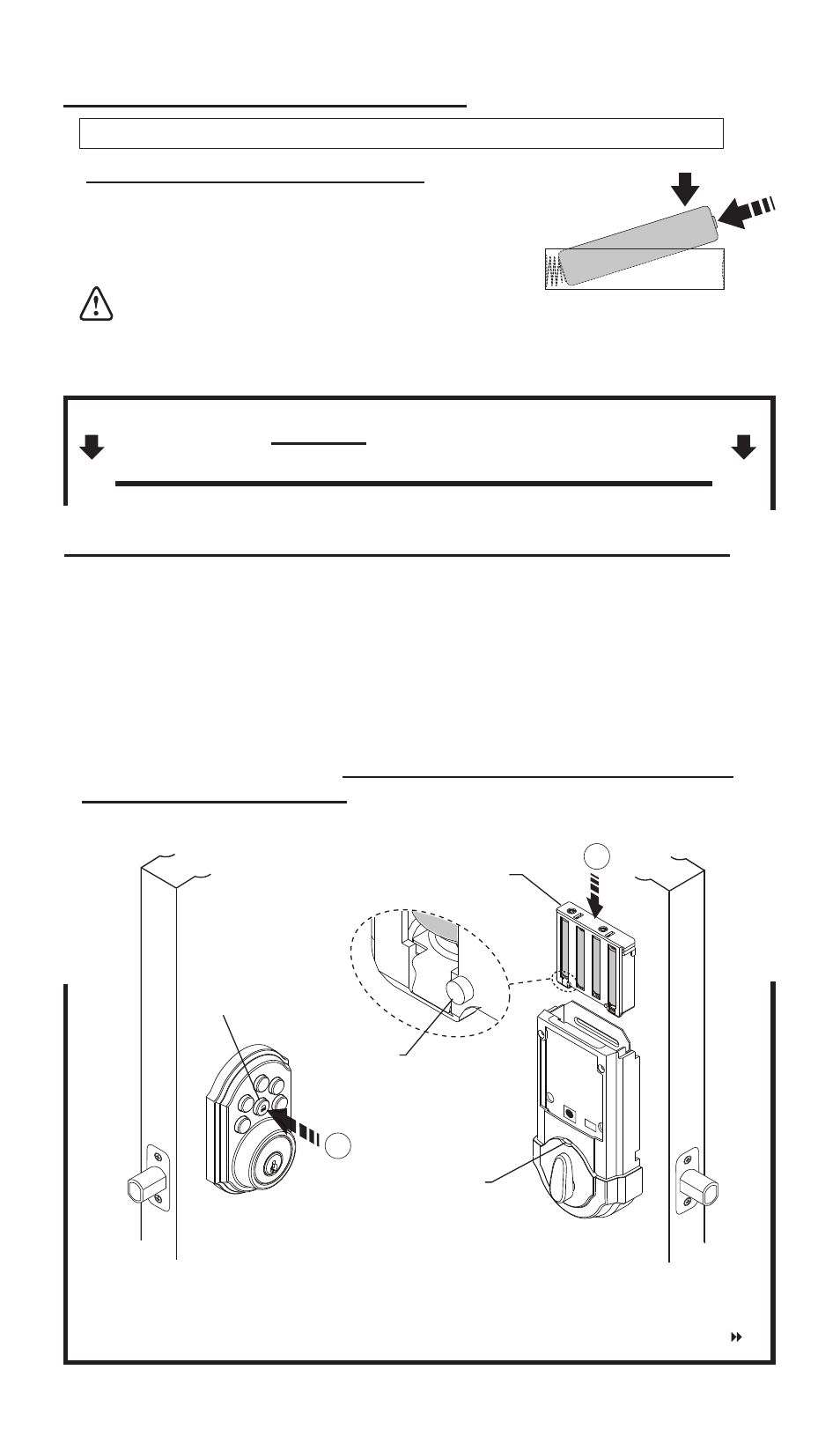

a. Press and hold the “LOCK” button on the exterior keypad, while fully

inserting the battery pack into the interior assembly (the tab on the pack

must face out - see illustration). Hold down lock button until you hear 2

beeps (about 20 seconds).

It is very important that this process is

allowed to finish properly.

7. Install batteries into battery pack.

Alkaline Battery WARNING:

Do not dispose of in fire, recharge,

put in backwards, disassemble, mix with used or other battery types. May

explode or leak and cause personal injury.

a. Install 4 new AA Alkaline batteries.

Install the new batteries as indicated in illustration. Make sure

batteries lie flat in holder.

For best performance,

rechargeable batteries are not recommended.

Note: Do not install battery pack into unit until you start step 8.

LOCK

Button

Tab

Battery Pack

LED

Continued
