Wire Harness
Small
Screws
Torque Blade
Important Note: To prevent damage, always handle the wire harness
at the connector (do not pull wires).
4
Route wires down - avoiding any
excess bulge at curve, which could
interfere with battery pack installation.

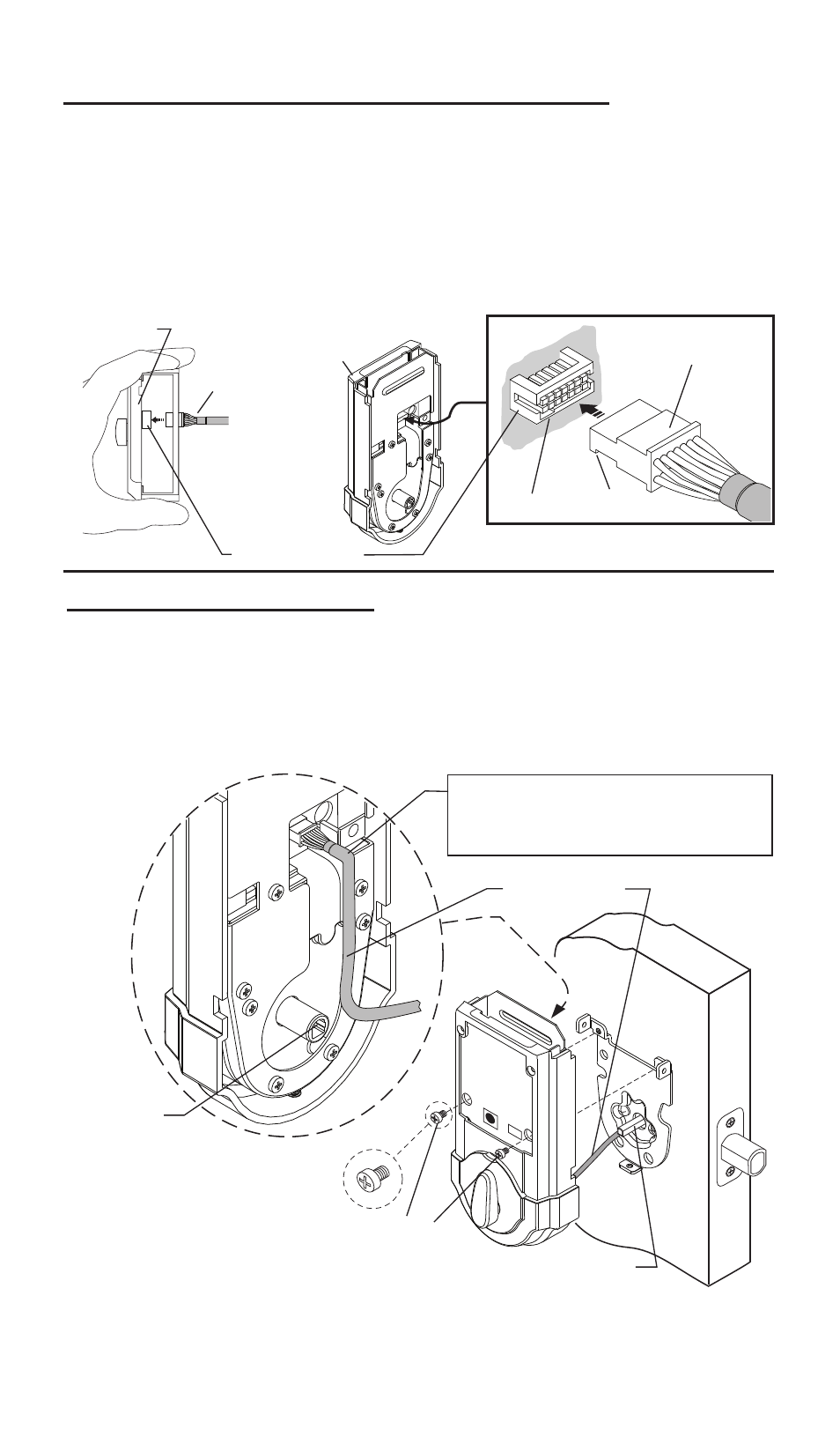

5. Attach the Connector to the Interior Assembly.
Connector Port
Interior
Assembly Connector
Connector
Notch
Slot
a. Making sure wires are clear of pinching and wire harness is routed as
shown, place the interior assembly on door, aligning torque blade inside the
turnpiece shaft.
6. Install Interior Assembly.
Turnpiece
Shaft
b. Once flush on door,
insert and tighten small screws
to secure assembly onto the
mounting plate. Note: To aid insertion of screws,
approach the screw holes with the screw loaded onto the screwdriver.
Note: Turnpiece may be difficult to turn until step 8 “Automatic - Bolt Direc-
tion Determination” is completed.
a. Align the connector with the connector port of the interior assembly,
matching notch to slot.
c. Once aligned, push the connector in firmly to connect.
b. For easier orientation, view the alignment of connection from the top of
the interior assembly.
Top view
