6-9
2000-600-02 Manual Loader
Extension Arm (Accessory)
The 2000-600-02 Manual Loader accepts torque wrenches up to
80" in length. The extension arm is attached as shown in
Figure 6-6. A quick release pin is used at the end of the arm to
capture the reaction pin slide assembly.

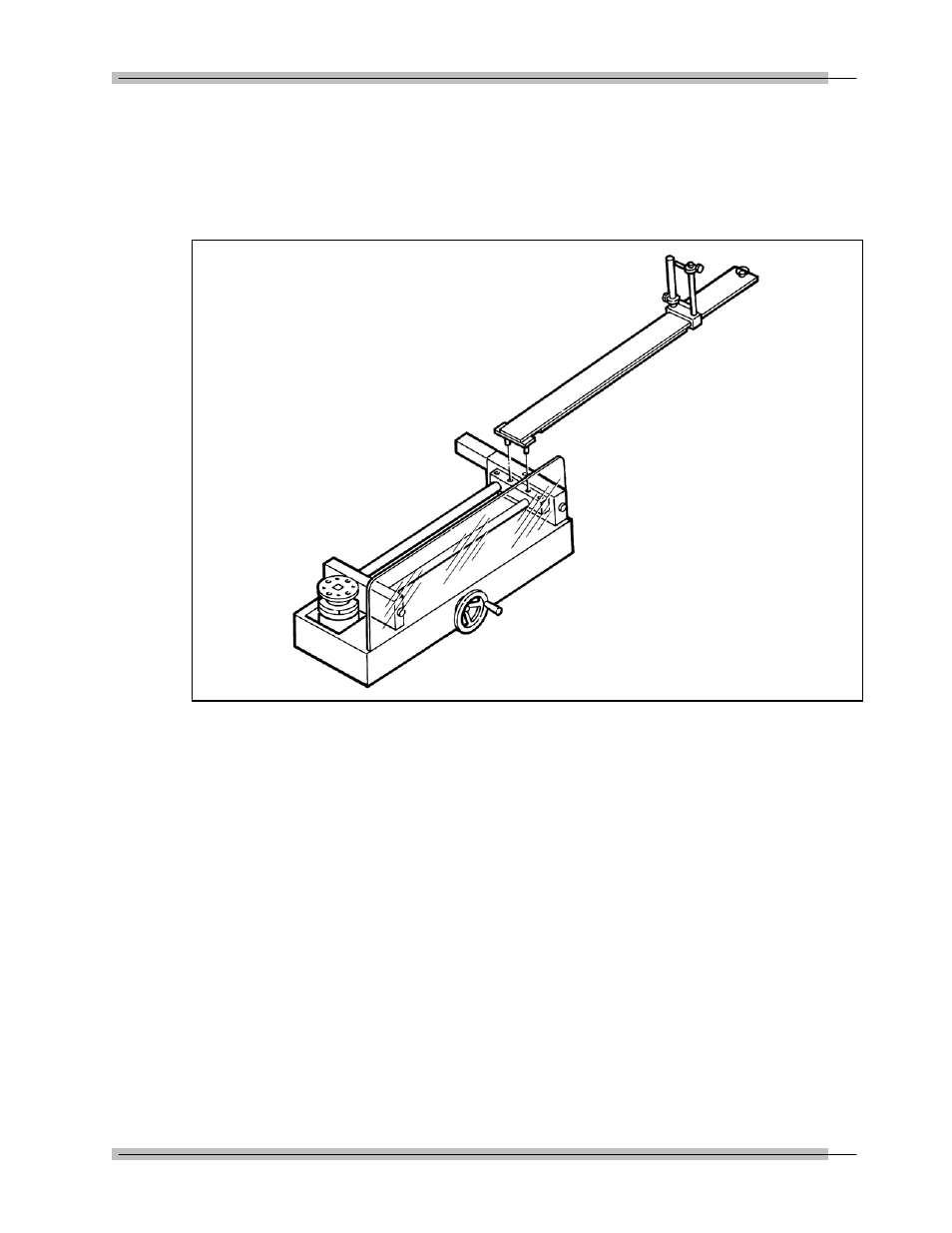

Figure 6-6: 2000-600-02 Manual Loader Extension Arm
