6-4
2000-600-02 Manual Loader
Use the 2000-600-02 Manual Loader to test torque wrenches.
Refer to Figure 6-2 for an exploded view of the Loader and
components.

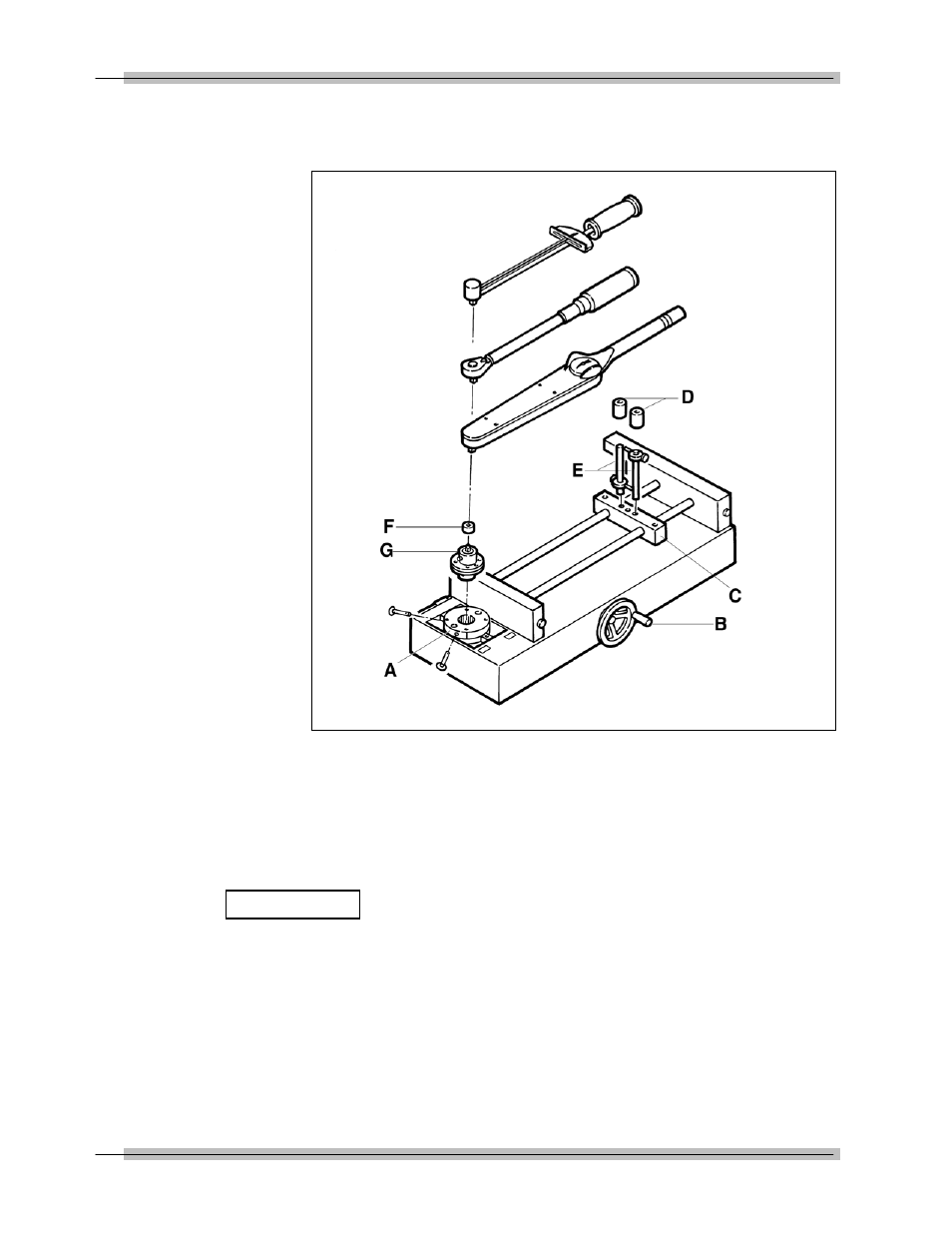

Figure 6-2: 2000-600-02 Manual Loader, Exploded View
A — Transducer Mounting
A transducer facilitates the low-to-high ranges of the wrench
under test. The transducer must be installed into the loader by
lining up the red mark with the "TORQUE" label on the loader
and securing it using two quick release pins.
The connector on single transducer cables contains
the EEPROM calibration memory chip. Never
attempt to remove the connector from the
transducer.
IMPORTANT
B — Hand Crank
Turn hand crank on the loader to apply torque. 2000 ft lbs of
torque are generated with only 8 ft lbs of manual torque applied.
