5-2
Calibration
Mounting Details
Single Transducer Mounting Detail for Calibration
Single transducer calibration requires the use of a reaction
stand and transducer calibration block.
As shown in Figure 5-2, the transducer is secured to the
calibration block with two quick release pins.
• Both pins must be installed for safety and stability of the
mount.
• The white mark on the transducer is aligned in the up
position.

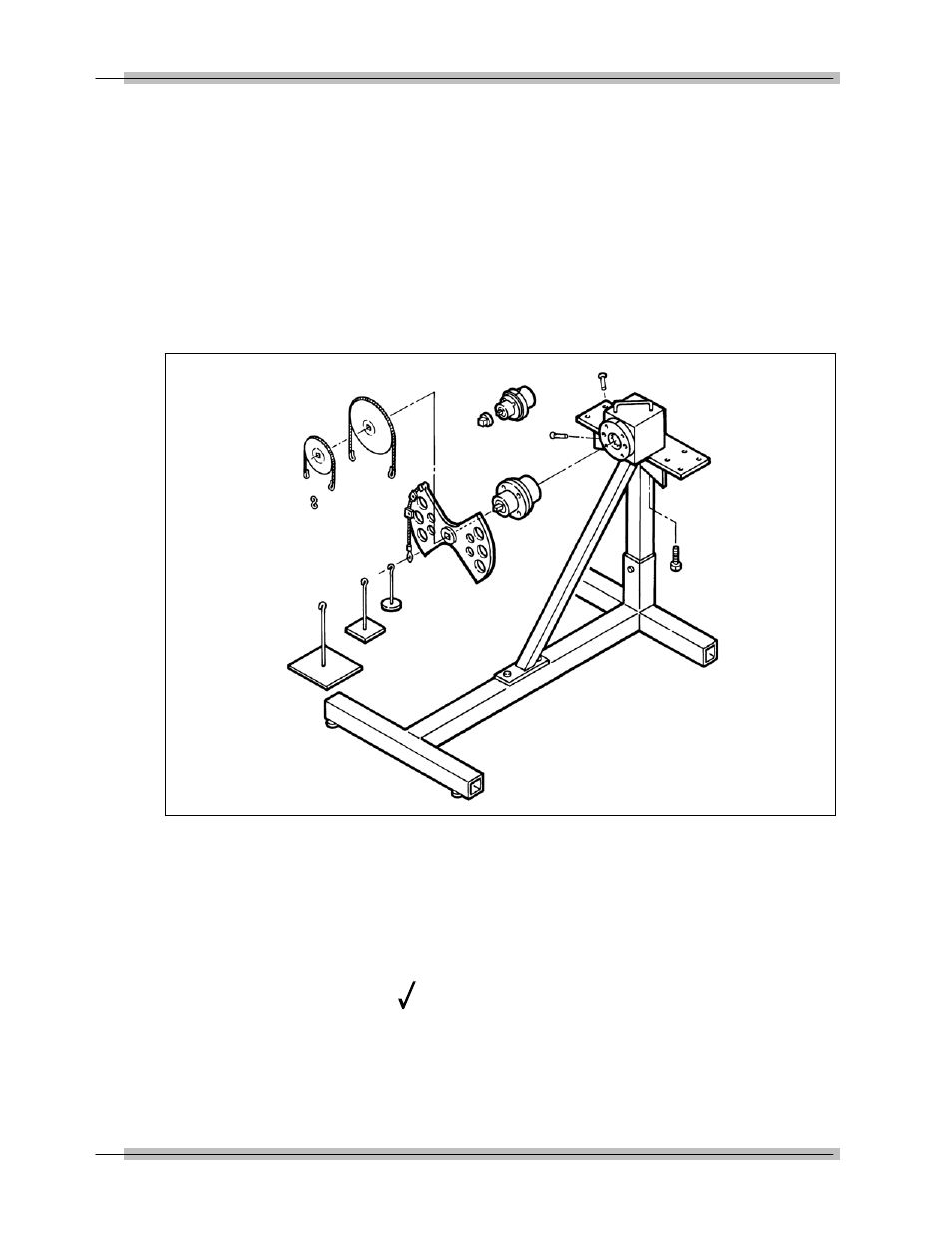

Figure 5-2: Single Low Torque Transducer Mounting Detail
Torque Under 250 ft lb
Mount the calibration block at the center of the stand with two
1/2-13 socket head cap screws with test bars that are 10" or
shorter. Install these screws using the supplied torque wrench
and 3/8-3/8 socket driver adapter. Use this configuration for up
to 250 ft lb of applied torque.
A 1/2" to 3/8" reducer is required when mounting the
10" arm to transducers having 3/8" drives.
