Setup and
Programming
MULTITEST Torque Calibration System Setup

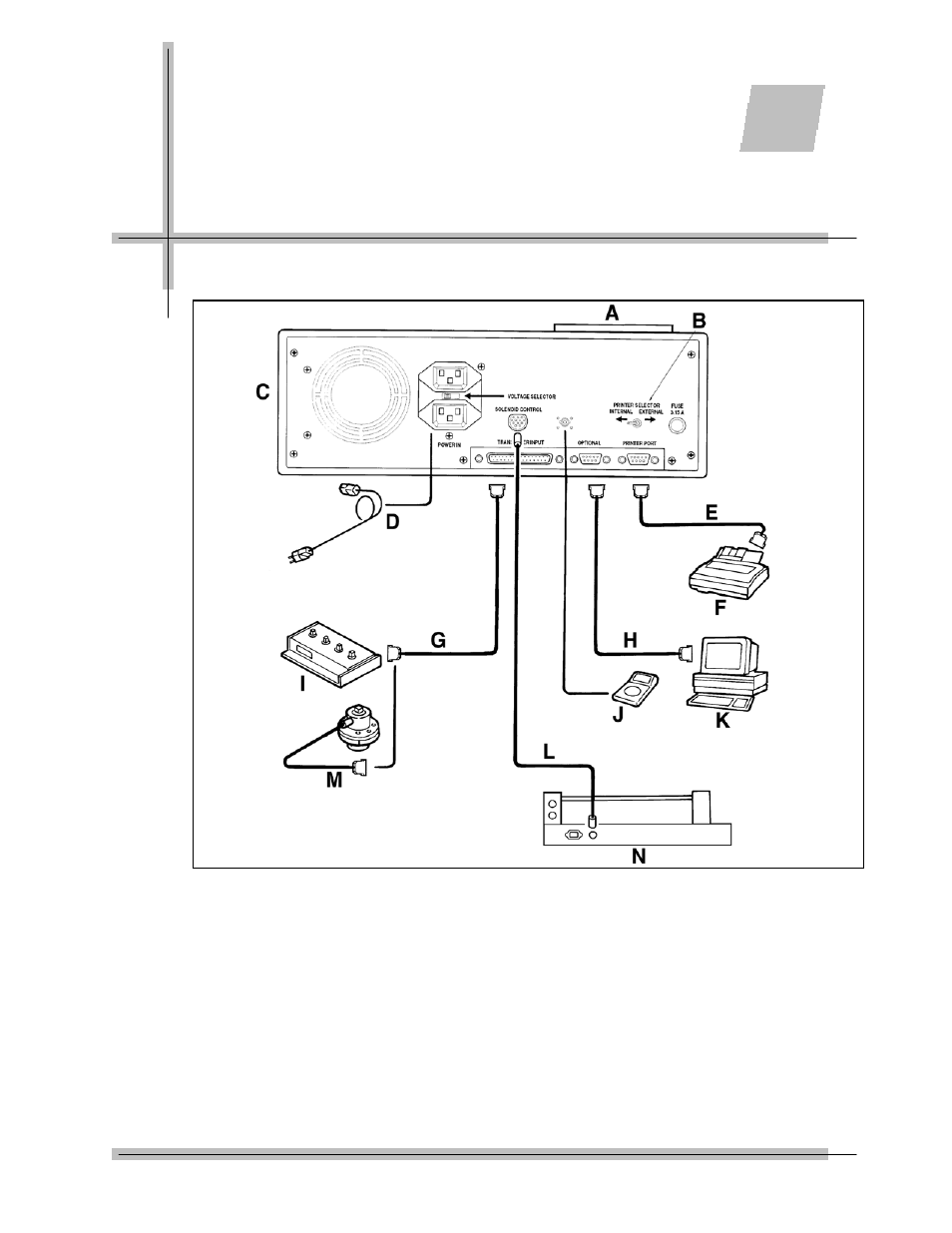

Figure 3-1: MULTITEST Torque Tester/Calibrator/Loader Setup
A – Internal printer
B – Internal/External printer selector switch
C – MULTITEST Indicator rear panel
D – Power cables (110/220 VAC)
E – Printer cable
F – External printer
G – Transducer cable
H – Personal computer cable
I – Smart 4-in-1 transducer
J – Analog device
K – Personal computer
L – Solenoid control cable
M – Smart single transducer
N – MULTITEST Manual Loader
