Functional Description and Specifications
B — Transducer (Accessory)
The loader accepts all MULTITEST series single transducers
directly. Use a 2000-500-02 adaptor kit to mount the optional
2000-400-02 4-in-1 transducer. For additional information refer
to Appendix A–Accessories.
C — Loader
Use the 2000-600-02 Manual Loader for testing and calibrating
all torque wrenches, drivers, torque multipliers, non-impact
pneumatic and electric nut runners. It can also be mounted
on a fixture for testing and calibrating cable tensiometers and
compression or tension gauges. Loader components are:
• Indicator Stand
• Safety Shield
• Hand Crank
• Transducer Mounting
D — Roll Cabinet
The roll cabinet features nine heavy duty drawers with ball
bearing slides, locking wheels and drawer locks. MULTITEST
accessories are stored in the roll cabinet which is fitted with
foam inserts for easy inventory control. The nine drawers are
assigned and arranged as shown in Figure 2-2.

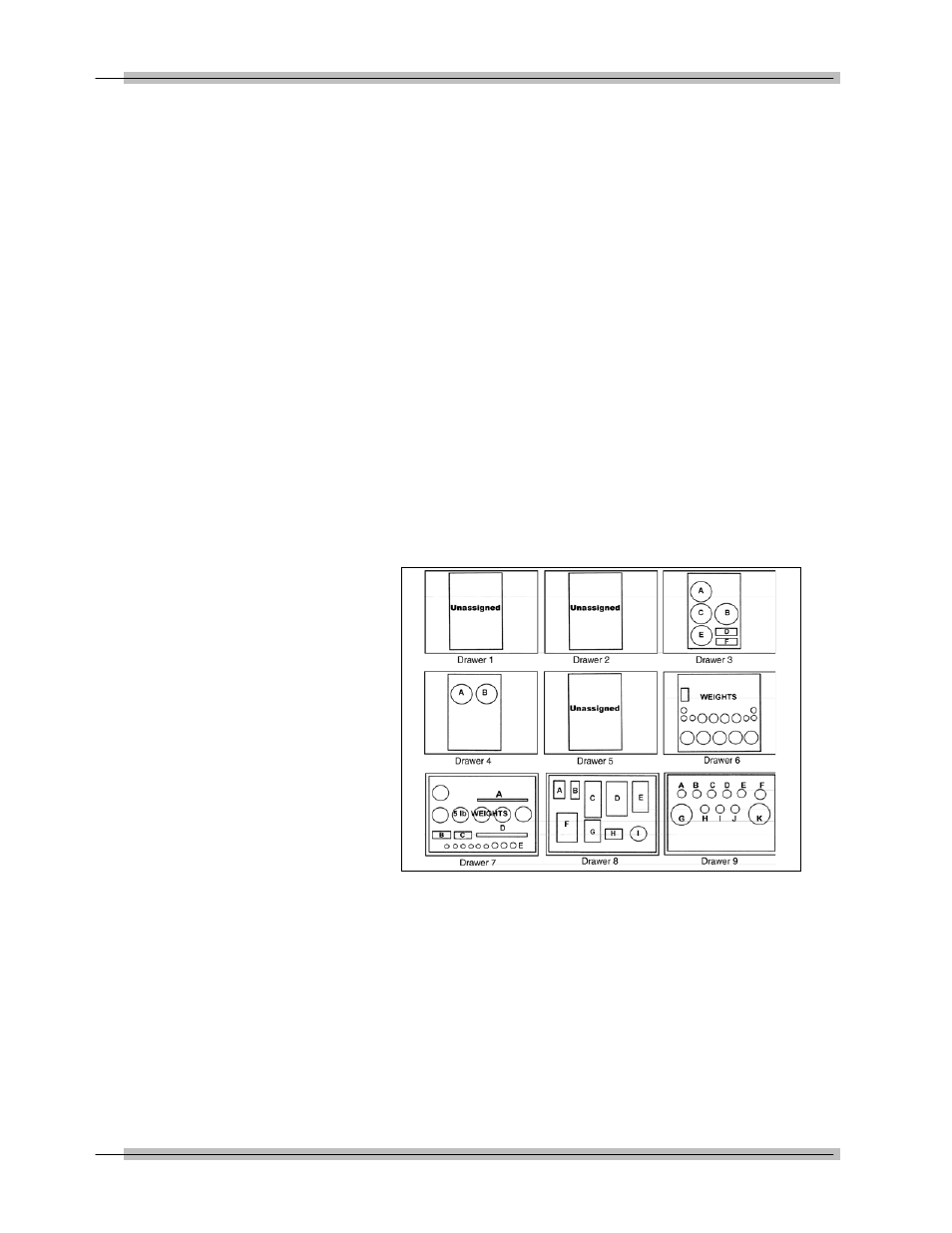

Figure 2-2: Roll Cabinet Drawer Layout
