2000-600-02 Manual Loader
Loader Rear Panel Controls
The 2000-600-02 Manual Loader rear panel is shown in Figure
6-3.

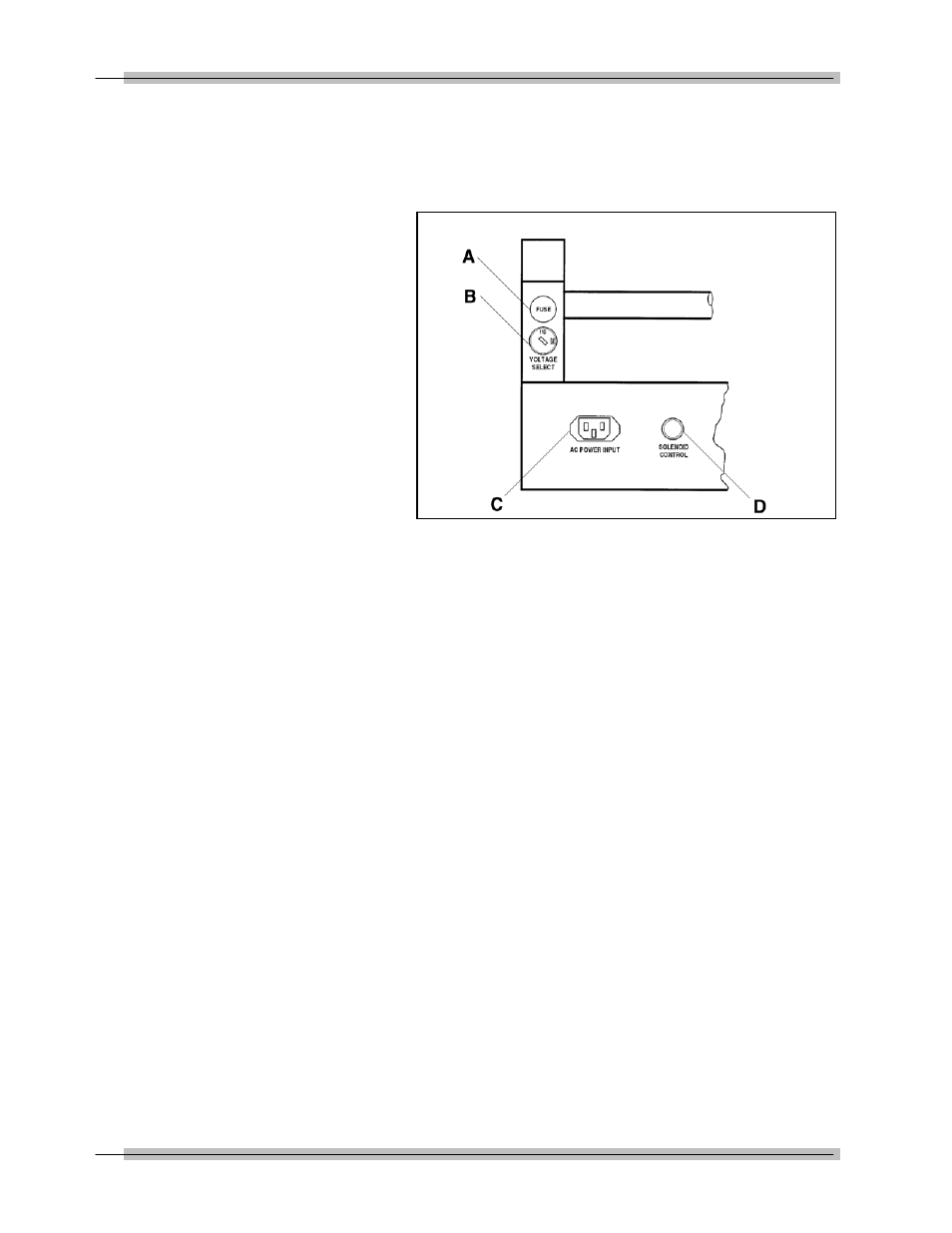

Figure 6-3: 2000-600-02 Manual Loader Rear Panel Controls
A — Fuse
The loader power supply is protected with a 1 amp slo-blow
fuse.
B — Voltage Select
A selector switch allows the loader to use both 110VAC or
220VAC.
C — AC Power Input
The loader uses either 110VAC or 220VAC.
D — Solenoid Control
AC power is applied to the loader to operate a pair of safety
solenoids used to protect the transducers from overloading.
Should the applied torque exceed 110% of the transducer
capacity, in either CW or CCW directions, the indicator
energizes the solenoids to lock the hand crank.
The loader connects to the 2000-610-02 Indicator by the 2000-
117 cable.
