3-14
Setup and Programming
B. Rotate the encoder shaft exactly one complete turn
(360 degrees). The upper right LCD display reads
the total number of counts for the encoder.
C. Push ENTER then CAL to return to the previous
mode.
To enter the resolution of a known encoder:
A. Press up VALUE to select "Encoder: Enter
Resolution" on the LCD display.
B. Press ENTER and, using up and down VALUE and
left and right DIGIT, enter the counts resolution of
the encoder.
C. Push ENTER then CAL to return the previous
mode.
4. Check the encoder count to degrees of rotation
conversion by pressing up VALUE to select "Encoder:
Check Resolution" on the LCD display.
5. Press ENTER and rotate the encoder shaft exactly one
complete turn.

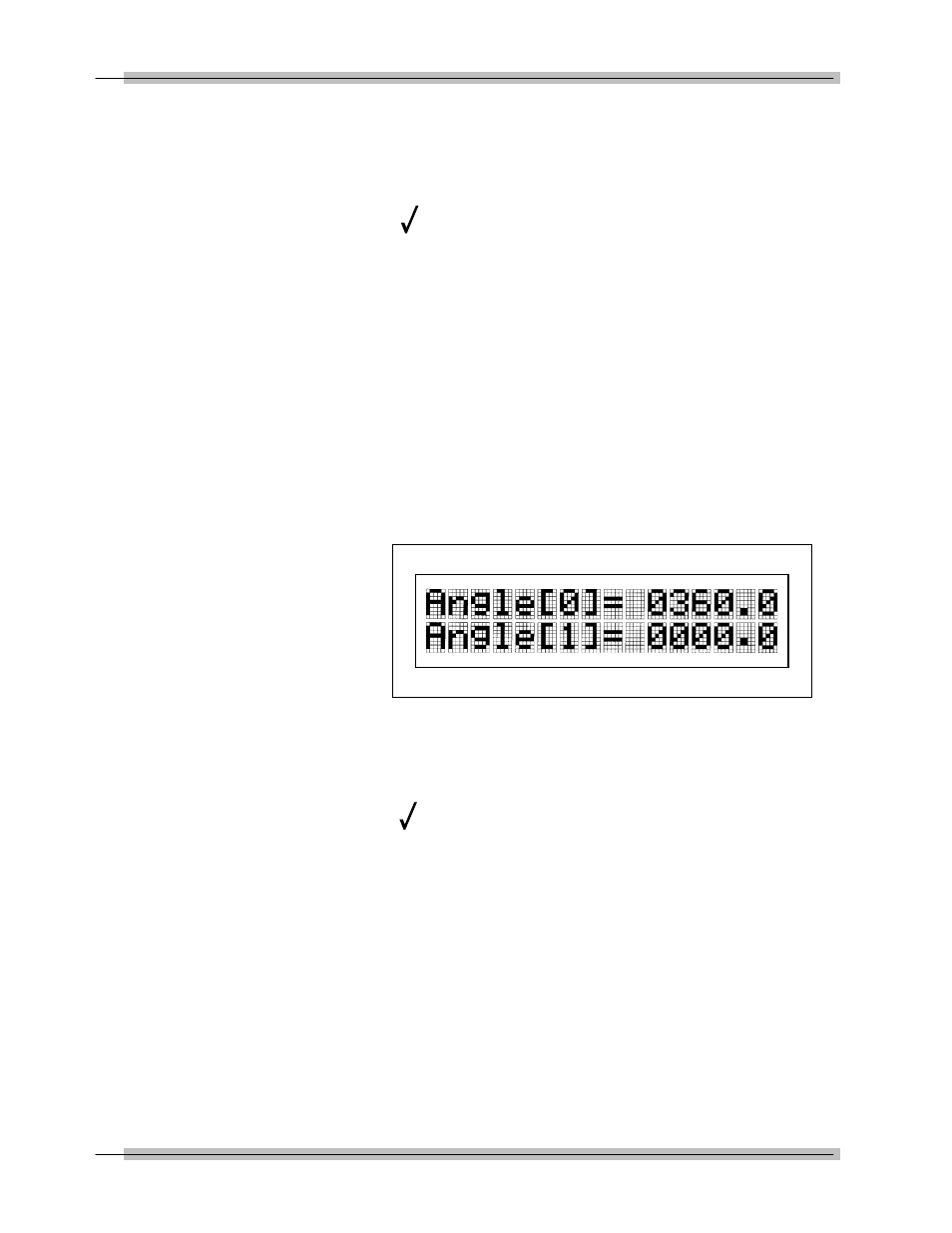

— The LCD display reads:
Angle[0]= 0360.0
Figure 3-7: Encoder Count Display
6. Press ENTER.
7. Press CAL to return to measurements mode.
"Count[1]" and "Angle[1]" in the LCD display are future
options for use with a second encoder channel.
