F — Maximum Range Display

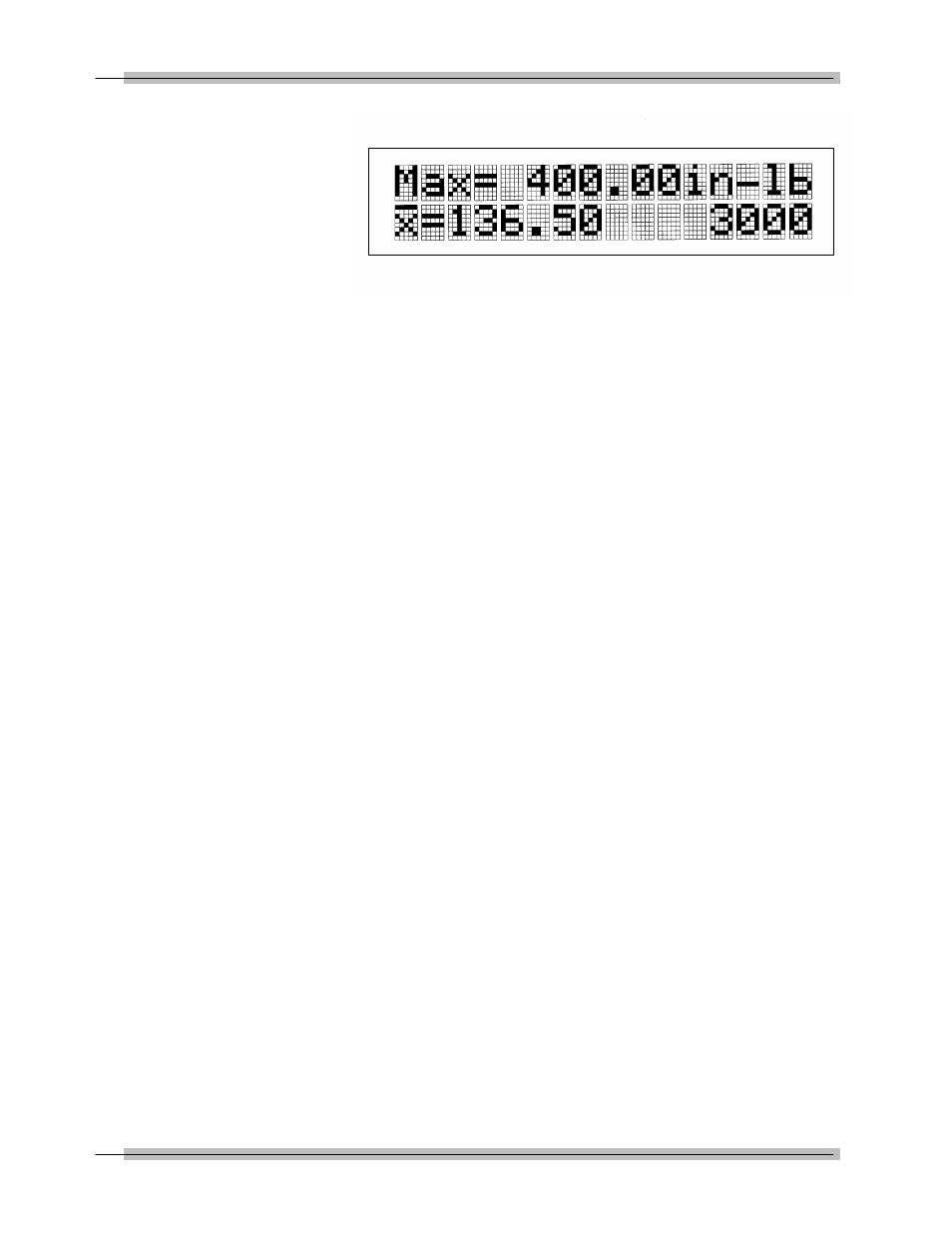

Figure 2-4: Maximum Range Display
Two line by 16 character 5x8 dot-matrix LCD display that
shows:
• Maximum transducer range in the selected UNITS of measure
on the upper line,
• Statistical mean of all measurements in memory on the lower
line, left, and
• The number of the present data memory location on the lower
line, right.
This display also is used to indicate:
• ANGLE, in degrees, CW=(+), CCW=(-) of rotation,
• Prompt CALibration mode,
• Programming of angle encoder,
• Printer protocol,
• RECALL display of data list and STATistical analysis, and
• Set up for:
— DATE/TIME clock,
— AUTO/MANUAL CLEAR, STORE and SEND, and
— HIGH and LOW torque/force limits.
