5-3
Calibration
Torque Over 250 ft lb
For torque calibration above 250 ft lb, the calibration block is
moved to the left for CCW loading and to the right for CW
loading. The torque arm is always extended over the front of
the reaction bracket for both CW and CCW torque applications.
In this configuration, useful up to 2000 ft lb, the calibration block
is secured to the stand using four 3/8-16 socket head cap
screws, each torqued to 45 ft lb. For additional information
refer to Figure 5-3.

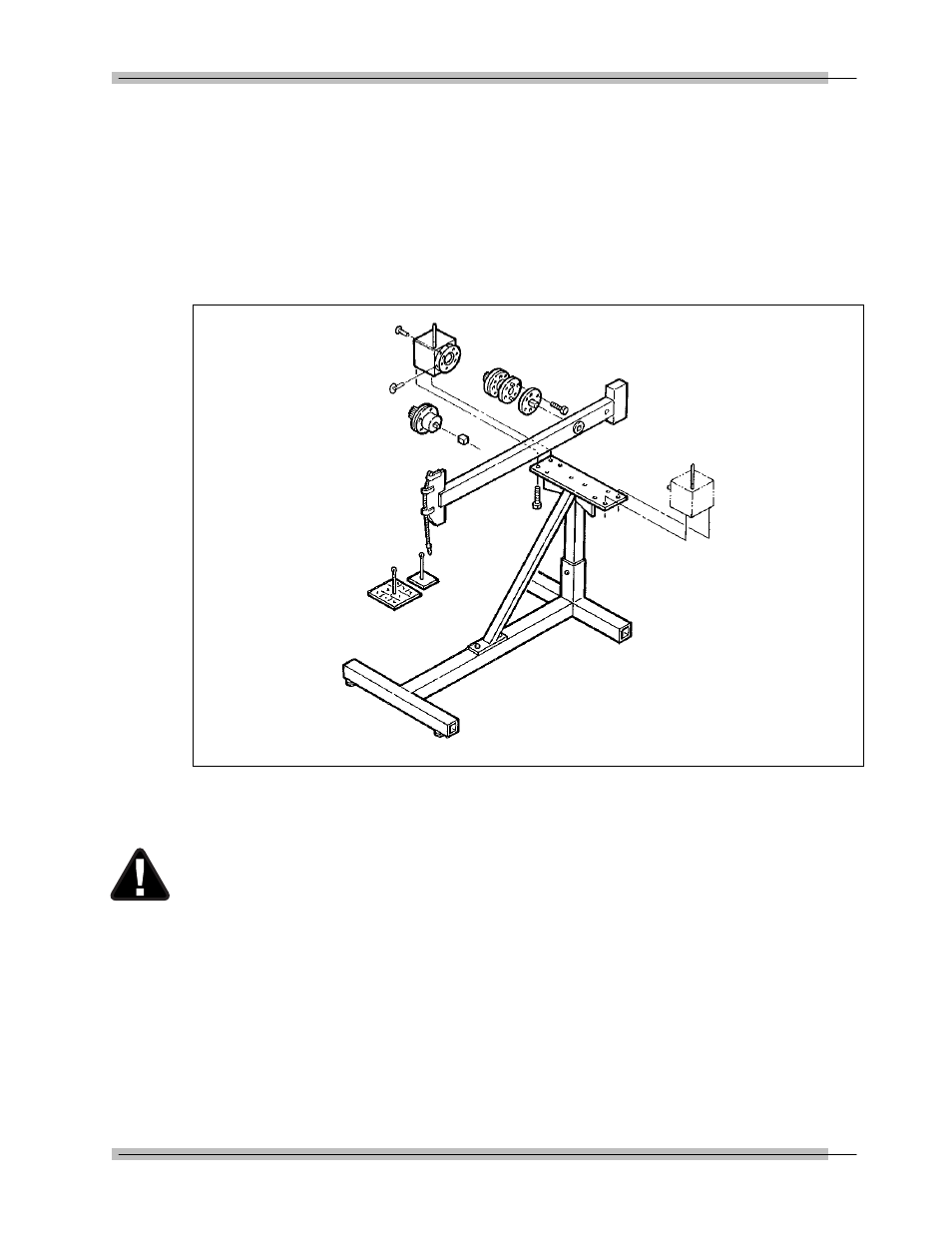

Figure 5-3: Single High Torque Transducer Mounting Detail
The 2000-12-02, 600 ft lb transducer, requires the 1-1/4" to 3/4"
drive reducer, supplied, to couple to the 40" test bar.
Always position the 40" arm over the front of the
stand as shown. Never extend the test arm behind
the stand. The stand will tip over when weights are
applied.
The 40" test arm is coupled to the 2000-13-03, 1000 ft lb, and
2000-14-03, 2000 ft lb transducers using a 1-1/4" drive adaptor
plate.
1. Remove the internal drive adaptor plate and bottom plate
from the transducer using the torque wrench, ratchet
head and 3/8-3/8 hex bit or 3/4" open end adaptor
supplied.
WARNING
